Quoizel WVR8407A Installation Manual

Please go to www.quoizel.com
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.
Light Source: (1) A21 Medium Base Bulb 150W Maximum, Medium Base T9 Vintage Bulb is recommended, bulb not included.
Estimated Assembly Time:
Preparation: Identify and inspect all parts before beginning installation. Check package content list and diagrams below to ensure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact your original place of purchase.
Fixture can only be mounted in the direction indicated on page 2.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
Package Contents
Crossbar
A Assembly
x 1
Alternate
B Mounting screw
x 2
-
STEP 1 Install Glass Panel
A. Insert the Glass Panel (D) into the
slot in the top edge of the cage.
Secure the Glass Panel (D) by
pressing the tabs on to the bottom
edge of the cage onto the bottom
edge of the Glass Panel (D).
Tab
Figure 1
2018 QuoizelInc.
for product cleaning tips. Go to the
20-30 minutes
Fixture Body
C
x 1
Glass Panel
D
x 4
Slot
Tab
D
visit us on-line at www.quoizel.com
Installation Guide #IS-WVR8407A

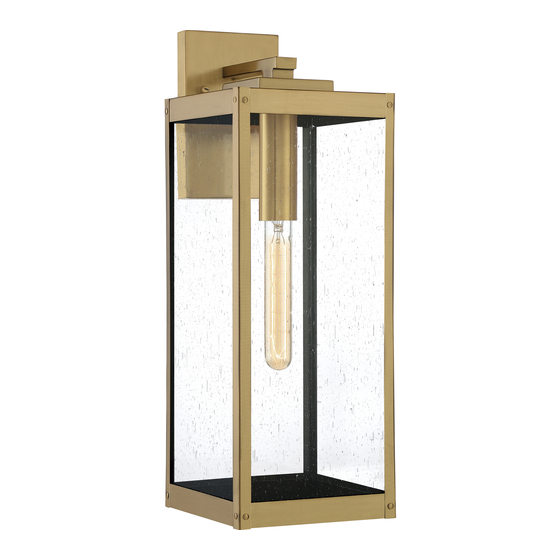

For Style WVR8407A
Care + Maintenance selection.
-
STEP 2 Installing the Crossbar Assembly
A. Pass the supply wires through the Crossbar Assembly (A). Attach
the Crossbar Assembly (A) to the Outlet Box with the head of the
Green Ground Screw facing you. Secure the Crossbar Assembly (A)
with Outlet Box Screws (not included). Tighten until snug
Note: Use the Alternate Shorter Mounting Screw (B) if your
installation requires a shorter mounting screw.
Outlet Box
Mounting Screw
or Alternate Short
Mounting Screw
-
STEP 3 Test Fit the Backplate to the Crossbar Assembly
A. Remove the mounting balls from the Crossbar Assembly (A). Place
the backplate and Fixture Body (C) onto the Crossbar Assembly (A)
and secure with mounting balls. Note: The backplate and Fixture
Body (C) should be snug against the wall and held tight with the
mounting balls. If it is not, adjust the length of the mounting screws
or alternate short mounting screws on the Crossbar Assembly (A) by
unscrewing the preassembled hex nut and lock washer and then
screwing the mounting screws or alternate short mounting screws in
or out of the crossbar until the correct length is achieved. Once the
backplate and Fixture Body (C) is secure, remove the mounting ball
C
and Fixture Body (C).
Mounting Screw
or Alternate Short
Mounting Screw
1of2
Supply Wires
with Ground Wire
A
Outlet Box Screws
(not included)
Figure 2
Backplate
Mounting Ball
A
Hex Nut and
Lock Washer
Figure 3
.
C
ReleasedDate:2018-10-08
