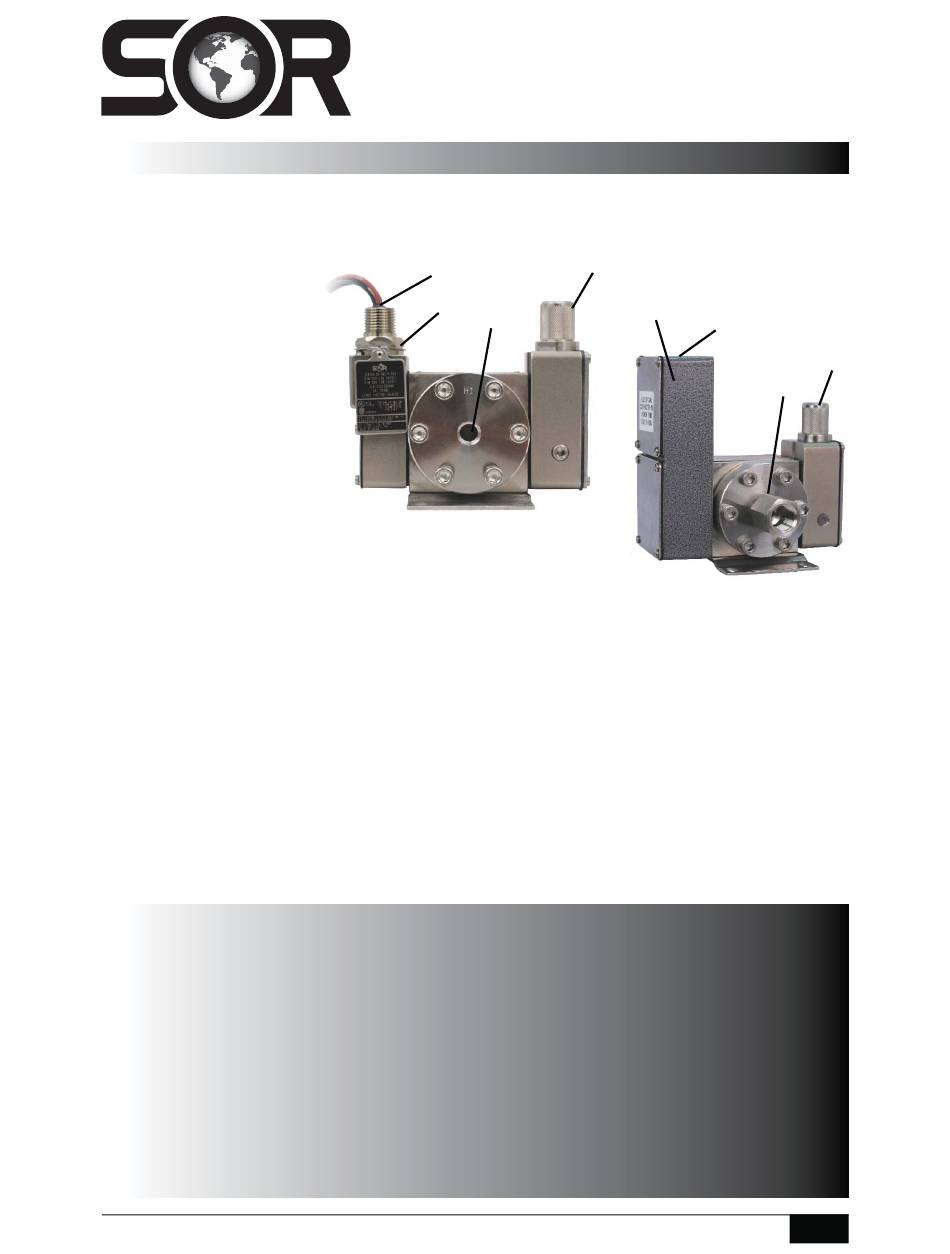

Knurled cap over set
point adjustment
High side process
connection 1/4 NPT(F)
PT(F)
[1/2" NPT(F) optional]
onal]
Hermetically sealed
detecting element
capsule with 18 AWG
AWG
wire leads, 18" (45.7
cm) in length
1/2" NPT(M) electrical
conduit connection
3/4" NPT (F) electrical conduit connection
Weathertight detecting element housing (terminal block under cover)
These instructions provide information for installation, electrical connection, process con-
nection and calibration of 102 Differential Pressure Detectors.
Process pressure is sensed by a piston assembly. The piston responds to differential
pressure and moves a lever connected to a torsionally stiff cross-shaft. One end of the
cross-shaft is connected to a lever that is biased by the range spring. The other end has a
lever that actuates (deactuates) an electrical detecting element.
NOTE: If you suspect that a product is defective, contact the factory or the SOR
in your area for a return authorization number (RMA). This product should only be installed by
trained and competent personnel.
Design and
specifications are
subject to change
without notice.
For latest revision, go to
www.sorfinc.net
Form 420 (01.13) ©SOR Inc.
Dfifferentfial Pressure Detector
Explosion Proof - AD Housing
ATEX Certified EEx d IIC - CL Accessory
d
5.7
rical
Installation .......................................2
SIL Installation ..................................2
Process Connection ............................2
Electrical Connection ...........................2
Special Conditions ..............................3
Calibration .......................................4
Dimensions ......................................5
ATEX General Information .....................6
Declaration of Conformity .....................7
General Instructions
Weathertight - W1 Housing
under cover)
Table of Contents
Registered Quality System to ISO 9001
102
®
Representative
1/8
Advertisement
Table of Contents
Related Manuals for SOR 102
Summary of Contents for SOR 102
-
Page 1: Table Of Contents
The other end has a lever that actuates (deactuates) an electrical detecting element. NOTE: If you suspect that a product is defective, contact the factory or the SOR ®... -
Page 2: Installation
Securely mount a pipe kit bracket or base plate as supplied to horizontal member of the pipe stanchion, channel rack or a flat surface using suitable bolts. The 102 is not position sensitive, and may be mounted in any position. -
Page 3: Special Conditions
C2/NO2/NC2 circuit unless the combination of the two barriers is intrinsically safe and is less than 30V and 1A. NOTE: For IS, there must be no connection to GND if the detector circuit is connected to a shunt zener diode safety barrier. Form 420 (01.13) ©SOR Inc. -
Page 4: Calibration
7. Remove the Allen wrench and replace the weathertight cap. Do not remove other covers or attempt to adjust other parts of the mechanism. All have been precisely positioned at the factory and should not be moved in the fi eld. Form 420 (01.13) ©SOR Inc. -
Page 5: Dimensions
LINEAR = S BOAL DATE 07 JUN 201 92.1 114.3 THIS DRAWING IS THE EXCLUSIVE PROPERTY OF SOR. NO USE WHATSOEVER OF THE INFORMATION CONTAINED 3.63 4.50 HEREON, NOR REPRODUCTION IN WHOLE OR PART MAY BE 11.1 MADE WITHOUT THE EXPRESS WRITTEN PERMISSION OF SOR. -
Page 6: Atex General Information
Amps Volts Amps AF & AG EF & EG JF & JG Thread Form Manufacturer’s Information Registered Trademark ATEX Listing Product Model Serial Number (First Two Information Identification Numbers Indicate Year of Manufacture) Drawing 8304205 Form 420 (01.13) ©SOR Inc. -
Page 7: Declaration Of Conformity
Declaration of Conformity For ATEX Certifi ed Models Form 420 (01.13) ©SOR Inc. - Page 8 Printed in USA www.sorinc.net 14685 West 105th Street, Lenexa, KS 66215 913-888-2630 800-676-6794 USA Fax 913-888-0767 Registered Quality System to ISO 9001 Form 420 (01.13) ©SOR Inc.
