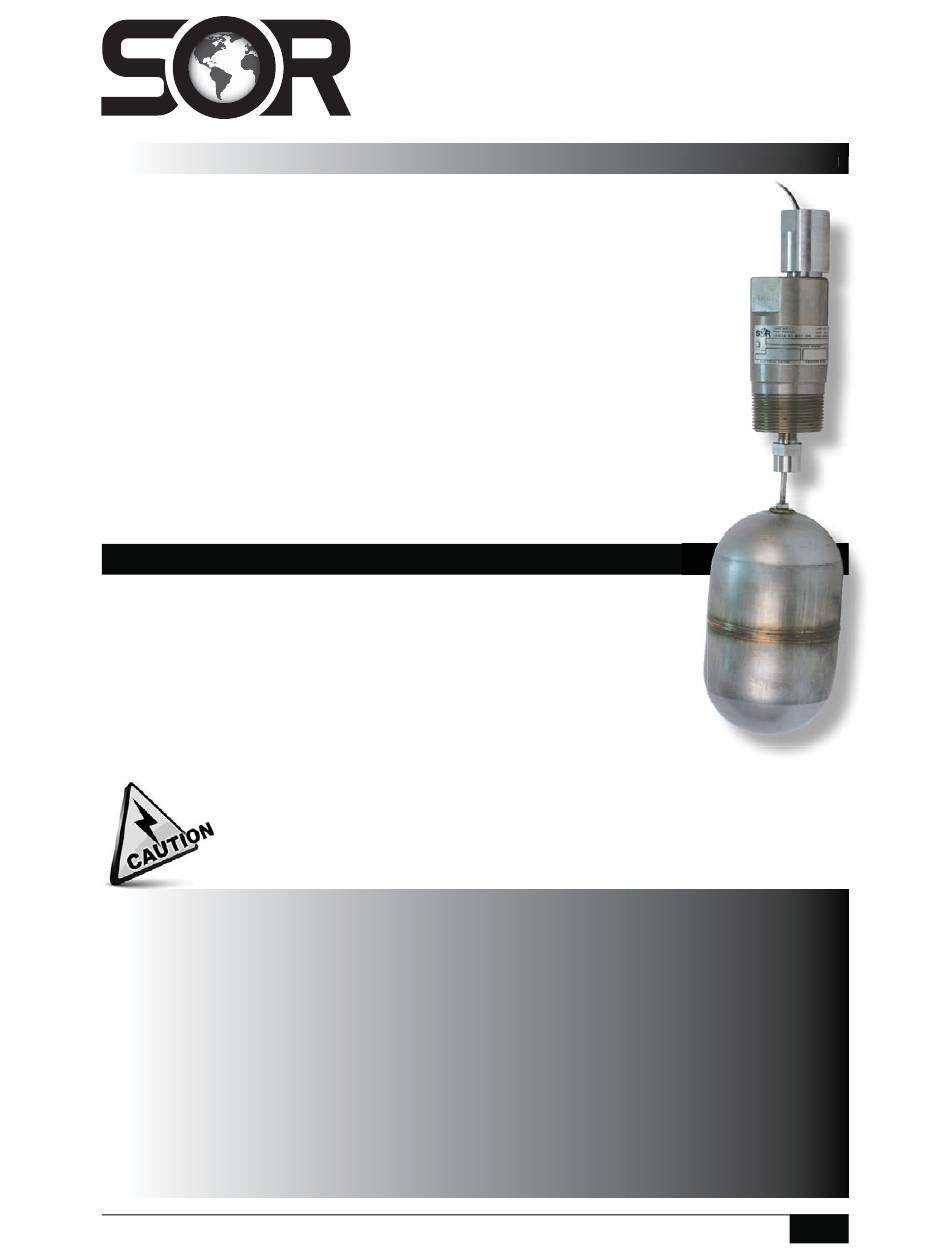

The SOR
1550 Electric Level Detector mounts into the top of a vessel.
Electric detecting action is provided by the float moving a magnet into the
field of a hermetically sealed reed detector.
NOTE: If you suspect that a product is defective, contact the factory or the
SOR Representative in your area for a return authorization number (RMA).
This product should only be installed by trained and competent personnel.
Before Installfing the Level Detector
 Inspect the unit for any shipment damage.
 Check for mechanical clearance of the float. Float must move freely
without binding throughout its stroke.
 Use an acceptable thread compound when installing unit to ensure
a leak-free fit and avoid thread galling.
Electrical Connection
Electrical connection is free wire leads with a 1/2" NPT(F) conduit
connection. Use two wrenches - one to hold hex conduit connection,
the other to tighten conduit fitting. Detecting element is a hermetically
sealed reed detector.
Wiring schematics shown on page 2.
Ensure that all wiring conforms to all applicable local and national electrical
codes and install unit(s) according to relevant national and local safety codes.
Do not exceed catalog stated electrical ratings. Improper current input to
detector will cause permanent damage to contacts.
Design and
specifications are
subject to change
without notice.
For latest revision, go to
www.sorinc.net
Form 865 (01.13) ©SOR Inc.
1550
Electrical Connections ........................ 1
SIL Installation ................................. 2
Wiring ........................................... 2
Float Attachment ............................... 3
Special Conditions ............................. 3
Dimensions ..................................... 4
Declaration of Conformity .................... 6
Troubleshooting ................................ 7
Replacement Parts ............................ 7
Registered Quality System to ISO 9001
Top Mounted
Level Detector
General Instructions
ral Instructions
the
.
.
rica a l
al
1/8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1550 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SOR 1550

  • Page 1 Instructions ® The SOR 1550 Electric Level Detector mounts into the top of a vessel. Electric detecting action is provided by the float moving a magnet into the field of a hermetically sealed reed detector. NOTE: If you suspect that a product is defective, contact the factory or the SOR Representative in your area for a return authorization number (RMA).
  • Page 2 For Type 1550 Level Detectors equipped with DPDT relays, a wiring schematic and pin position schematic is shown below. When the 1550 is actuated, the coil will energize and “make” both NO1 and NO2 while it will “break” NC1 and NC2. This provides a DPDT circuit.
  • Page 3 Special Conditions of Safe Use The permanently attached leads must be suitably protected against mechanical damage and terminated in a suitable junction or terminal facility with a minimum degree of protection of at least IP20.0 Form 865 (01.13) ©SOR Inc.
  • Page 4 Dimensions Dimensions are for reference only. Contact the factory for certified drawings for a particular model number. Linear = mm/inches Drawing 0390428 Form 865 (01.13) ©SOR Inc.
  • Page 5 For ATEX and IECEx Certifi ed Models Manufacturer’s ATEX Listing Product Type Registered Trademark Information Identification Product Model Identification Drawing 0720531 Standards Assessed To: ATEX Certification: EN 60079-0: 2009 & EN 60079-11:2007 IECEx Certification: IEC 60079-0:2004 & IEC 60079-11: 1999 Form 865 (01.13) ©SOR Inc.
  • Page 6 Declaration of Conformity For ATEX Certifi ed Models Form 865 (01.13) ©SOR Inc.
  • Page 7 W1 - SPDT Hermetically Sealed Detector Capsule 3130-107 L9 - SPST Hermetically Sealed Detector Capsule 3130-244 L1 - SPDT Hermetically Sealed Detector Capsule 3101-122 316SS Float. (Consult factory for other materials.) 3130-396 Actuator Arm Replacement Kit Form 865 (01.13) ©SOR Inc.
  • Page 8 Printed in USA www.sorinc.net 14685 West 105th Street, Lenexa, KS 66215  913-888-2630  800-676-6794 USA  Fax 913-888-0767 Registered Quality System to ISO 9001 Form 865 (01.13) ©SOR Inc.
