Operating Instructions for your
2 Way Radio
FRS 220
Nothing comes close to a Cobra™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the microTALK FRS 220 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cobra microTALK FRS 220

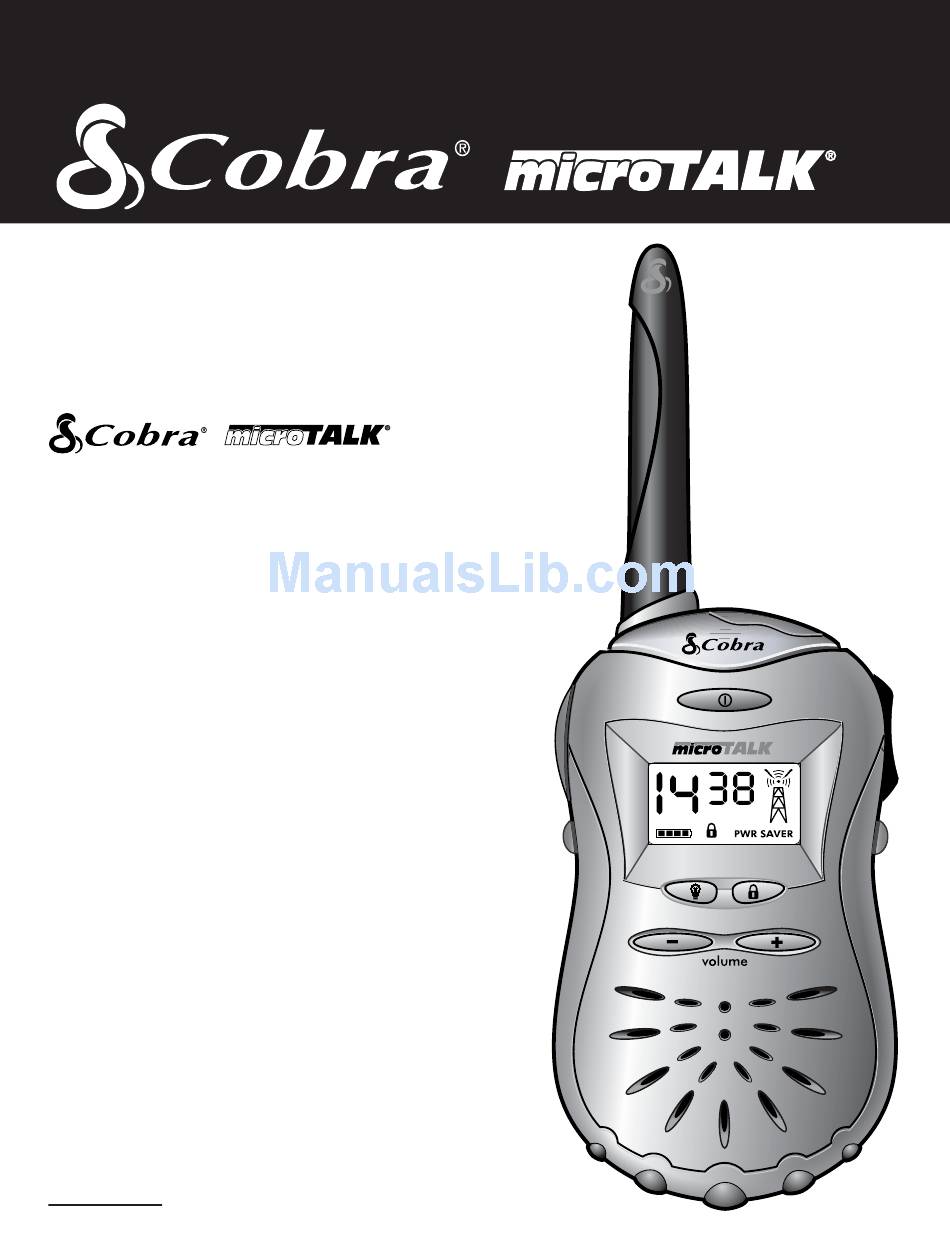

  • Page 1 Operating Instructions for your 2 Way Radio FRS 220 Nothing comes close to a Cobra™...
  • Page 2: Table Of Contents

    Or letting a friend know how to find you in a busy mall? Cobra®’s microTALK® FRS 220 is a great way for friends or family to increase their fun–and safety–by staying in touch while on the go.
  • Page 3: Features

    Talk Button Call Button Channel Button Mode Button Thank you for purchasing the Cobra® FRS 220 2-way Radio. Properly used, this Cobra® product will give you many years of reliable service. Customer Support Should you encounter any problems with the product or not understand its many features, please refer to this owner’s manual.
  • Page 4: Operation

    Operation Battery Install Batteries Installation Note Always use high quality alkaline or NiMH batteries. Incorrect positioning can damage both the batteries and the unit. Only the Cobra® NiMH battery (Part #FA-BP) pack can be recharged. See Accessories on page 19. Charge ports for recharging NiMH (Nickel Metal Hydride) battery pack are...
  • Page 5: Auto Squelch

    Operation Auto Squelch Auto Squelch Your microTALK® is equipped with Auto Squelch, which automatically shuts off weak transmissions and unwanted noise due to terrain conditions or if you have reached your range limit. Maximum Maximum Range Extender Auto squelch can be temporarily removed to allow Range all signals to enter (Maximum Range Extender).
  • Page 6: Auto Battery Save

    Accessories Section on page 19. Auto Battery Auto Battery Save Save Your FRS 220 has a unique circuit designed to extend battery life. If there are no transmissions or Note receptions within 10 seconds, the unit will The Auto Battery Save...
  • Page 7: Talking To Another Party

    Operation Note Your incoming “Call” signal level is dependent on your unit volume setting. Push and release are calling will hear a two second ringing tone. Talking To Talking To Another Party Another Party Note While the TALK button is depressed you cannot receive incoming calls.
  • Page 8: Lock Function

    Operation Lock Function Lock Function The purpose of the LOCK function is to lock most Note buttons to avoid accidental operation. Call button, Range To engage the LOCK function: Extender button and Talk button do not lock and are fully operational while the unit is locked.
  • Page 9: Making Life Easier And Safer

    Making Life Easier and Safer microTALK ® microTALK® 2-Way Radio Can Make Life 2-Way Radio Easier and Safer Can Make As you become familiar with your microTALK® Life Easier Radio you will find many of your own uses for the unit.
  • Page 10: External Microphone/Speaker Jack

    External Microphone/ Speaker Jack External External Microphone/Speaker Jack Microphone/ Your microTALK® 2-Way Radio can be fitted with Speaker Jack an external microphone/speaker, freeing your hands for other tasks. To attach the external microphone/speaker: Note If an External microphone/ speaker is not included with the unit, see Accessories on page 19 for available units.
  • Page 11: Specifications

    Specifications Frequency I. GENERAL SPECIFICATIONS Ranges A. FREQUENCIES CHANNEL ASSIGNMENT Channel Frequency Channel in MHz 462.5625 462.5875 462.6125 462.6375 462.6625 462.6875 462.7125 B. SUBCHANNEL ASSIGNMENTS CTCSS Channel Frequency 67.0 Hz 71.9 Hz 74.4 Hz 77.0 Hz 79.7 Hz 82.5 Hz 85.4 Hz 88.5 Hz 91.5 Hz...
  • Page 12: Limited Two Year Warranty

    Limited Two Year Warranty COBRA® ELECTRONICS CORPORATION warrants that its COBRA® FRS Radios, and the component parts thereof, will be free of defects in workmanship and materials for period of two (2) years from the date of first consumer purchase. This warranty may be enforced by the first consumer purchaser, provided that the product is utilized within the U.S.
  • Page 13: Order Form

    Accessory Order Form Shipping & Handling Amount Shipping/ of Order Handling $25.00 and under $4.75 $25.01 - $40.00 $6.95 $40.01 - $80.00 $9.25 $80.01 - $120.00 $10.25 $120.01 - $160.00 $11.75 $160.01 and up $14.50 For AK, HI and PR please add an additional $15.00 for UPS shipments.
  • Page 14: Nothing Comes Close To A Cobra

    Cobra® Electronics Corporation 6500 West Cortland Street Chicago, IL 60707 USA www.cobra.com If You Think You Need Service For technical assistance, please call our Automated Help Desk which can assist you by answering the most frequently asked questions about Cobra® products. (773) 889-3087 24 hours a day, 7 days a week.
