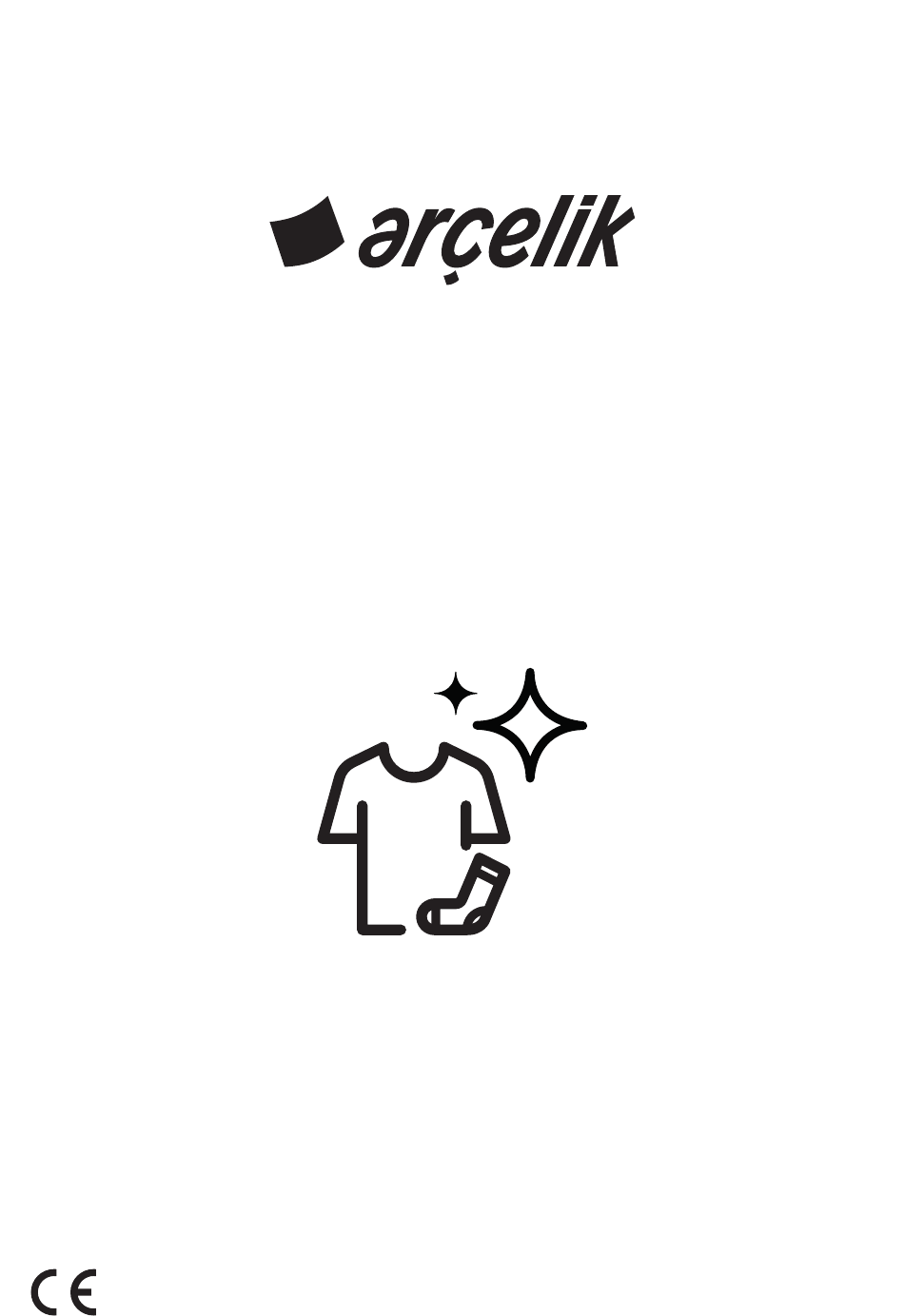

- Page 1 Washing Machine User Manual 9124 N - 9124 N MG Doküman Numarası: 2820530073_EN/ 04-03-22.(9:25)
- Page 2 If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual. You can see the user's manual at www.arcelik.com.tr. Explanation of symbols DANGER! high •...
-
Page 3: Table Of Contents
CONTENTS 1. General safety instructions 1.1 Children's safety ...........................5 1.2 Product safety ..........................6 1.3 Electrical safety..........................6 1.4 Hot surface safety ........................7 1.5 Other ..............................7 2. Instructions for environmental protection 2.1 Compliance with WEEE Directive ..................8 2.2 Disposing of the waste product ................... 8 2.3 Package information ......................... - Page 4 8.4.8 Using softeners............................ 26 8.4.9 Using starch ............................26 8.4.10 Using limescale remover ........................ 26 8.4.11 Using bleaches............................ 26 8.5 Tips for energy and water saving..................27 8.6 Displayed Program Time .......................27 9. Programs and Auxiliary Functions 9.1 Program selection ........................28 9.2 Programmes ..........................29 9.3 Program Table ...........................35 9.4 Auxiliary function selection ....................37...
-
Page 5: General Safety Instructions
1. General safety instructions 1.1 Children's safety • Children under the age of should be kept away unless continuously supervised. • This product can be used by children at and WARNING! above years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are supervised or trained on the safe usage of the product and... -
Page 6: Product Safety
1.2 Product safety • Unplug the product when not in use. • Always have the installation and repairing procedures carried out by the Authorised WARNING! Service Agent. • Do not force open the locked loading door. The door will open immediately after the washing cycle has ended. -
Page 7: Hot Surface Safety
1.4 Hot surface safety • The glass of the loading door gets too hot while washing at high temperatures. Therefore, especially do not allow children touch the glass while washing. WARNING! 1.5 Other • Do not use combustible, flammable and other similar chemicals for product cleaning or other purposes. -
Page 8: Instructions For Environmental Protection
2. Instructions for environmental protection 2.1 Compliance with WEEE Directive This product does not contain harmful and forbidden materials described in the "Regulation on the Control of the Waste Electrical and Electronic Equipment" issued by T.R. Ministry of Environment and Urbanization. It complies with the WEEE Directive. -
Page 9: Intended Use
Following information will help you use the product in an ecological and energy-efficient manner. a) Operate the product in the highest load capacity allowed for the programme you have selected, but do not overload. See, “Programme and consumption table”. b) Follow the recommended temperatures in the programme and consumption table. -

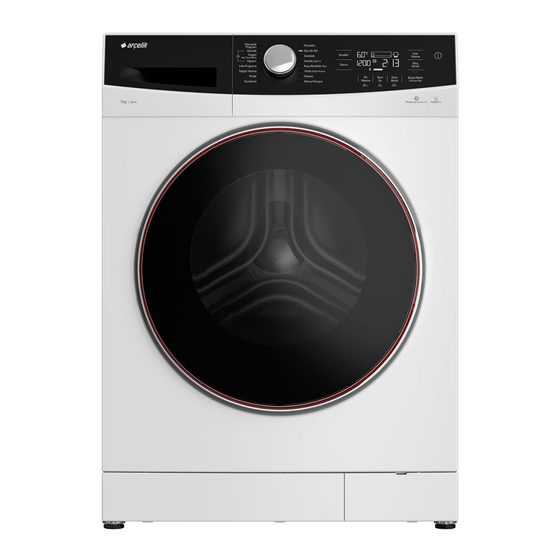

Page 10: Your Product
4. Your product 4.1 Overview 1- Power cable 2- Top panel 3- Control panel 4- Water discharge hose 5- Loading door 6- Filter cap 7- Adjustable feet 8- Detergent drawer EN / 10 Washing Machine / User’s Manual... -
Page 11: Package Contents
4.2 Package contents Power cable Water discharge hose Transportation safety bolts Mains water inlet hose Liquid detergent container User manual Plastic plug group • Figures in this manual are schematic and may not match the product exactly. NOTE EN / 11 Washing Machine / User’s Manual... -
Page 12: Control Panel
4.3 Control panel Programme selection knob 2 - Spin level adjustment button 3 - Temperature level adjustment button 4 - Display 5 - End Time adjustment button 6 - Quick Wash setting button On / Off button 8 - Start / Pause button 9 - Auxiliary function button 3 10 - Auxiliary function button 2 11 - Auxiliary function button 1... -
Page 13: Screenshot
4.4 Screenshot Temperature indicator 2 - Temperature symbol 3 - No water symbol 4 - Programme follow-up indicator 5 - Quick wash indicator 6 - Duration information Auxiliary functions light 1 8 - Auxiliary functions light 2 9 - Delayed start enabled symbol 10 - Door lock is engaged symbol 11 - Child lock enabled symbol 12 - Auxiliary functions light 3... -
Page 14: Technical Specifications
5.Technical specifications Supplier name or trademark Arçelik 9124 N 9124 N MG Model name 7142220100 7153850100 Rated capacity (kg) Maximum spin speed (rpm) 1200 Built-in Hayır Height (cm) Width (cm) Depth (cm) Single Water inlet / Double Water inlet • / - •... -
Page 15: Installation
6. Installation 6.1 Appropriate installation location • Damaged products cause risks for your safety. - Prior to installation, visually check if the product has any defects on it. WARNING! - If so, do not have it installed. • Do not place the product on a floor without sufficient capacity to carry the load. -
Page 16: Removing Packaging Reinforcement
6.2 Removing packaging reinforcement • Seek someone's help for this procedure. - Risk of getting injured. CAUTION! To remove the packaging reinforcement; a) Tilt the product backwards. b) Remove the packaging reinforcement by pulling the ribbon. 6.3 Removing transportation safety bolts •... -
Page 17: Connecting Water Supply
c) After removing bolts, close the holes with plugs provided in the user manual bag. • Keep the transportation safety bolts in a safe place for reuse when the product needs to be moved again in the NOTE future. • Before moving the product, install the transportation safety bolts in reverse order of the disassembly procedure. -
Page 18: Connecting The Water Draining Hose To The Drain
a) Connect the straight end of the mains inlet hose provided with the product to the cold water tap and the warped end to the water inlet on the back of the product as shown in the figure. b) Tighten all hose nuts by hand securely. Never use a tool when tightening the nuts. -
Page 19: Adjusting The Feet
d) To prevent the waste water to go back into the product again and to ensure easy drainage, do not immerse the end of the hose into the waste water or do not insert it into the drain for more than 15 cm. If it is too long, cut it short. -
Page 20: Electrical Connection
a) Loosen the lock nuts on the feet by hand. b) Adjust the feet until the product stands level and balanced. c) Tighten all lock nuts again by hand. 6.7 Electrical connection • Damaged power cables must be replaced by the Authorised Service Agents. -
Page 21: Initial Use
7. Initial use 7.1 Drum cleaning • Apply drum cleaning without any laundry in the product. NOTE a) Use the Drum Cleaning programme. b) Set the temperature to the level recommended on the special drum cleaning agent package which can be provided from Authorised Service Agents. -
Page 22: Preparing To Wash
8. Preparing to wash 8.1 Sorting the laundry a) Sort laundry according to type of fabric, colour, and degree of soiling and allowable water temperature. b) Follow instructions on the garment tags. c) Do not wash colours and whites together. New and dark coloured cottons may release a lot of dye. -
Page 23: Preparing Laundry For Washing
8.2 Preparing laundry for washing a) Remove the metal pieces such as support wire, belt buckle or metal buttons or wash the clothes by putting them in a laundry bag or pillow case. b) Take out all substances in the pockets such as coins, pens and paper clips, and turn pockets inside out before washing. -
Page 24: Detergent, Softener And Other Cleaning Agents
The detergent drawer is composed of three compartments: – (1) for prewash – (2) for main wash – (3) for softener – ( ) in addition, there is a siphon piece in the softener compartment. 8.4.2 Detergent, softener and other cleaning agents a) Add detergent and softener before starting the washing programme. -
Page 25: Adjusting Detergent Amount
8.4.4 Adjusting detergent amount a) The amount of washing detergent to be used depends on the amount of laundry, the degree of soiling and water hardness. b) Do not use amounts exceeding the dosage quantities recommended on the detergent package to avoid excessive foam and poor rinsing. c) Use less detergent for smaller loads, lightly soiled clothes or when using short duration programmes especially in soft water areas. -
Page 26: Using Tablet And Capsule Liquid Detergents
8.4.7 Using tablet and capsule liquid detergents a) If tablet is a capsule with liquid detergent, put it directly into the drum before washing. b) Put tablet detergents into the main wash compartment or directly into the drum before washing. 8.4.8 Using softeners a) Pour the softener into the softener compartment of the detergent drawer. -
Page 27: Tips For Energy And Water Saving
8.5 Tips for energy and water saving Following information will help you use the product in an ecological and energy/water-efficient manner. a) Operate the product in the highest load capacity allowed for the programme you have selected, but do not overload. See, “Programme and consumption table”. -
Page 28: Programs And Auxiliary Functions
9. Programs and Auxiliary Functions 9.1 Program selection • Programmes are limited with the highest spin speed appropriate for that particular type of fabric. NOTE: • When selecting a programme, always consider the type of fabric, colour, degree of soiling and permissible water temperature. -
Page 29: Programmes
9.2 Programmes • You can learn the type of laundry and washing recommendations from clothing labels. NOTE: • Eko 40-60 (Eco 40-60) In the Eco 40-60 programme, you may wash normally soiled cotton laundry that are specified to be washed together at 40°C or 60°C. This programme is the standard test programme according to the EU environmentally friendly design and energy labelling regulations. - Page 30 • Yünlü / Elde Yıkama (Woollens / Hand Wash) Use to wash your woollen/delicate laundry. Select the appropriate temperature complying with the tag of your clothes. It washes your laundry without wearing it out with a very delicate washing motion. Prefer this program to wash your delicate curtains up to 2 kg.
- Page 31 • Sıkma+Pompa (Pump+Drain) Use to drain water inside the product. • Durulama (Rinsing) Use when you want to rinse or starch separately. • Gömlek (Shirts) This program is used to wash cotton, synthetic and synthetic blended shirts together. It has anti-crease feature. In order to help to anti-crease feature, steam is applied at the end of the program.
- Page 32 • Leke Programı (Stain Expert) The machine has a special stain programme which enables the removal of different types of stains in the most effective way. Use this programme only for durable colourfast cotton laundry. Do not wash delicate and pigmenting clothes and laundry in this programme.
- Page 33 Coffee Fruit Juice Ketchup When the “Quick Wash” button is pressed twice Red Wine Coke Coal • Select the stain programme. • Find the stain you want to be cleaned from the group it belongs to and select it by pressing “Quick Wash”...
- Page 34 Use to wash your fiber quilts with machine washable labels. Check that you have loaded the quilt correctly to prevent damage to the machine and the quilt. Remove the quilt cover before loading the quilt to the machine. Load the quilt to the machine after folding it in two. Load the quilt into the machine paying attention to place them in a way that they will not contact the door gasket or the glass.
-
Page 35: Program Table
9.3 Program Table Auxiliary functions Selectable Programme temperature range °C 1200 • • • • Cold-90 2,55 1,80 1200 • • • • Cold-90 Pamuklu 1200 • • • • Cold-90 0,92 1200 • • • • Cold-90 0,55 1200 40-60 40 *** 0,700... - Page 36 • Water and energy consumption may vary subject to the changes in water pressure, water hardness and NOTE: temperature, ambient temperature, type and amount of laundry, selection of auxiliary functions and spin speed, and changes in electric voltage. • You can view the washing duration of the selected program on the product’s screen.
-
Page 37: Auxiliary Function Selection
Consumption Values (EN) 1200 03:48 0,700 Eko 40-60 1200 02:53 0,460 1200 02:53 0,330 Pamuklu 1200 04:00 0,550 Pamuklu 1200 04:00 1,800 Sentetik 1200 02:35 0,830 Hızlı / Hızlı 14 1200 00:28 0,150 The values given for programmes other than the eco 40-60 programme are indicative only. 9.4 Auxiliary function selection •... -
Page 38: Auxiliary Functions
a) Select the desired auxiliary functions before starting the programme. b) The indicator LED of the selected auxiliary function lights up. • After the washing starts, you can select or cancel suitable auxiliary functions to the operating program. The machine NOTE: gives out an audible warning if it comes to a stage where an auxiliary function cannot be selected during washing. -
Page 39: Functions/Programs Selected By Pressing Function Keys 3
9.4.2 Functions/Programs Selected by Pressing Function Keys 3 • Drum Cleaning • This is not a laundry washing programme. This is a machine maintenance programme. • Do not turn this programme on when there is something CAUTION! inside the machine. The machine will automatically detect the load inside and terminate the program. - Page 40 To activate the child lock: a) Hold down 2nd Auxiliary function button for 3 seconds. b) The program on the board counts down as 3-2-1 on the selection screen. c) The “symbol” on the program selection screen of the board turns on. 2 43 To deactivate the child lock: a) Hold down 2nd Auxiliary function button for 3 seconds.
-
Page 41: Program Settings
10. Program Settings 10.1 Temperature selection a) Whenever a new programme is selected, the recommended temperature for the programme selected appears on the temperature indicator. b) Press the Temperature Adjustment button to decrease the temperature. Temperature decreases gradually. c) Once the “Cold” option is selectable, it returns to the beginning when pressed again, and the highest temperature that can be selected according to the program enables. -
Page 42: Quick Wash Setting (Quick Wash)
• Rinse Hold If you are not going to unload your laundry immediately after the programme completes, you can use rinse hold function to keep them in the final rinsing water in order to prevent them from getting wrinkled when there is no water in the machine. -
Page 43: Starting The Program
10.4 Starting the program a) Press the Start / Pause button to start the program. b) The program tracking light turns on indicating that the program has started. 2 45 10.5 Program steps a) When the program starts, the following symbols turn on in the program tracking indicator, respectively. -
Page 44: End Of Program
10.6 End of program a) When the program is completed, the “End” Symbol turns on in the program tracking indicator. 2 45 • The product automatically shuts down if no buttons are pressed for 10 minutes. Display and all indicators are NOTE: turned off. -
Page 45: Program Options
11. Program Options 11.1 End Time Setting • When you activate the End Time function, do not use liquid detergent if there is no liquid container or liquid detergent NOTE: dosing feature. There is the risk of staining of the clothes. •... -
Page 46: Canceling The End Time Setting
Adding laundry during the End Time countdown a) Press the Start / Pause button. b) The laundry loading door opens and the door symbol on the screen turns off. c) Open the laundry loading door and add the laundry. d) Close the laundry loading door. f) Press the Start / Pause button. -
Page 47: Canceling The Program
c) If the water level inside the machine is suitable, the door lock is disabled and you can add laundry by opening the door. When the door lock is disabled, the door lock symbol on the screen turns off. d) After adding laundry, the door is closed and the Start / Pause button is pressed again to continue the washing process. -
Page 48: Additional Properties
12. Additional Properties 12.1 Turning the audible alert on or off a) Press and hold the 1st and 2nd auxiliary function buttons for 3 seconds to turn the audible alert on and off. b) The program on the board counts down as 3-2-1 on the selection screen. -
Page 49: Energy Saving Mode
a) Turn off and unplug the appliance. b) Open the pump filter lid. c) Remove the loading door emergency handle behind the filter cover with a tool. d) Open the loading door by pulling the loading door emergency handle downwards. e) Try to pull the handle downwards again if the loading door is not opened. -
Page 50: Maintenance And Cleaning
13. Maintenance and cleaning 13.1 Cleaning the detergent drawer • Clean the detergent drawer at regular intervals (every 4-5 washing cycles) as shown below in order to prevent NOTE accumulation of powder detergent in time. • If more than normal amount of water and softener mixture starts to gather in the softener compartment, the siphon must be cleaned. -
Page 51: Cleaning The Water Intake Filters
13.4 Cleaning the water intake filters There is a filter at the end of each water intake valve at the rear of the product and also at the end of each water intake hose where they are connected to the tap. These filters prevent foreign substances and dirt in the water to enter the product. -
Page 52: Cleaning Dirty Filters
13.5.1 Cleaning dirty filters • Temperature of the water inside the product may rise up to 90 ºC. To avoid the risk of scalding, clean the filter after the water inside the product has cooled down. CAUTION! a) Unplug the product. b) Open the filter cap. -
Page 53: Troubleshooting
14. Troubleshooting Problem Cause Solution Programs do not Start / Pause / Cancel button is • Press Start / Pause / Cancel button. not pressed. start after the It may be difficult to close • Reduce the amount of laundry and make loading door is sure that the loading door is closed the loading door in case of... - Page 54 Problem Cause Solution Loading door cannot Loading door lock is activated • Drain the water by running the Pump or Spin programme. because of the water level in be opened. the product. Product is heating up the water • Wait until the programme completes. or it is at the spinning cycle.
- Page 55 Problem Cause Solution Product does not There is unbalanced load in the • Automatic unbalanced load detection system is activated due to the unbalanced product. switch to spinning distribution of the laundry in the product. step. (*) The product will not spin if •...
- Page 56 Problem Cause Solution Colour of the clothes Excessive laundry was loaded in. • Do not load the product in excess. faded. (**) Detergent in use is damp. • Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures.
- Page 57 Problem Cause Solution Detergent residue Detergent was put in wet • Dry the detergent drawer before putting in detergent. drawer. in the detergent drawer. (**) Detergent has gotten damp. • Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures.
