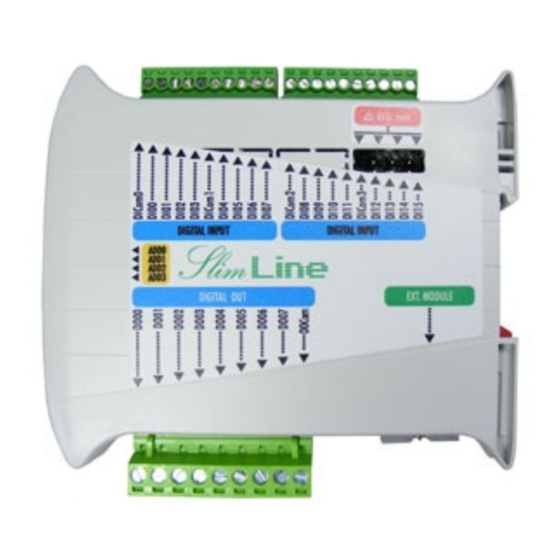

Elsist SlimLine PCB129 000 Series Hardware Manual

Input Digitali
1
P1
Digital Input
10
+/- +/-
-/+ -/+
10 9 8 7 6 5 4 3 2 1
Stato Modulo I/O e indirizzi
5
Module I/O Status and Address
Module Status
LED Function
STS Reg. blink= Mod OK
DIXX Input XX Status
DOXX Out XX Status
ON
Module Address
OFF OFF OFF OFF 0
ON OFF OFF OFF 1
OFF ON OFF OFF 2
ON ON OFF OFF 3
OFF OFF ON OFF 4
ON OFF ON OFF 5
OFF ON ON OFF 6
ON ON ON OFF 7
OFF OFF OFF ON 8
ON ON ON ON 15
Uscite Digitali
7
Digital Output
1 2 3 4 5 6 7 8
ATTENZIONE! Su versione SSR usare SOLO alimentazione in AC
WARNING! On SSR version apply ONLY AC supply.
P2
1 10 1
+/- +
-/+ - Zero
10 9 8 7 6 5 4
High-Speed inputs – Ingressi veloci
1 9
P5
9
~ _
LK1-4: to plug for 5V operation
Gate A B
WARNING! Do not apply more than 6Vdc on input
3 2 1 set for 5V operation.
LK1-4: Inserire per funzionamento ingresso a 5V
ATTENZIONE! Non applicare tensioni maggiori di
6Vdc sugli ingressi settati per funzionamento a 5V.
Identificazione prodotto
6
Product identification
Code: PCB129*000
Serial Nr:
Collegamento moduli di estensione
10
Extension modules connection
Bus di estensione
9
Extension bus
9 1
10 2
P6
BUS I 2 C (P6)
Pin Signal Pin Signal
1 +5Vdc 6 GND
2 +5Vdc 7 SCL
3 +5V (Aux) 8 GND
4 +5V (Aux) 9 SDA
5 RDY-N 10 GND
Dimensioni
4
Dimensions
PCB129**00
LBL052E000
Livello modulo
Module release
00514
Relay = 0
SSR = 1
PWR
RUN
RDY
22,5mm
119mm
SlimLine 16+8
SlimLine 16+8
digital I/O
digital I/O
Module
Module
Hardware
Hardware
Manual
Manual
MNL157B100
