Elsist SlimLine PCB124B010 Hardware Manual

Input Digitali
1
P2
Digital Input
10 1
+/- +/-
-/+ -/+
10 9 8 7 6 5 4 3 2
Stato Modulo I/O e indirizzi
5
Module I/O Status and Address
Module Status
LED Function
STS Reg. blink= Mod OK
DIXX Input XX Status
DOXX Out XX Status
ON
Module Address
OFF OFF OFF OFF 0
ON OFF OFF OFF 1
OFF ON OFF OFF 2
ON ON OFF OFF 3
OFF OFF ON OFF 4
ON OFF ON OFF 5
OFF ON ON OFF 6
ON ON ON OFF 7
OFF OFF OFF ON 8
ON ON ON ON 15
Uscite Digitali
7
Digital Output
1 10
P5
Control Logic
1 2 3 4 5 6 7
+
-
PCB124*010 Only
P1
Solo PCB124*010
10 1
A
+/- +
-/+ -
Zero
1 10 9 8 7 6 5 4
High-Speed inputs – Ingressi veloci
8 9 10
CH1
B
CH0
LK12-15: to plug for 5V operation
Gate A B WARNING! Do not apply more than 6Vdc on input
set for 5V operation.
3 2 1
LK12-15: Inserire per funzionamento ingresso a 5V
ATTENZIONE! Non applicare tensioni maggiori di
6Vdc sugli ingressi settati per funzionamento a 5V.
Identificazione prodotto
6
Product identification

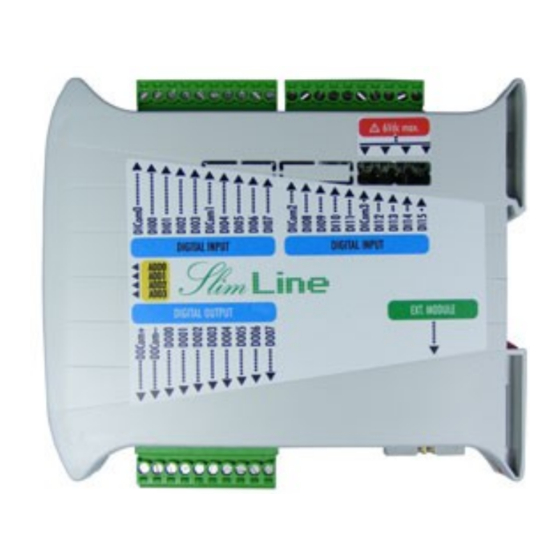

Code: PCB124B010
Serial Nr:
Collegamento moduli di estensione
10
Extension modules connection
Bus di estensione
9
Extension bus
9 1
10 2
P6
BUS I 2 C (P6)
Pin Signal Pin Signal
1 +5Vdc 6 GND
2 +5Vdc 7 SCL
3 +5V (Aux) 8 GND
4 +5V (Aux) 9 SDA
5 RDY-N 10 GND
Dimensioni
4
Dimensions
PCB124*0*0
LB L052E 000
Livello modulo
Module release
16In 8Out version = 0
00325
Base = 0
Adv. counter/enc. = 1
PWR
RUN
RDY
22,5mm
119mm
SlimLine
SlimLine
Static I/O
Static I/O
Module
Module
Hardware
Hardware
Manual
Manual
Mnl154c100
Via G. Brodolini, 15 (Z.I.) 15033 CASALE M.TO (AL) ITALY
Phone +39-0142-451987 Fax +39-0142-451988
Internet: http://www.elsist.it email: elsist@elsist.it
