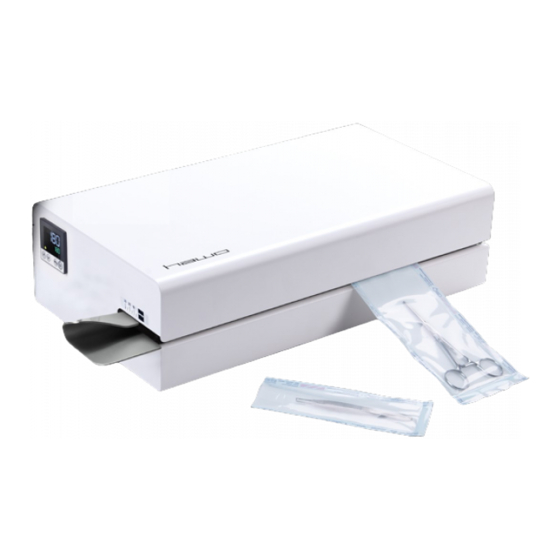

- Page 1 hd 650 D/DE EcoPak OPERATING INSTRUCTIONS Valid for device versions hd 650 D/DE EcoPak 9.693.004...
-
Page 2: Table Of Contents
SETTING THE TEMPERATURE 4.2.1 Revoke key lock ............................14 Offset – Make setting ..........................14 4.2.2 4.2.3 Activate key lock ............................14 ........................15 HAWO CUSTOMER SERVICE ..........................15 ERVICING PLAN ......................... 15 PARE PARTS SERVICE – .............. 17 PARE PARTS ORDERING ALLOCATION OF ARTICLE NUMBERS 4.6.1... -
Page 3: Introduction
hd 650 D/DE EcoPak Chapter 1 Introduction 1 Introduction Preface First of all we would like to thank you for purchasing this sealing device. In these instructions you will find information about using the device, servicing and care as well as process validation. -
Page 4: Important Notice
hd 650 D/DE EcoPak Chapter 1 Introduction Important notice In accordance with the intended use, the CE marking is displayed based on the following EU directives: 2006/42/EC, 2014/30/EU and 2011/65/EU. The Medical Device Directive 93/42/EEC and Medical Device Regulation 2017/745 (MDR) is not applicable to sealing devices. -
Page 5: Safety Instructions
hd 650 D/DE EcoPak Chapter 1 Safety instructions Our products are in a flawless condition in terms of safety technology when they leave the plant. To maintain this condition, the contents of these safety instructions as well as type plates, labelling and safety instructions attached to the device must be observed while handling the device (transport, storage, installation, commissioning, operation and maintenance). - Page 6 hd 650 D/DE EcoPak Chapter 1 The device must not be operated unsupervised. It is forbidden to operate the device under the influence of drugs or alcohol. Keep hair, clothing and gloves away from moving parts! Loose clothing, jewellery or long hair can be caught by moving parts.
-
Page 7: Before Starting
hd 650 D/DE EcoPak Chapter 2 2 Before starting Intended use SEALING MATERIALS Sealable paper pouches in accordance with EN ISO 11607-1/EN 868-4 Sealable pouches and tubes in accordance with EN ISO 11607- 1/EN 868-5 made of film and paper as per EN 868-3 Sealable pouches and tubes in accordance with ISO EN 11607- 1/EN 868-5 made of film and uncoated materials made of ®1... -
Page 8: Design And Functions
hd 650 D/DE EcoPak Chapter 2 Design and functions Controller Sealing edge adjustment Mains connection with fuse Engine start (hd 650 D only) Sealing process sequence 2.2.1 Step 1: After the sterilisation packaging has been inserted, the feed is automatically switched on. Step 2: The sterilisation packaging is now transported and the area is heated to the set sealing temperature. -
Page 9: Installation
hd 650 D/DE EcoPak Chapter 2 Installation The device must not be installed or operated in potentially explosive areas. Only use sockets that are equipped with a protective conductor and where the mains voltage is stable. The device may only be installed in a dry environment. Heavy dust, steam, dripping water or splashing water impair the function of the device. -
Page 10: Basic Functions
hd 650 D/DE EcoPak Chapter 3 Basic functions Operation Controller Mains connection with fuse Plug the mains cable into the mains connection. Switch on the device with the mains switch in position "1". The indicator light in the switch is lit. Set the required sealing temperature on the temperature controller as described in Chapter 3.3. -
Page 11: Operation
hd 650 D/DE EcoPak Chapter 3 Operation Sealing edge adjustment Knurled screw Set the required sealing edge width. After loosening the knurled screw, the lower insertion plate can be continuously adjusted for sealing edge widths of 0 - 30mm. Insert packaging into the device from the left via the insertion plate. Remove the sealed package on the outlet side and allow to cool down briefly. -
Page 12: Setting The Temperature Controller
hd 650 D/DE EcoPak Chapter 3 Setting the temperature controller Controller Temperature setting upwards Temperature setting downwards Cancel Menu / Confirm LED – 1 Process status display LED – 4 Heating status ... -
Page 13: Troubleshooting And Maintenance
hd 650 D/DE EcoPak Chapter 4 4 Troubleshooting and maintenance Troubleshooting checklist Malfunction Possible cause Remedy Power supply Check the mains connection and, Power cable not plugged in if necessary, plug into a different power outlet. Power cable defective Replace power cable Device does not switch on Replace line fuse. -
Page 14: Offset - Setting The Temperature
hd 650 D/DE EcoPak Chapter 4 Offset – setting the temperature Revoke key lock 4.2.1 1. Switch on the device 2. Check if the device is heating 3. Press and hold the two keys "Arrow down" & "Menu" simultaneously. 4. Change level from CONFIG. and PARAM. to NONE. -
Page 15: Hawo Customer Service
650 D/DE EcoPak Chapter 4 hawo customer service Your hawo customer service is available from Mon-Fri 07:30 - 16:30 CET at the following number: +49 (0)6261-9770-0. Servicing plan Like all technical devices, your device is subject to technical wear. - Page 16 650 D/DE EcoPak Chapter 4 Sender: hawo GmbH_____________ ______________________________ Fax no. +49 (0)6261 977069 ______________________________ Your order no. _________________ Date _______________ Device type _________________ Serial number _______________ Designation Art. no. Qty. Pressure roller 2.230.026 Gear motor 230 V 1.212.005...
-
Page 17: Spare Parts Ordering - Allocation Of Article Numbers
hd 650 D/DE EcoPak Chapter 4 Spare parts ordering – allocation of article numbers Upper sealing die 1.616.024 4.6.1 6.564.040 Temperature sensor 6.536.032 Heating cartridge 6.105.125 PTFE tape Lower sealing die 1.616.025 4.6.2 6.536.032 Heating cartridge 6.105.125 6.564.018 PTFE tape Overtemperature protection V 5.01 9.693.004... -
Page 18: Upper Guiding Die 1.619.014
hd 650 D/DE EcoPak Chapter 4 Upper guiding die 1.619.014 4.6.3 6.105.138 PTFE tape Lower guiding die 1.619.015 4.6.4 6.105.138 PTFE tape V 5.01 9.693.004 Page 18... -
Page 19: Comprehensive Overview
hd 650 D/DE EcoPak Chapter 4 Comprehensive overview 4.6.5 2.230.026 Pressure roller 6.271.001 1.561.016 Toothed belt transport Opto – Sensor motor start (hd 650 DE only) 1.212.005 or 1.212.014 Gear motor 6.564.050 Controller 6.562.009 IEC – Cable supply 6.562.006 Motor start switch (hd 650 D only) V 5.01 9.693.004... -
Page 20: Technical Data
hd 650 D/DE EcoPak Chapter 5 5 Technical data Switching and wiring diagram 230V~ Temperature controller 6.564.050 Temperature sensor 6.564.040 Overtemperature protection 6.564.018 SST relay 6.460.001 115V/200W heating cartridges 6.536.024 Gear motor 230V 1.212.005 115V 1.212.014 ... -
Page 21: Switching And Wiring Diagram 115V
hd 650 D/DE EcoPak Chapter 5 Switching and wiring diagram 115V~ V 5.01 9.693.004 Page 21... -
Page 22: Specifications
hd 650 D/DE EcoPak Chapter 5 Specifications Connection data Mains connection [ V ] 115 / 230 Mains frequency [ Hz ] 50 / 60 Power consumption max. [ W ] Mains fuse 115V / 230V [ A ] 6.3A / 4A Mechanical system Dimensions Length... -
Page 23: Declaration Of Conformity
hd 650 D/DE EcoPak Chapter 6 6 Declaration of conformity V 5.01 9.693.004 Page 23... - Page 24 GmbH hawo USA hawo ASIA Obere Au 2 – 4 321 North Clark Street 25 International Business Park 74847 Obrigheim Suite 1425 #03-105 German Centre Germany Chicago IL 60654 Singapore 609916 T +49 (0) 6261 / 9770 - 0 T +1 312 585 8329 T +65 6433 5339 F +49 (0) 6261 / 9770 - 69...
