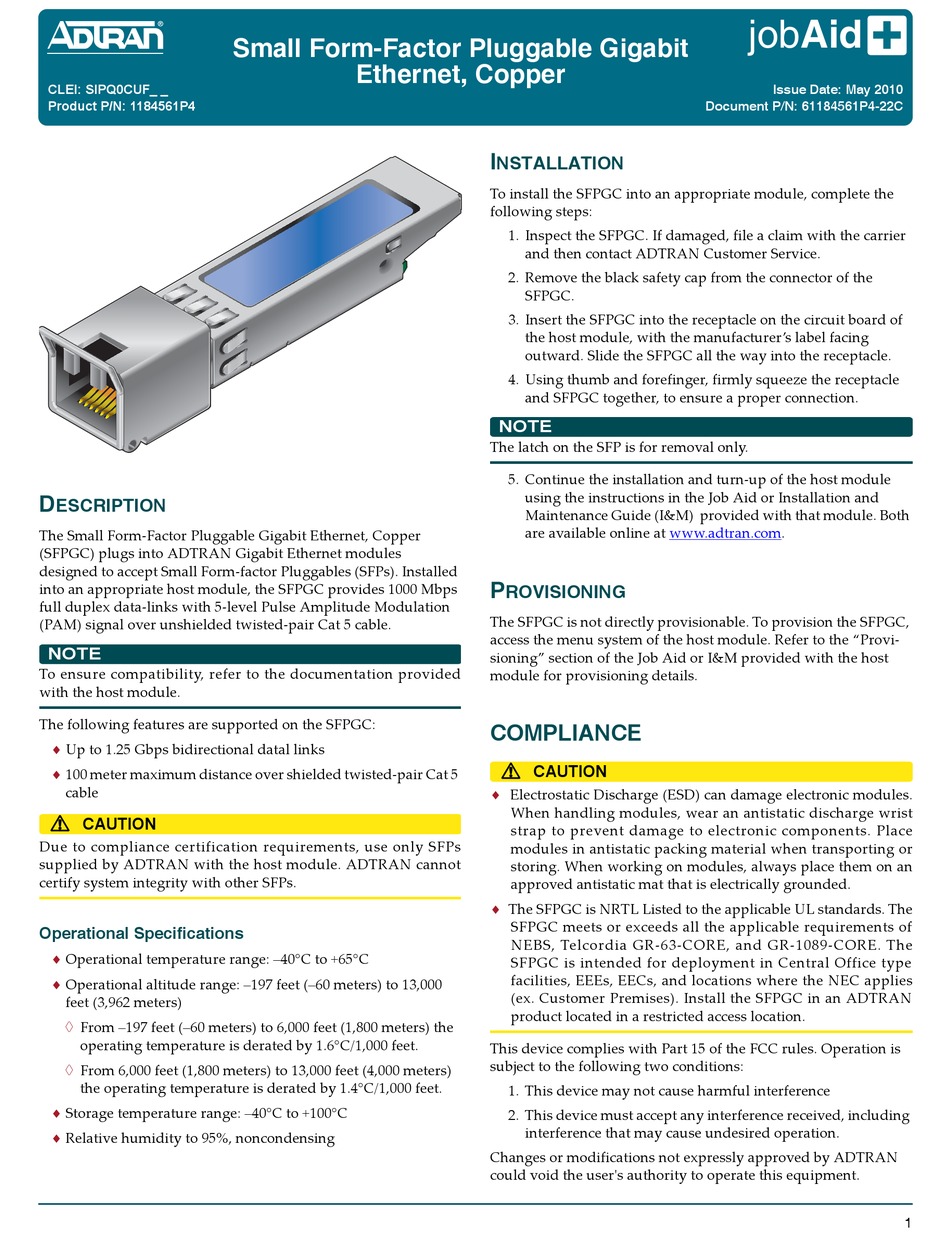

ADTRAN 1184561P4 Quick Start Manual

CLEI: SIPQ0CUF_ _
Product P/N: 1184561P4
D
ESCRIPTION

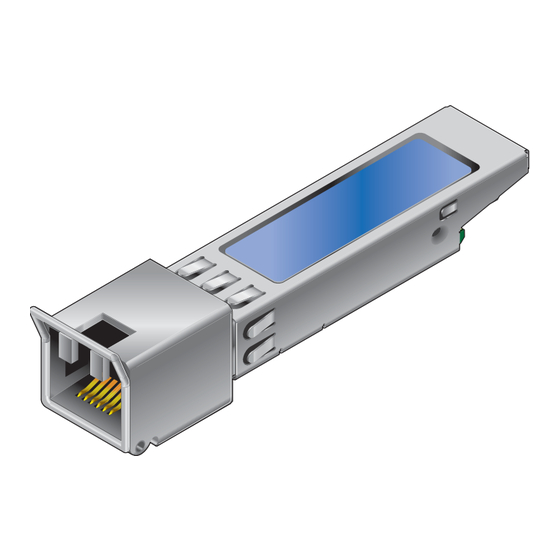

The Small Form‐Factor Pluggable Gigabit Ethernet, Copper
(SFPGC) plugs into ADTRAN Gigabit Ethernet modules
designed to accept Small Form‐factor Pluggables (SFPs). Installed
into an appropriate host module, the SFPGC provides 1000 Mbps
full duplex data‐links with 5‐level Pulse Amplitude Modulation
(PAM) signal over unshielded twisted‐pair Cat 5 cable.
NOTE
To ensure compatibility, refer to the documentation provided
with the host module.
The following features are supported on the SFPGC:
♦
Up to 1.25 Gbps bidirectional datal links
♦
100 meter maximum distance over shielded twisted‐pair Cat 5
cable
!
CAUTION
Due to compliance certification requirements, use only SFPs
supplied by ADTRAN with the host module. ADTRAN cannot
certify system integrity with other SFPs.
Operational Specifications
♦
Operational temperature range: –40°C to +65°C
♦
Operational altitude range: –197 feet (–60 meters) to 13,000
feet (3,962 meters)
◊
From –197 feet (–60 meters) to 6,000 feet (1,800 meters) the
operating temperature is derated by 1.6°C/1,000 feet.
◊
From 6,000 feet (1,800 meters) to 13,000 feet (4,000 meters)
the operating temperature is derated by 1.4°C/1,000 feet.
♦
Storage temperature range: –40°C to +100°C
♦
Relative humidity to 95%, noncondensing
Small Form-Factor Pluggable Gigabit
Ethernet, Copper
I
NSTALLATION
To install the SFPGC into an appropriate module, complete the
following steps:
1. Inspect the SFPGC. If damaged, file a claim with the carrier
and then contact ADTRAN Customer Service.
2. Remove the black safety cap from the connector of the
SFPGC.
3. Insert the SFPGC into the receptacle on the circuit board of
the host module, with the manufacturer's label facing
outward. Slide the SFPGC all the way into the receptacle.
4. Using thumb and forefinger, firmly squeeze the receptacle
and SFPGC together, to ensure a proper connection.
NOTE
The latch on the SFP is for removal only.
5. Continue the installation and turn‐up of the host module
using the instructions in the Job Aid or Installation and
Maintenance Guide (I&M) provided with that module. Both
are available online at www.adtran.com.
P
ROVISIONING
The SFPGC is not directly provisionable. To provision the SFPGC,
access the menu system of the host module. Refer to the "Provi‐
sioning" section of the Job Aid or I&M provided with the host
module for provisioning details.
COMPLIANCE
!
CAUTION
♦
Electrostatic Discharge (ESD) can damage electronic modules.
When handling modules, wear an antistatic discharge wrist
strap to prevent damage to electronic components. Place
modules in antistatic packing material when transporting or
storing. When working on modules, always place them on an
approved antistatic mat that is electrically grounded.
♦
The SFPGC is NRTL Listed to the applicable UL standards. The
SFPGC meets or exceeds all the applicable requirements of
NEBS, Telcordia GR‐63‐CORE, and GR‐1089‐CORE. The
SFPGC is intended for deployment in Central Office type
facilities, EEEs, EECs, and locations where the NEC applies
(ex. Customer Premises). Install the SFPGC in an ADTRAN
product located in a restricted access location.
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by ADTRAN
could void the userʹs authority to operate this equipment.
jobAid
Issue Date: May 2010
Document P/N: 61184561P4-22C
1
