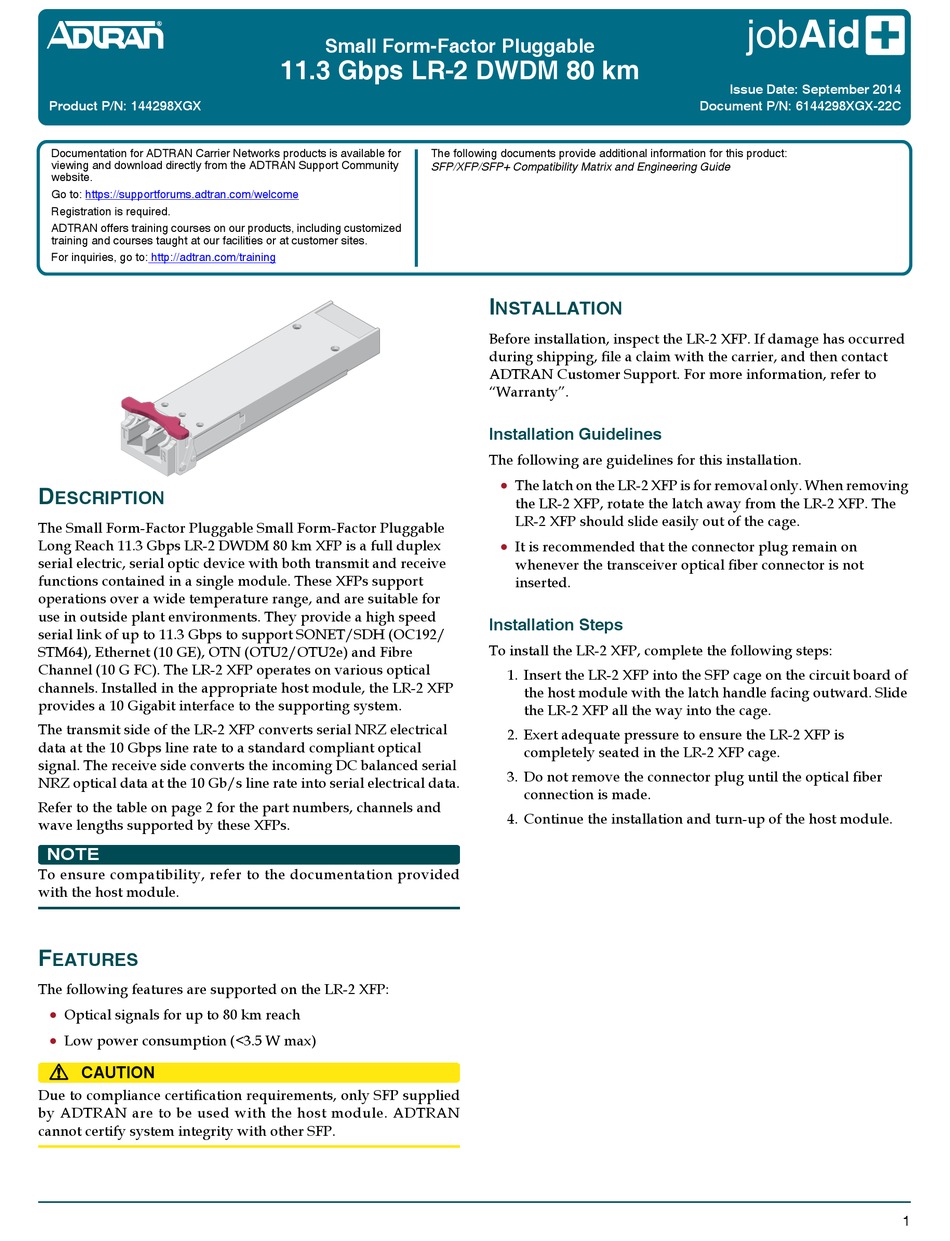

ADTRAN 144298XGX Quick Start Manual

Product P/N: 144298XGX
Documentation for ADTRAN Carrier Networks products is available for
viewing and download directly from the ADTRAN Support Community
website.
Go to: https://supportforums.adtran.com/welcome
Registration is required.
ADTRAN offers training courses on our products, including customized
training and courses taught at our facilities or at customer sites.
For inquiries, go to: http://adtran.com/training
D
ESCRIPTION
The Small Form-Factor Pluggable Small Form-Factor Pluggable
Long Reach 11.3 Gbps LR-2 DWDM 80 km XFP is a full duplex
serial electric, serial optic device with both transmit and receive
functions contained in a single module. These XFPs support
operations over a wide temperature range, and are suitable for
use in outside plant environments. They provide a high speed
serial link of up to 11.3 Gbps to support SONET/SDH (OC192/
STM64), Ethernet (10 GE), OTN (OTU2/OTU2e) and Fibre
Channel (10 G FC). The LR-2 XFP operates on various optical
channels. Installed in the appropriate host module, the LR-2 XFP
provides a 10 Gigabit interface to the supporting system.
The transmit side of the LR-2 XFP converts serial NRZ electrical
data at the 10 Gbps line rate to a standard compliant optical
signal. The receive side converts the incoming DC balanced serial
NRZ optical data at the 10 Gb/s line rate into serial electrical data.
Refer to the table on page 2 for the part numbers, channels and
wave lengths supported by these XFPs.
NOTE
To ensure compatibility, refer to the documentation provided
with the host module.
F
EATURES
The following features are supported on the LR-2 XFP:

Optical signals for up to 80 km reach

Low power consumption (<3.5 W max)
!
CAUTION
Due to compliance certification requirements, only SFP supplied
by ADTRAN are to be used with the host module. ADTRAN
cannot certify system integrity with other SFP.
Small Form-Factor Pluggable
11.3 Gbps LR-2 DWDM 80 km
The following documents provide additional information for this product:
SFP/XFP/SFP+ Compatibility Matrix and Engineering Guide
I
NSTALLATION
Before installation, inspect the LR-2 XFP. If damage has occurred
during shipping, file a claim with the carrier, and then contact
ADTRAN Customer Support. For more information, refer to
"Warranty".
Installation Guidelines
The following are guidelines for this installation.

The latch on the LR-2 XFP is for removal only. When removing
the LR-2 XFP, rotate the latch away from the LR-2 XFP. The
LR-2 XFP should slide easily out of the cage.

It is recommended that the connector plug remain on
whenever the transceiver optical fiber connector is not
inserted.
Installation Steps
To install the LR-2 XFP, complete the following steps:
1. Insert the LR-2 XFP into the SFP cage on the circuit board of
the host module with the latch handle facing outward. Slide
the LR-2 XFP all the way into the cage.
2. Exert adequate pressure to ensure the LR-2 XFP is
completely seated in the LR-2 XFP cage.
3. Do not remove the connector plug until the optical fiber
connection is made.
4. Continue the installation and turn-up of the host module.
jobAid
Issue Date: September 2014
Document P/N: 6144298XGX-22C
1
