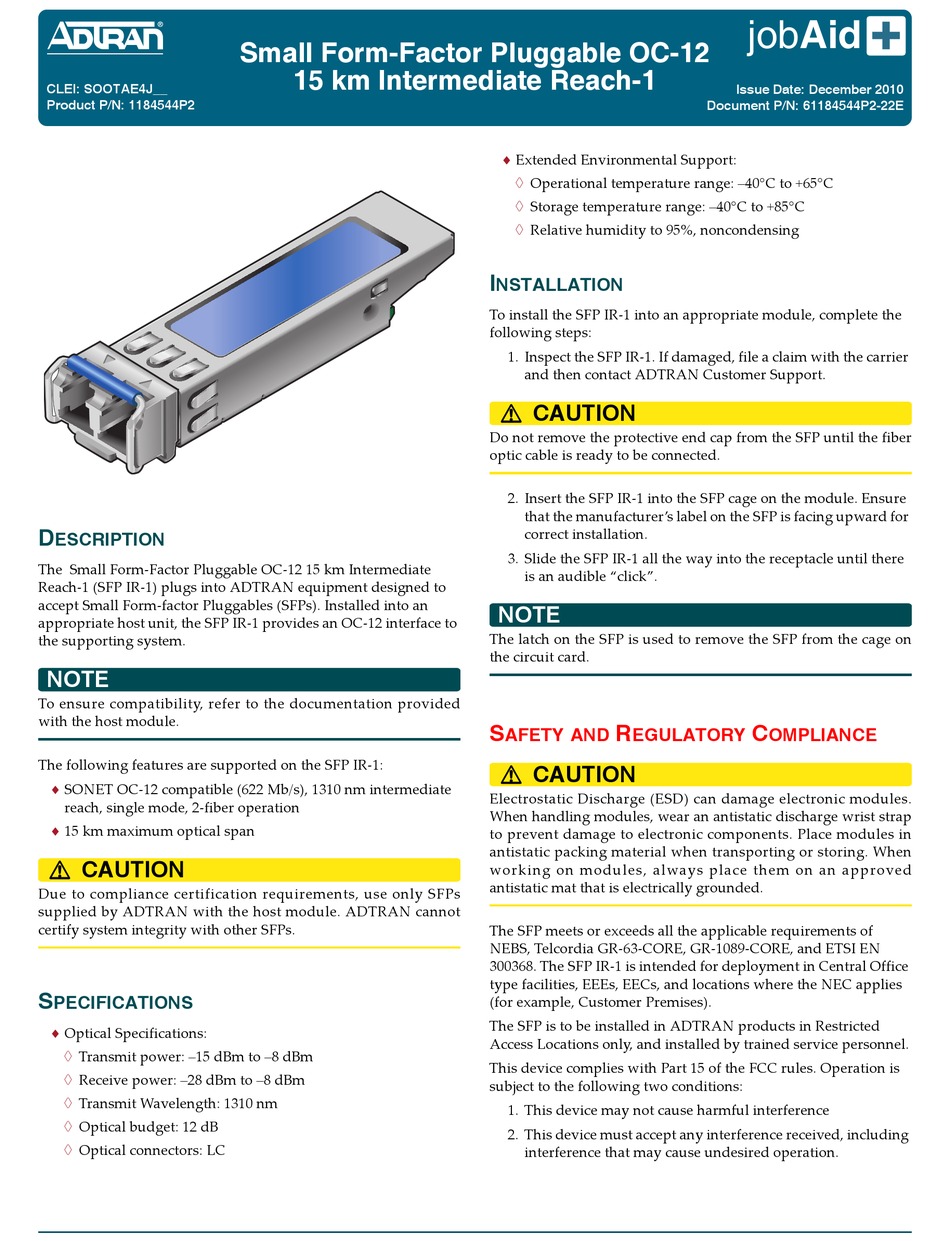

ADTRAN 1184544P2 Quick Start Manual

CLEI: SOOTAE4J__
Product P/N: 1184544P2
D
ESCRIPTION
The Small Form‐Factor Pluggable OC‐12 15 km Intermediate
Reach‐1 (SFP IR‐1) plugs into ADTRAN equipment designed to
accept Small Form‐factor Pluggables (SFPs). Installed into an
appropriate host unit, the SFP IR‐1 provides an OC‐12 interface to
the supporting system.
NOTE
To ensure compatibility, refer to the documentation provided
with the host module.
The following features are supported on the SFP IR‐1:
♦
SONET OC‐12 compatible (622 Mb/s), 1310 nm intermediate
reach, single mode, 2‐fiber operation
♦
15 km maximum optical span
!
CAUTION
Due to compliance certification requirements, use only SFPs
supplied by ADTRAN with the host module. ADTRAN cannot
certify system integrity with other SFPs.
S
PECIFICATIONS
♦
Optical Specifications:
◊
Transmit power: –15 dBm to –8 dBm
◊
Receive power: –28 dBm to –8 dBm
◊
Transmit Wavelength: 1310 nm
◊
Optical budget: 12 dB
◊
Optical connectors: LC
Small Form-Factor Pluggable OC-12
15 km Intermediate Reach-1
♦
Extended Environmental Support:
◊
Operational temperature range: –40°C to +65°C
◊
Storage temperature range: –40°C to +85°C
◊
Relative humidity to 95%, noncondensing
I
NSTALLATION
To install the SFP IR‐1 into an appropriate module, complete the
following steps:
1. Inspect the SFP IR‐1. If damaged, file a claim with the carrier
and then contact ADTRAN Customer Support.
!
CAUTION
Do not remove the protective end cap from the SFP until the fiber
optic cable is ready to be connected.
2. Insert the SFP IR‐1 into the SFP cage on the module. Ensure
that the manufacturer's label on the SFP is facing upward for
correct installation.
3. Slide the SFP IR‐1 all the way into the receptacle until there
is an audible "click".
NOTE
The latch on the SFP is used to remove the SFP from the cage on
the circuit card.
S R
AFETY AND EGULATORY
!
CAUTION
Electrostatic Discharge (ESD) can damage electronic modules.
When handling modules, wear an antistatic discharge wrist strap
to prevent damage to electronic components. Place modules in
antistatic packing material when transporting or storing. When
working on modules, always place them on an approved
antistatic mat that is electrically grounded.
The SFP meets or exceeds all the applicable requirements of
NEBS, Telcordia GR‐63‐CORE, GR‐1089‐CORE, and ETSI EN
300368. The SFP IR‐1 is intended for deployment in Central Office
type facilities, EEEs, EECs, and locations where the NEC applies
(for example, Customer Premises).
The SFP is to be installed in ADTRAN products in Restricted
Access Locations only, and installed by trained service personnel.
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received, including
interference that may cause undesired operation.
jobAid
Issue Date: December 2010
Document P/N: 61184544P2-22E
C
OMPLIANCE
