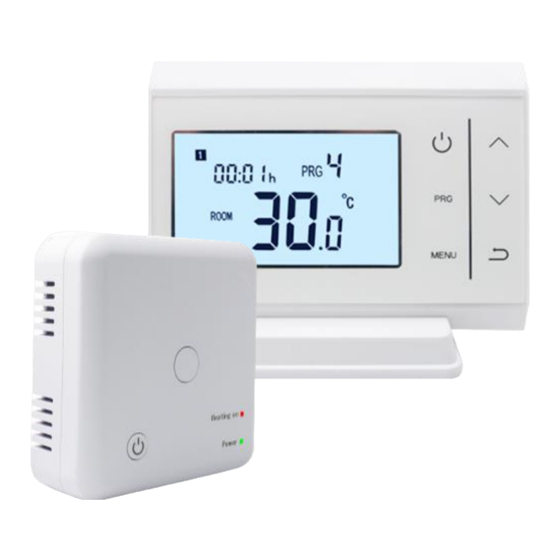

WIRELESS PROGRAMMABLE ROOM THERMOSTAT
The surface-mounted radio thermostat has been developed to be able to switch and conventional
heating system on and off using a set temperature and time.
Key Features
• Large display can be clearly read with the background lighting
• 2xAAA battery backup
• 4 periods of each day programmable (5+1+1 )
• Surface mounting with Easy to fit thermostat and receiver.
• Six buttons make it easy to use.
• Set temperature, measured temperature, time displayed
• Temperature display in degrees Celsius.
• RF frequency: 868Mhz
• CE, ROHS approved
Technical Data
Power Supply
- 2*AAA battery
Load current
- Max 10A
Set Point Range
- 5~30℃
Ambient
- 0~50℃
Relative Humidity
Displays & Buttons
PRG. Schedule Setting
MANUAL
- 85%
Backlight
- White
Sensor
- NTC 10K,
Accuracy - ± 0.5℃ (step control by +0.5℃)
Protection Class - IP20
Housing - ABS to UL94-5 fire retardant plastic
1 / 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PNI ACRF8508
Summary of Contents for PNI ACRF8508
- Page 1 MANUAL WIRELESS PROGRAMMABLE ROOM THERMOSTAT The surface-mounted radio thermostat has been developed to be able to switch and conventional heating system on and off using a set temperature and time. Key Features • Large display can be clearly read with the background lighting •...
- Page 2 1) The weekday is fixed from Monday to Sunday(l -7), each schedule have 4 periods(1-4). Each press of PRG button PRG button can into next item setting. 2) Press PRG and hold for 3 seconds, the minutes flash(A), change the values by up and down button. 3) Press PRG,the temp.
- Page 3 To set the time and day with following steps(Pic.2) 1) Press Menu button and hold 3 seconds, the minutes display flash(E), change the values by up and down button.(Each press is one minutes) 2) Press Menu, the hour display will flash(F),change the hour by up and down button.(Each press is one hour) 3) Press Menu button, the day display flash (G)as a number, change this value by up and down button.
- Page 4 Code Pairing Code pairing button Heating on indicator (LED 1) Power supply indicator (LED 2) On/off button 1) Long press the code pairing button on the receiver until LED 1 is flickering quickly. 2) Turn off sender, and long press Menu button until lcd illuminated, then press Menu button again, till address code display.
