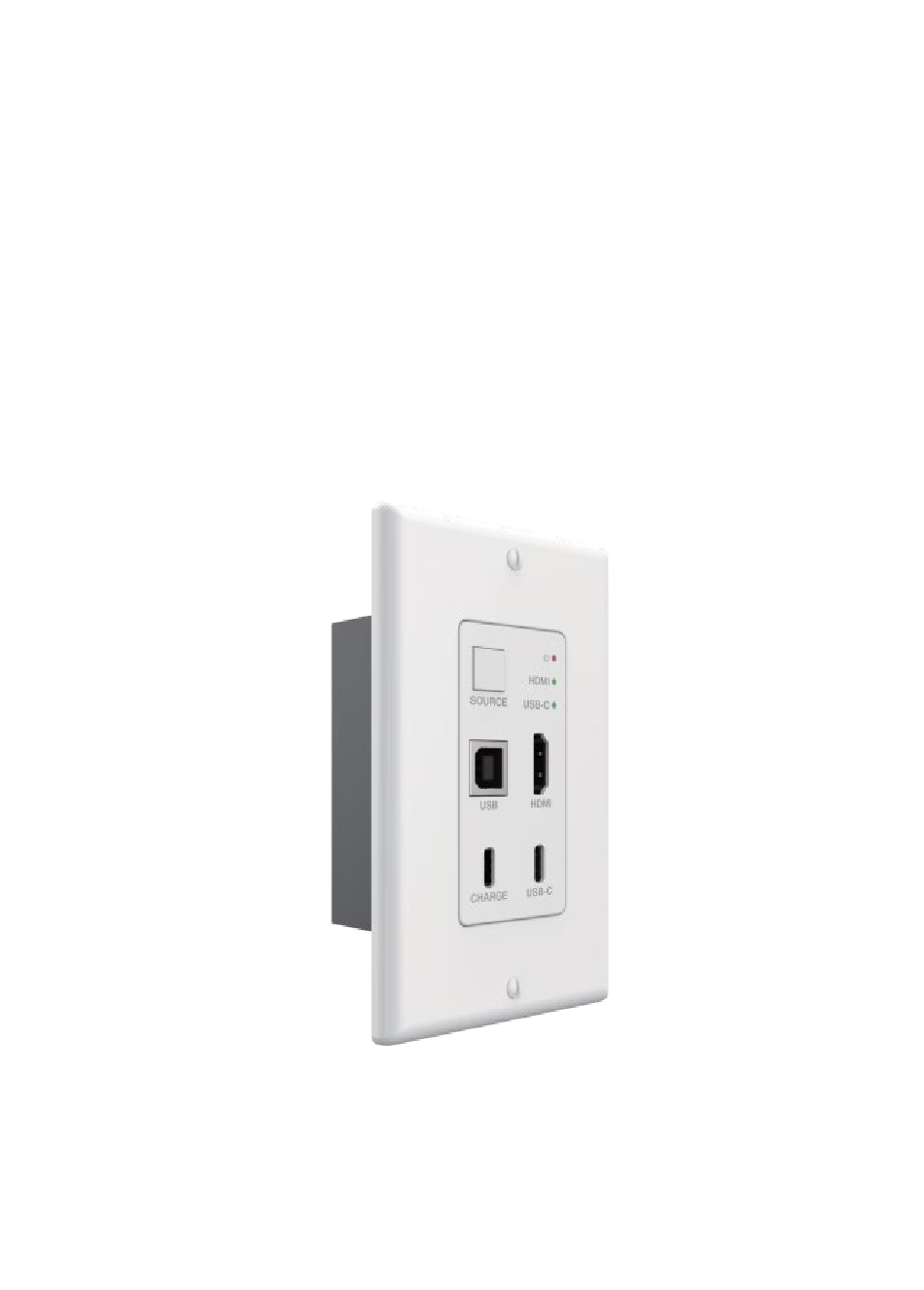

- Page 1 ALF-WP70S-UB Wall Plate...
- Page 2 ALF-WP70S-UB Preface This manual describes the functions, installation and operation principles and methods of the product in detail. Before installing and using this product, please read it carefully. FCC Statement This equipment generates, uses, and can radiate radio frequency energy...
- Page 3 ALF-WP70S-UB Radiation Exposure This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: This device may not cause interference, and This device must accept any interference, including interference that may cause undesired operation of the device.
-
Page 4: Table Of Contents
ALF-WP70S-UB Table of Contents Introduction ..................1 Features ..................1 Package Contents ................. 1 Specifications ................2 Product Dimensions ..............4 Operation Controls and Functions ..........5 Application Example ..............8... -
Page 5: Introduction

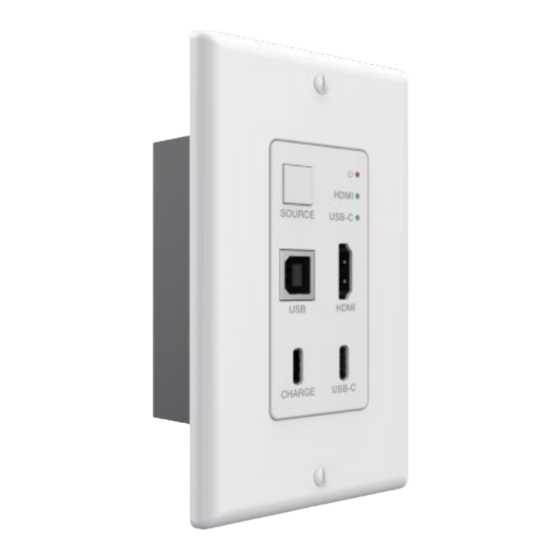

ALF-WP70S-UB 1. Introduction The ALF-WP70S-UB wall plate is a 2x1 switcher and HDBaseT transmitter with an HDMI and USB-C input. It features a US one-gang enclosure for Decora-style wall plate openings with interchangeable black and white wall plates and faceplates. The USB-C input provides an ideal AV interface for connecting with new Apple MAC notebooks and Windows computers as well as smartphones and tablets. -
Page 6: Specifications
ALF-WP70S-UB 4. Specifications Technical HDMI Compliance HDMI 2.0b, DisplayPort 1.2a HDCP Compliance HDCP 2.2 Video Bandwidth 18 Gbps 4096×2160@24 / 25 / 30 / 50 / 60Hz, 3840×2160@24 / 25 / 30 / 50 / 60Hz, 2048x1080p, Video Resolution 1080p@23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 /... - Page 7 ALF-WP70S-UB Inputs: 1x HDMI IN - Type A, 19-pin female 1x HDBaseT IN - RJ45, 8-pin female Receiver Outputs: 1x HDMI OUT - Type A, 19-pin female 1x AUDIO OUT - Phoenix jack Control: 2x USB - USB A TYPE...
-
Page 8: Product Dimensions
ALF-WP70S-UB Mechanical Housing Metal Enclosure Color White / Black Wall plate: 33.3mm [W] x 65.7mm [D] x 68.7mm [H] Faceplate: Dimensions 69.9mm [W] x 3mm [D] x 114.3mm [H] Receiver: 200mm [W] x 98mm [D] x 23mm [H] Wall plate: 196g, Receiver: 511g... -
Page 9: Operation Controls And Functions
ALF-WP70S-UB 6. Operation Controls and Functions 6.1 Transmitter Panel Name Function Description The power LED indicator will illuminate g re en Power LED when the product is powered on, and red when the product is in standby. When the HDMI input port is active and the HDMI HDMI LED signal is detected, the green LED will be on. - Page 10 ALF-WP70S-UB 6.2 Receiver Panel Name Function Description When the product is powered on, the red LED Power LED indicator will be illuminated. DC 24V power supply port. DC 24V Firmware update port. Connect to the HDBaseT OUT port of the HDBaseT IN Transmitter with a CAT6 / 6a / 7 cable.
- Page 11 ALF-WP70S-UB In automatic switching mode, the last connected or the currently connected source signal will be selected automatically; When both HDMI and USB-C ports are connected to active signal, HDMI signal input takes preference; When both HDMI and USB-C ports are not connected to active signal, it will switch to the source signal of the Receiver.
-
Page 12: Application Example
ALF-WP70S-UB 7. Application Example - 8 -... - Page 13 Product Limited Warranty: Alfatron warrants that its products will be free from defects in materials and workmanship for seven years, which starts from the first day of purchase.
- Page 14 ALF-WP70S-UB Warranty 1.1 This limited warranty covers defects in materials and workmanship in this product. 1.2 Should warranty service be required, proof of purchase must be presented to the Company. The serial number on the product must be clearly visible and not have been tampered with in any way whatsoever.
- Page 15 ALF-WP70S-UB include the cost of labor and travel to return the goods to the Company’s premises. 1.8 In the event of any improper maintenance, repair or service being carried out by any third persons during the warranty period without the Company’s written authorization, the limited warranty shall be void.
- Page 16 ALF-WP70S-UB competitor’s products. 1.14 The appropriateness of the goods for the purpose intended is only warranted to the extent that the goods are used in accordance with the Company’s installation, classification, and usage instructions. 1.15 Any claim by the Customer which is based on any defect in the quality...
