- Page 1 ALFATRON ELECTRONICS GmbH GERMANY ALF-WP70T/RS...
- Page 2 ALF-WP70T/RS FCC Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 3 ALF-WP70T/RS Radiation Exposure: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices.
-
Page 4: Table Of Contents
ALF-WP70T/RS Table of Contents 1. Introduction....................1 2. Features....................1 3. Package Contents..................1 4. Specifications.................... 2 5. Product Dimensions ................... 4 6. Operation Controls and Functions.............. 5 6.1 Transmitter Panel................5 6.2 Receiver Panel..................6 7. -
Page 5: Introduction

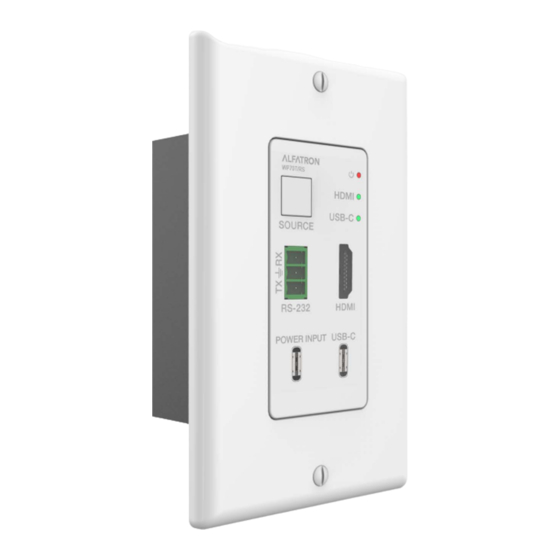

ALF-WP70T/RS 1. Introduction The ALF-WP70T/RS wall plate is a 2x1 switcher and HDBaseT transmitter with HDMI and USB-C inputs. It features a US one-gang enclosure for Decora-style wall plate openings with interchangeable black and white wall plates and faceplates. Supports video resolution up to 4K2K@50/60Hz 4:4:4. It supports bidirectional RS- 232 pass-through, and the RS-232 control signal can be transmitted up to 131ft / 40m. -
Page 6: Specifications
ALF-WP70T/RS 4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 Display Port 1.2a DP Compliance USB-C: 5.4 Gbps Video Bandwidth HDMI: 18 Gbps Video Resolution 480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz Color Space RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 8/10/12-bit (1080P@60Hz) - Page 7 ALF-WP70T/RS Inputs: 1x HDMI IN [Type A, 19-pin female] 1x HDBaseT IN [RJ45, 8-pin female] Outputs: 1x HDMI OUT [Type A, 19-pin female] Receiver 1x AUDIO OUT [Phoenix jack] Controls: 1x RS-232 [3-pin phoenix connector] 1x FW [Micro USB, Update port]...
-
Page 8: Product Dimensions
ALF-WP70T/RS 5. Product Dimensions 69.9 60.9 33.3 Front Side Back Unit: mm - 4 -... -
Page 9: Operation Controls And Functions
ALF-WP70T/RS 6. Operation Controls and Functions 6.1 Transmitter Panel Name Function Description The power LED indicator will illuminate green when the device is powered on, and red when the unit is Power LED in standby. When the HDMI input port is active and the HDMI HDMI LED signal is detected, the green LED will be on. -
Page 10: Receiver Panel
ALF-WP70T/RS 6.2 Receiver Panel Name Function Description When the product is powered on, the red LED Power LED indicator will be on. DC 24V power supply port. DC 24V Firmware update port. Connect to the HDBaseT OUT port of the Transmitter HDBaseT IN with a CAT6/6a/7 cable. -
Page 11: Application Example
ALF-WP70T/RS 7. Application Example - 7 -... -
Page 12: After-Sales Service
ALF-WP70T/RS After-sales Service Should you experience problems using the Alfatron ALF-WP70T/RS please refer to the manual and operation controls and functions (6). Should the error persist, note that any transport costs of the equipment to the distributor are borne by the user during the warranty. -
Page 13: Warranty
ALF-WP70T/RS Warranty 1.1 This limited warranty covers defects in materials and workmanship in this product. 1.2 Should warranty service be required, proof of purchase must be presented to the Company. The serial number on the product must be clearly visible and not have been tampered with in any way whatsoever. - Page 14 ALF-WP70T/RS premises. 1.8 In the event of any improper maintenance, repair or service being carried out by any third persons during the warranty period without the Company’s written authorization, the limited warranty shall be void. 1.9 A 7 (seven) year limited warranty is given on the aforesaid product were used correctly according to the Company’s instructions, and only with the use of the...
- Page 15 ALF-WP70T/RS 1.14 The appropriateness of the goods for the purpose intended is only warranted to the extent that the goods are used in accordance with the Company’s installation, classification, and usage instructions. 1.15 Any claim by the Customer which is based on any defect in the quality or...
