Setting Your Canopy

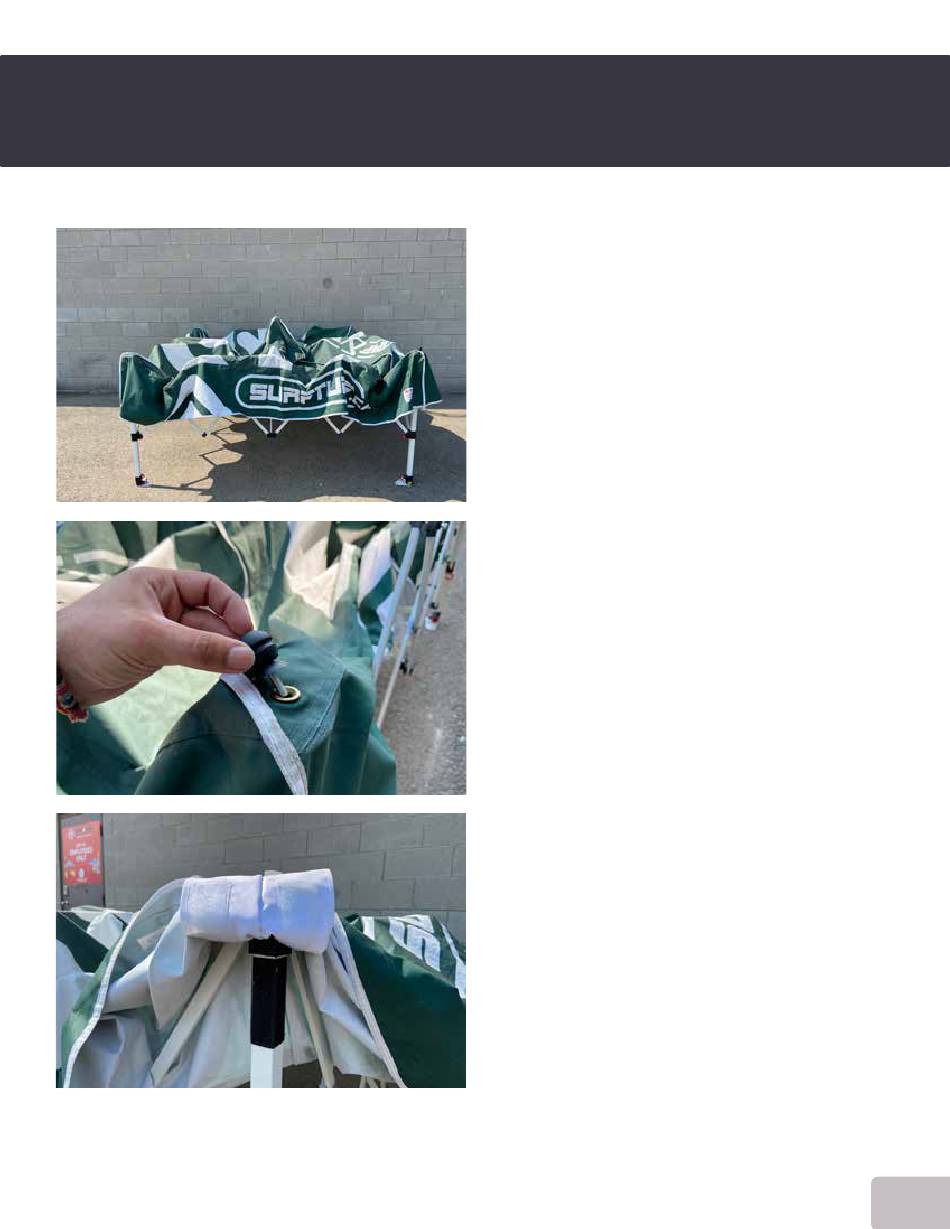

Step 4: Place Canopy
Place the canopy over the extended
frame. Ensure that the peak of the
canopy is sitting comfortably on the
centre apex to avoid unnecessary stress
and friction on the material.
Step 5: Anti-Sag Bolts
Located in the small canvas bag that
comes with your frame you will find
tie-down rope, anchor stakes and the
Anti-Sag Bolts (see image right). With
the frame low to the ground, this is a
good time to insert your Anti-Sag Bolts.
Install the threaded bolt through the
grommet of the canopy and into the
threaded hole in the legs.
Once threaded, secure the velcro in the
corner of the canopies to the leg.
