- Page 1 Amalfi Parasol Instructions...

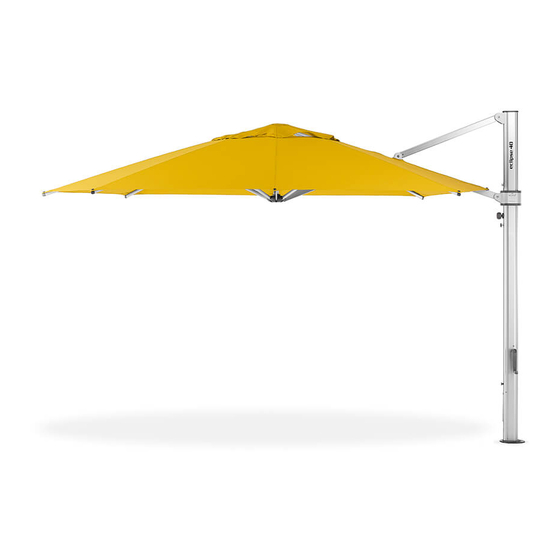

- Page 2 AMALFI PARASOL The Amalfi is manufactured using high quality materials and fabrics and is designed to give many years of trouble free use and enjoyment. The following information is to inform, how to operate your Amalfi parasol to ensure ease of operation. Please follow these instructions as they are designed to assist operation and prolong the life of your parasol.
- Page 3 It is important to keep tracks free of dirt, grit, cobwebs and other foreign objects. Spray can be used to lubricate the tracks after cleaning. 4. Always fold the canopy as described in section “TO CLOSE AMALFI PARASOL”. This will prolong the new look of the canvas and prevent marking and holes caused by “pinching”...
-
Page 4: Parts Identification
PARTS IDENTIFICATION Note: When Amalfi is closed, the double pulley is near the top inside of the mast. When Amalfi is open, the double pulley is lower down inside the mast. - Page 5 PARTS IDENTIFICATION 1. Arms 2. Arrowhead end fitting 3. Small Strop 4. Stop closure button on 4 arms only 5. Struts 6. Bottom hub 7. Tube locator 8. Stainless steel cable 9. Hub tube 10. Tube holder 11. Top hub 12.
- Page 6 TO OPEN PARASOL 1. Remove the strap from the canopy. 2. Gently spread the canopy arms open with your hands (refer Figure A). 3. Ensure the slider knob is loose and slider can move freely (refer Figure B). Insert the winder handle (30) into the winder housing (31) on the mast and roate in a clockwise direction.
- Page 7 TO CLOSE PARASOL 1. Turn the sider tilt knob (20) anti-clockwise until loose. 2. Rotate the winder handle (30) in an anti-clockwise direction. The canopy will begin to collapse. Continue winding in an anti-clockwise direction until the canopy is mostly closed and the canopy arms are pointing almost vertically down to the ground.
- Page 8 Figure C (20) anti-clockwise. Refer insturctions Tilt position 1 (approx. 30 degrees) “TO CLOSE AMALFI PARASOL” NOTE: The optimum strength of the parasol is reached only when the slider is at its maximum height and the parasol canopy edge is horizontal to the ground.
- Page 9 TO ROTATE PARASOL There are 16 pre-determined location holes in the spigot. These location holes are found at every 22.5 degrees interval around the spigot base. They are located where indicated on the spigot base and are under the nylon indexing shield (34) which acts as a dust cover for the holes not in use.
- Page 10 TO USE (OPTIONAL) STABILISER BARS Stabiliser bars can be fitted to the Amalfi parasol to assist its performance in a wider range of wind conditions. It is an optional extra and is available. 1. Slide the stay block (38) up the internal mast housing to a height roughly the same as the height of the stabiliser bars when standing vertical...
- Page 11 TO USE (OPTIONAL) STABILISER BARS 4. Attach the remaining arm to the other side. NOTE: There is adjustment to the outer end of the stays so as to align the knob/screw connection with the parasol arm ends. 5. You may need to loosen the central threaded stainless screw and adjust up or down the mast until you have applied a little upward tension on the...
-
Page 12: Mobile Installation
MOBILE INSTALLATION Use the Cross Base with your parasol if you do not wish to carry out an inground fitting. The Cross Base allows you the flexibility to move the parasol around. However it should only be used in light wind conditions. -
Page 13: Permanent Installation
PERMANENT INSTALLATION Your Amalfi parasol comes fully assembled in the box that it is delivered in. Once you have fixed the spigot correctly you may lift the Amalfi parasol onto the spigot. 1. Fixing the Amalfi base plate to a timber deck: If you wish to locate your Amalfi... - Page 14 PERMANENT INSTALLATION 2. Fixing the Amalfi base plate to a concrete patio: When installing your parasol on a concrete surface you may fix the base plate to the concrete using four concrete screws or fastenings. Once you have installed your base plate to the concrete, use the four stainless steel screws provided to attach the spigot to the base plate.
- Page 15 PERMANENT INSTALLATION 3. Fixing in lawn, soil or patio: When installation is required in soil or sand, an in-ground fitting must be used. This is a galvanised steel fitting which must be concreted into position. Because terrain differs from thick clay to sand or fine soil then a different sized hole must be prepared and a different volume of concrete used.
- Page 16 PARASOL CARE You will get maximum benefit from your parasol when you use it in accordance with our instructions and in the weather conditions for which it was designed. General Information: Do not leave the parasol open when unattended, particularly in windy conditions. The parasol shoud be closed and securely strapped in strong winds and adverse weather conditions.
- Page 17 PARASOL CARE Recasens 100% Solution-Dyed Acrylic Canvas Fabric Surf & Turf uses the finest marine grade solution-dyed acrylic canvas fabric manufactured by S.A. Recasens in Spain. This premium outdoor fabric has the best available colour fastness rating of 7.8 out of 8. Recasens fabrics also has the highest possible UV protection rating of UPF 80 according to the European UV standard 801, cutting out the maximum amount of harmful UV light for excellent sun protection.
- Page 18 PARASOL CARE How To Remove Heavy Dirt Or Mould From Your Outdoor Parasol Acrylic Canvas Fabric: If you have heavy dirt or mould growth in your acrylic canvas fabric and the instructions above have not removed it, you may need to repeat the instructions again, but add between half and one cup of bleach to the bucket of soapy water.
- Page 19 PARASOL CARE PARASOL BASE CARE Do not let dirt build up on the bases. Cleaning with mild soap and water, and seasonal touch-up of any scratches, chips or occasional rust seepage from crevices or hidden, unfinished surfaces inherent in some designs is all that is required.
- Page 20 AMALFI PARASOL...
- Page 22 Surf & Turf Instant Shelters Ltd Unit 7 Tatton Court, Kingsland Grange, Warrington, Cheshire WA1 4RR 01925 819608 info@surfturf.co.uk...
