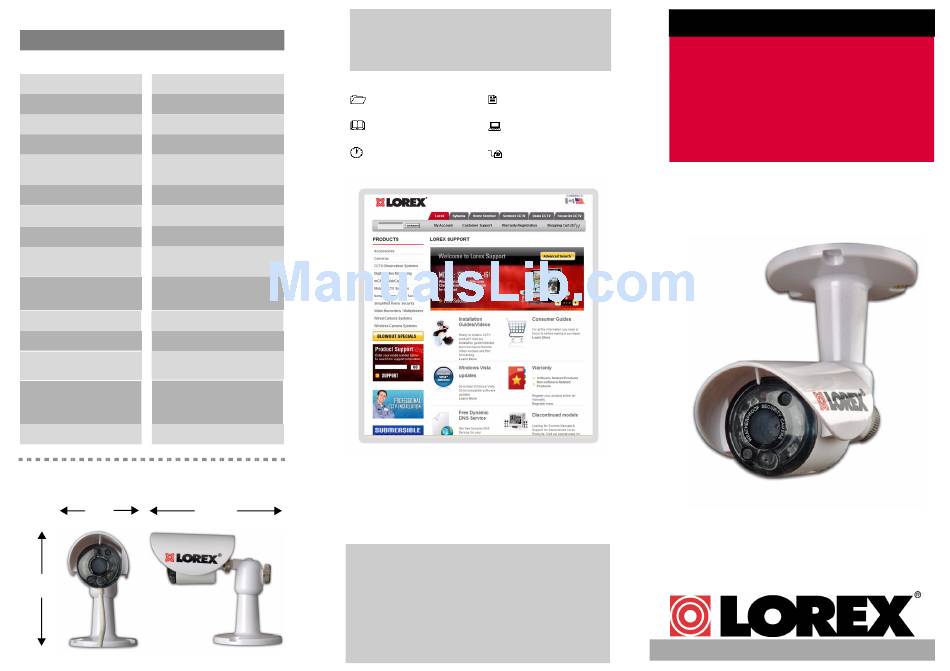

Lorex SG6185W Quick Start Manual

Camera Specifications

Specfications:
Image Sensor Color CMOS
Video Format / Pixels NTSC: 640 (H) x 480 (V)
Horizontal Resolution 400 TVL
Shutter Speed 1/30 ~ 1/625, 000 sec.
Minimum Illumination 1.0 LUX @ F1.2 (IR Off)
0 LUX (IR LEDs ON)
IR Range Up to 20 ft (6 m); 6 LEDs
Video Output Comp. 1.0 Vpp @ 75ohm
3.9 mm F2.8
Lens / Lens Mount
60° (diagonal)
Field of View (FOV)
Termination Video: RCA Male
Audio: RCA Male
Power Requirement 7.5V DC ±10%
Power Consumption 115 mA max
Operating Temp. 14°F ~ 122°F
(-10°C ~ 50°C)
1.97" x 3.74" x 3.15"
Dimensions (WxDxH)
50 mm x 95 mm x 80 mm
Weight 3.5 oz. /100 g
Dimensions
1.97"
(95mm)
(50mm)
3.15"
(80mm)
It's all on the Web!
Product Information
User Manuals
Quick Start Guides
VISIT:
3.74"
www.lorexcctv.com
Lorex Technologies Inc.
Copyright © 2009 Lorex Technologies Inc.
As our products are subject to continuous
improvement, Lorex reserves the right to
modify product design, specifications and
prices, without notice and without incurring
any obligation. E&OE
Specification Sheets
Software Upgrades
Firmware Upgrades
WEATHERPROOF COLOR
MINI-CAMERA
with Night Vision
MODEL: SG6185W

QUICK START GUIDE

English Version 2.0
