Lorex SG6110X Quick Setup Manual

ACCESSORY 2.4 GHz 4 CHANNEL B&W
MODEL SG6110X - QUICK SET UP GUIDE
1. UNPACK SYSTEM CONTENTS FROM THE
GIFTBOX
• Wireless B&W Camera
• Battery Compartment
• Power Adapter
• Metal Mounting Bracket and Screws
WIRELESS B&W CAMERA
POWER ADAPTER
WIRELESS CAMERA – BATTERY OPTION
3. WIRELESS CAMERA – INSTALLATION
1. Attach the stand base to the wall or ceiling where you want to install the camera. Locate a wall stud or ceiling joist and secure
bracket using the three supplied screws.
2. Attach the camera to the stand and firmly tighten the swivel..
3. Attach the camera with the stand to the stand base and firmly tighten the joint knob on the stand base.
4. Connect the supplied 12V 500mA DC adapter to the DC IN jack at the rear of the camera and plug it into the electrical outlet.
Your wireless camera has both AC or battery option. When using the AC option with rechargeable batteries, your camera will
automatically switch to back up battery feature during a power outage providing you with uninterrupted power to the camera. The
battery option also provides you the flexibility to move the camera from room to room.

WIRELESS CAMERA - AC OPTION ONLY

1. Ensure the power switch on the camera is turned OFF.
2. Connect one end of the power supply to the DC IN jack located at the back of the camera. Plug the other end into an electrical outlet

WIRELESS CAMERA - USING RECHARGEABLE BATTERIES

1. Insert 8 rechargeable 'AA' batteries (not included) into the camera battery compartment. WARNING: TO PREVENT INJURY
AND/OR DAMAGE TO THE UNIT, ENSURE THE BATTERIES ARE ALIGNED PROPERLY AND BATTERY TYPES ARE NOT
MIXED.
2. Ensure the slide switch labeled Recharge/Alkaline is set to the 'Rechargeable' setting.
3. Carefully slide the batter compartment into the camera
4. Ensure the power switch on the camera is turned OFF.
5. Connect one end of the power supply to the DC IN Jack located at the back of the
camera. Plug the other end into an electrical outlet.

WIRELESS CAMERA - USING ALKALINE BATTERIES

1. Insert 8 alkaline 'AA' batteries (not included) into the camera battery compartment. WARNING: TO PREVENT INJURY AND /OR
DAMAGE TO THE UNIT, ENSURE THE BATTERIES ARE ALIGNED PROPERLY AND BATTERY TYPES ARE NOT
MIXED
2. Ensure the slide switch labeled Rechargeable/Alkaline is set to the 'Alkaline' setting.
3. Carefully slide the battery compartment into the camera
4. Ensure the power switch on the camera is turned OFF.
5. Connect one end of the power supply to the DC IN Jack located at the back of the camera. Plug the other end into an electrical
outlet
WIRELESS CAMERA SYSTEM
BATTERY COMPARTMENT
SLIDE IN
video and audio signals may be intercepted without your

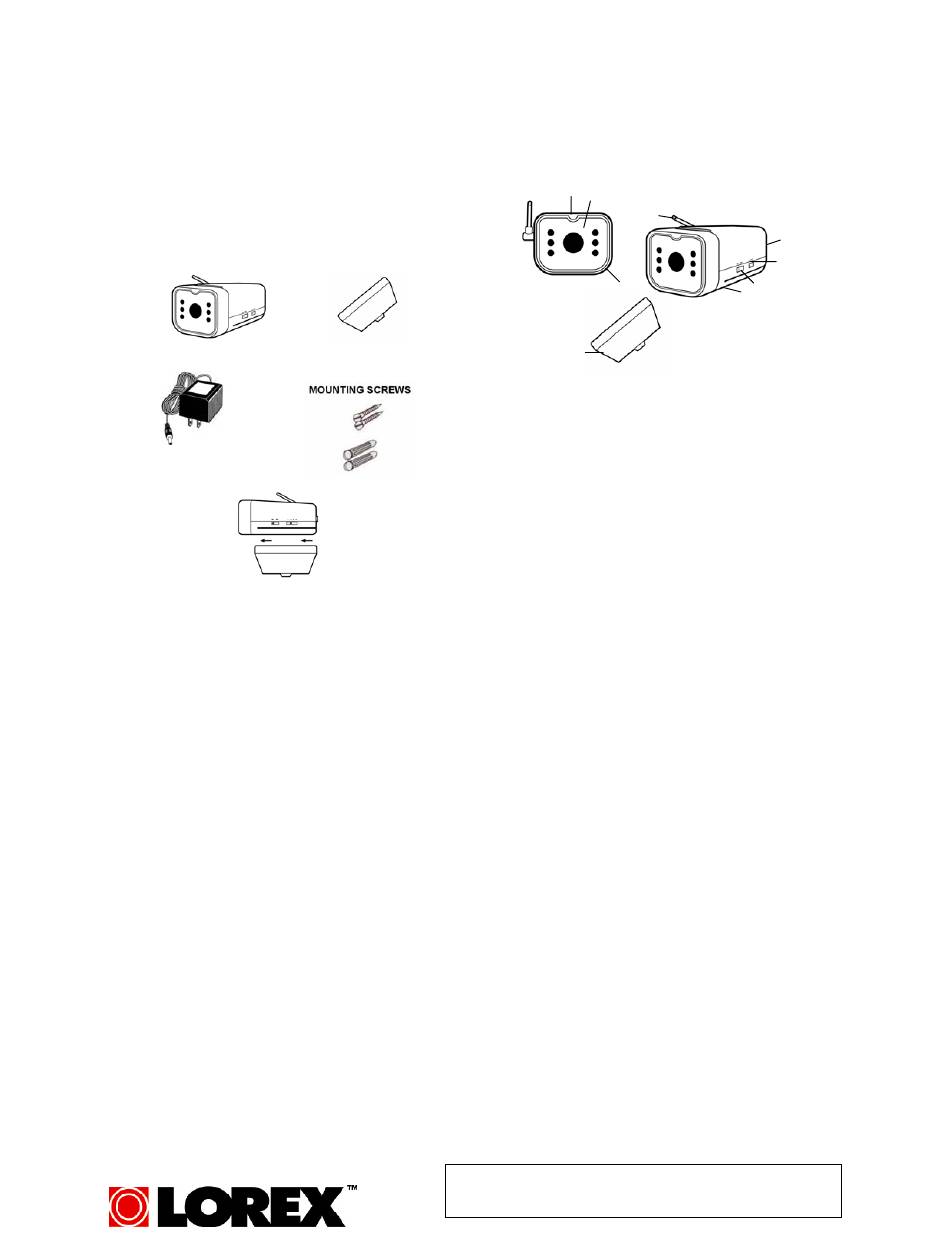

2. CAMERA CONTROLS & FUNCTIONS
SIDE VIEW
FRONT VIEW
3
2
4
1
5
1. LENS
B&W
2. MICROPHONE
Built-in condenser microphone provides
audio capability from camera to monitor
television
3. 6 INFRA RED LED's - Enhances
picture quality in low light conditions.
(available in B&W system only)
4. 2.4 GHz ANTENNA
High gain directional dipole antenna
sends Audio and Video signals to the
monitor.
5. BATTERY COMPARTMENT
Provides 4-5 hours of power
to camera. Requires 8 rechargeable
NiCd/NiMh batteries, or 8 1.5V alkaline
batteries
This product broadcasts over public airwaves and its
consent.
9
7
8
6
6. STAND MOUNTING SOCKET
Reinforcement lock for camera stand.
7. CHANNEL SELECTOR SWITCH
Slide switch for the channel 1-4
selection.
8. ON/OFF POWER SWITCH
Controls power to the camera. Note:
Please ensure you set the switch to the
OFF position before plugging the
AC adapter into the unit.
9. DC IN JACK
Plug the 12V(500mA) AC Adapter in
here.
