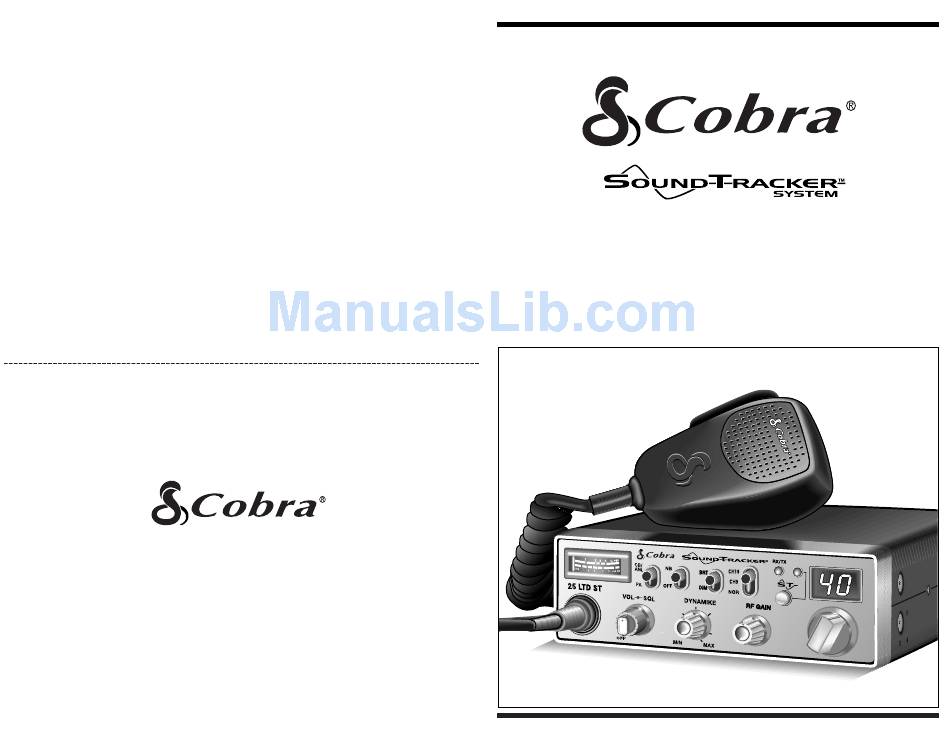

OPERATING INSTRUCTIONS FOR YOUR
40 CHANNEL
CITIZENS BAND
2-WAY MOBILE RADIO
Model
25 LTD ST
Cobra Electronics Corporation
6500 W. Cortland Street
Chicago, IL 60707
PRINTED IN HONG KONG
©COBRA ELECTRONICS CORP. 1997
480-205-P-001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 25 LTD ST and is the answer not in the manual?

Questions and answers

Related Manuals for Cobra 25 LTD ST

Summary of Contents for Cobra 25 LTD ST

  • Page 1 OPERATING INSTRUCTIONS FOR YOUR 40 CHANNEL CITIZENS BAND 2-WAY MOBILE RADIO Model 25 LTD ST Cobra Electronics Corporation 6500 W. Cortland Street Chicago, IL 60707 PRINTED IN HONG KONG ©COBRA ELECTRONICS CORP. 1997 480-205-P-001...

  • Page 2: Table Of Contents

    How To Use Your Citizens Band 2-Way Mobile Radio Model 25 LTD ST Contents The CB Story ...1 SoundTracker System ...1 Specifications ...2,3 Installation Location...4 Mounting Connections ...4, 5 CB Antenna ...6 Ignition Noise Interference ...7 In House Operation...7 Operation Controls and Indicators ...8, 9, 10...

  • Page 3: Specifications

    Specifications FREQUENCY RANGE The COBRA 25 LTD ST transceiver represents one of the most advanced AM two- way radios ever designed for use as a Class D station in the Citizens Radio Service. This unit features advanced Phase Lock Loop (PLL) circuitry providing complete coverage of all 40 channels as shown below.

  • Page 4: Installation

    Installation Location Plan the location of the transceiver and microphone bracket before starting the installation. Select a location that is convenient for operation and does not inter- fere with the driver or passengers in the vehicle. In automobiles, the transceiver is usually mounted to the underneath of the dash panel, with the microphone bracket beside it.

  • Page 5: Cb Antenna

    The unit requires very little current and therefore will not significantly discharge the vehicle battery. Even though the COBRA 25 LTD ST has an automatic noise limiter, in some instal- lations ignition interference may be high enough to make good communications impossible.

  • Page 6: Operation

    Operation Controls and Indicators Refer to controls, indicators and connectors as illustrated below: A. Front Panel MICROPHONE CONNECTOR. Front panel microphone connector. OFF/ON/VOLUME. Turn clockwise to turn power on and set the desired listening volume. SQUELCH. This control is used to cut off or eliminate receiver back- ground noise in the absence of an incoming signal.

  • Page 7: Operating Procedure To Receive

    Operation (Cont.) SOUNDTRACKER™ INDICATOR. A red LED will illuminate when the SoundTracker system is engaged on your CB. SOUNDTRACKER™ SWITCH. Depressing this button turns on the SoundTracker system in your CB. LED CHANNEL DISPLAY. The selected channel will be displayed. B.

  • Page 8: Operating Procedure To Transmit

    Operation (Cont.) Operating Procedure to Transmit Be sure the operator has read and understands part 95, F.C.C. Rules and Regulations prior to operating the transmitter. Select the desired channel. Set the DYNAMIKE control fully clockwise. The receiver and transmitter are controlled by the press-to-talk switch on the microphone.

  • Page 9: Maintenance And Adjustment

    Maintenance and Adjustment The COBRA CB transceiver is specifically designed for the environment encoun- tered in mobile installations. The use of all solid state circuitry and its light weight result in high reliability. Should a failure occur, however, review the following, then if necessary, replace parts only with identical parts.

  • Page 10: If You Think You Need Service

    Ship prepaid and insured by way of a traceable carrier (to avoid loss in transit) such as United Parcel Service (UPS), Roadway Parcel Service (RPS) or First Class Insured Mail to Cobra Factory Service, Cobra Electronics Corporation, 6500 W. Cortland St., Chicago, IL 60707. Cobra is not respon- sible for units not received if package has not been properly insured.

  • Page 11: Warranty And Service

    Mail to: Cobra Accessories Dept. 6500 W. Cortland St., Chicago, IL 60707 Make check or money order (no stamps) payable to Cobra Electronics and mail with this order form to: Cobra Accessories Dept. 6500 W. Cortland St., Chicago, IL 60707 Call 773-889-3087, or fax 773-622-2269 for credit card orders Allow 4 to 6 weeks for delivery.
