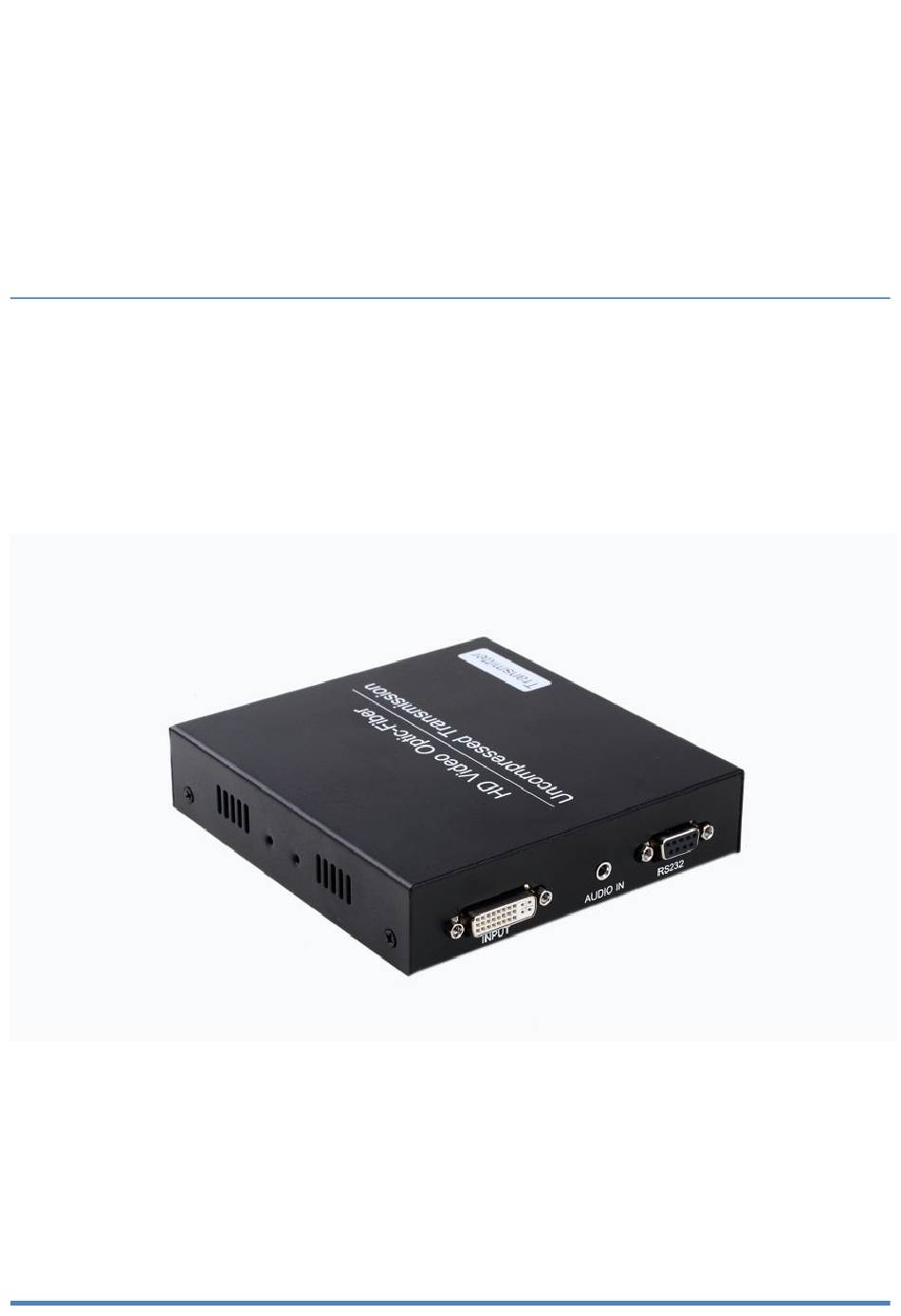

- Page 1 EODD-01001 DVI Fiber Optic Extender User Manual VER: V2.0...
- Page 2 1. Description The EODD-01001 Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, EDID copy, RS232 signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
- Page 3 3. Specifications Parameter Description Standards DVI 1.0; HDCP 1.2 Maximum pixel clock 165MHz Maximum data rate 6.75Gbps Video Resolution range Up to 1920X1080P@60Hz Connector DVI-D Impedance 100Ω Interface 3.5mm earphone seat Audio Signal type Stereo Interface DB9 socket Signal direction Unidirectional RS232 Baud rate...
- Page 4 Receiver: Port name Description DVI IN/OUT DVI signal input/output Audio IN/OUT Stereo audio signal input/output EDID button, press 3 second to copy EDID EDID of display device RS232 DB9 socket DC/5V Power adapter socket Fiber LC connector LED indicator Description System power indicator 5.
- Page 5 1. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver, 2. Connect an DVI cable between the DVI input port of transmitter and the DVI output port of the video source, 3. Connect the DVI output port of receiver to the display device with DVI cable, 4.
- Page 6 8. Warranty Thank you very much for using our products. The warranty time is one year and life-long maintenance. During this period, any belongs to under normal usage circumstance cause because of the product quality’s problem of breakdown, our company will be responsible for giving free maintain.
