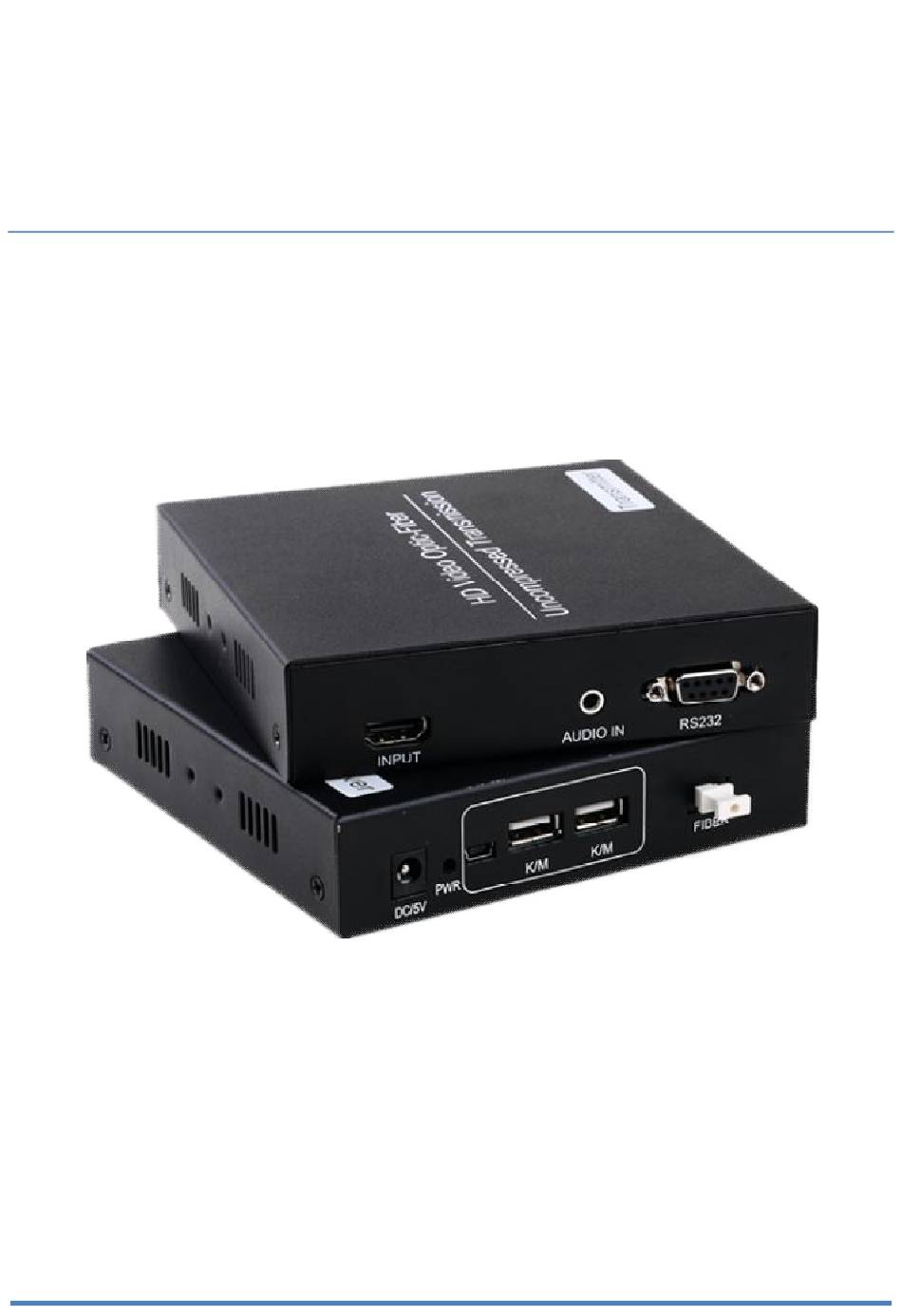

- Page 1 EOHD-00101 HDMI Fiber Optic Extender User Manual VER: V2.0...
- Page 2 1. Description The EOHD-00101 Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, EDID pass-through, KVM signal, RS232 signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
- Page 3 3. Specifications Parameter Descrip o n Standards HDMI 1.3; HDCP 1.2 Maximum pixel clock 165MHz Maximum data rate 6.75Gbps Video Resolu o n range U p to 1 920X1080P@ 6 0Hz Connector Female HDMI type A Impedance 100Ω Interface 3.5mm earphone seat Audio Signal type Stereo...
- Page 4 4. Panel Transmitter: Receiver: Port name Description HDMI IN/OUT HDMI input/output Audio IN/OUT Stereo audio signal input/output RS232 DB9 socket 1. Transmitter connect to PC 2. Receiver connect to keyboard and mouse DC/5V Power adapter socket Fiber LC connector LED indicator Description System power indicator Note: HDMI audio output is default, when detect external audio input, switch to external audio.
- Page 5 5. Package list l HDMI optical fiber transmitter ………. 1 pc l HDMI optical fiber receiver ……………. 1 pc l Power adapter ………………………………..2 pcs l User manual ………………………………….. 1 pc 6. Installation 1. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver, 2.
- Page 6 8. Warranty Thank you very much for using our products. The warranty time is one year and life-long maintenance. During this period, any belongs to under normal usage circumstance cause because of the product quality’s problem of breakdown, our company will be responsible for giving free maintain.
