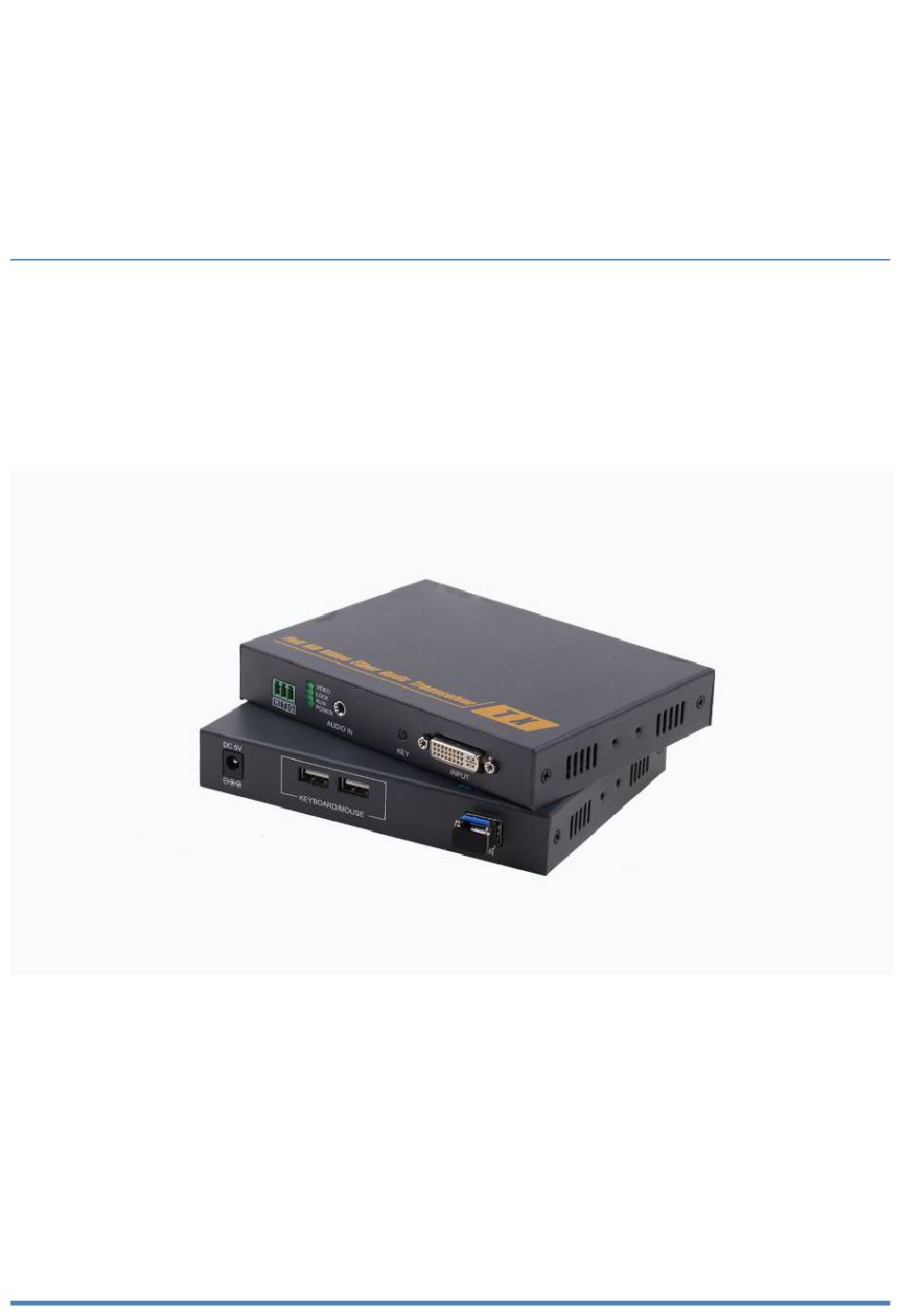

- Page 1 EODS-01002 DVI Fiber Optic Extender User Manual VER: V2.0...
- Page 2 1. Description The EODS-01002 Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, RS232 signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
- Page 3 3. Specifications Parameter Description Standards DVI 1.0; HDCP 1.2 Maximum pixel clock 165MHz Maximum data rate 6.75Gbps 1920*1080@60Hz 1920*1080@50Hz 1920*1080@30Hz 1920*1080@25Hz Video Resolution 1920*1080@24Hz 1080I@60Hz 1080I@50Hz 1280*720@60Hz 1280*720@50Hz Connector DVI-D Impedance 100Ω Interface 3.5mm earphone seat Audio Signal type Stereo To PC: MINI-USB Interface To keyboard and mouse: USB-A...
- Page 4 Receiver: Port name Description DVI IN/OUT DVI signal input/output Audio IN/OUT Stereo audio signal input/output RS232 Serial port( G: Ground, T: transmit, R: receive ) DC/5V Power adapter socket FIBER SFP module---LC connector K/M TO PC Mini-USB connect to PC KEYBOARD/MOUSE USB connect to keyboard and mouse LED indicator...
- Page 5 6. Installation 1. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver, 2. Connect an DVI cable between the DVI input port of transmitter and the DVI output port of the video source, 3.
- Page 6 8. Warranty Thank you very much for using our products. The warranty time is one year and life-long maintenance. During this period, any belongs to under normal usage circumstance cause because of the product quality’s problem of breakdown, our company will be responsible for giving free maintain.
