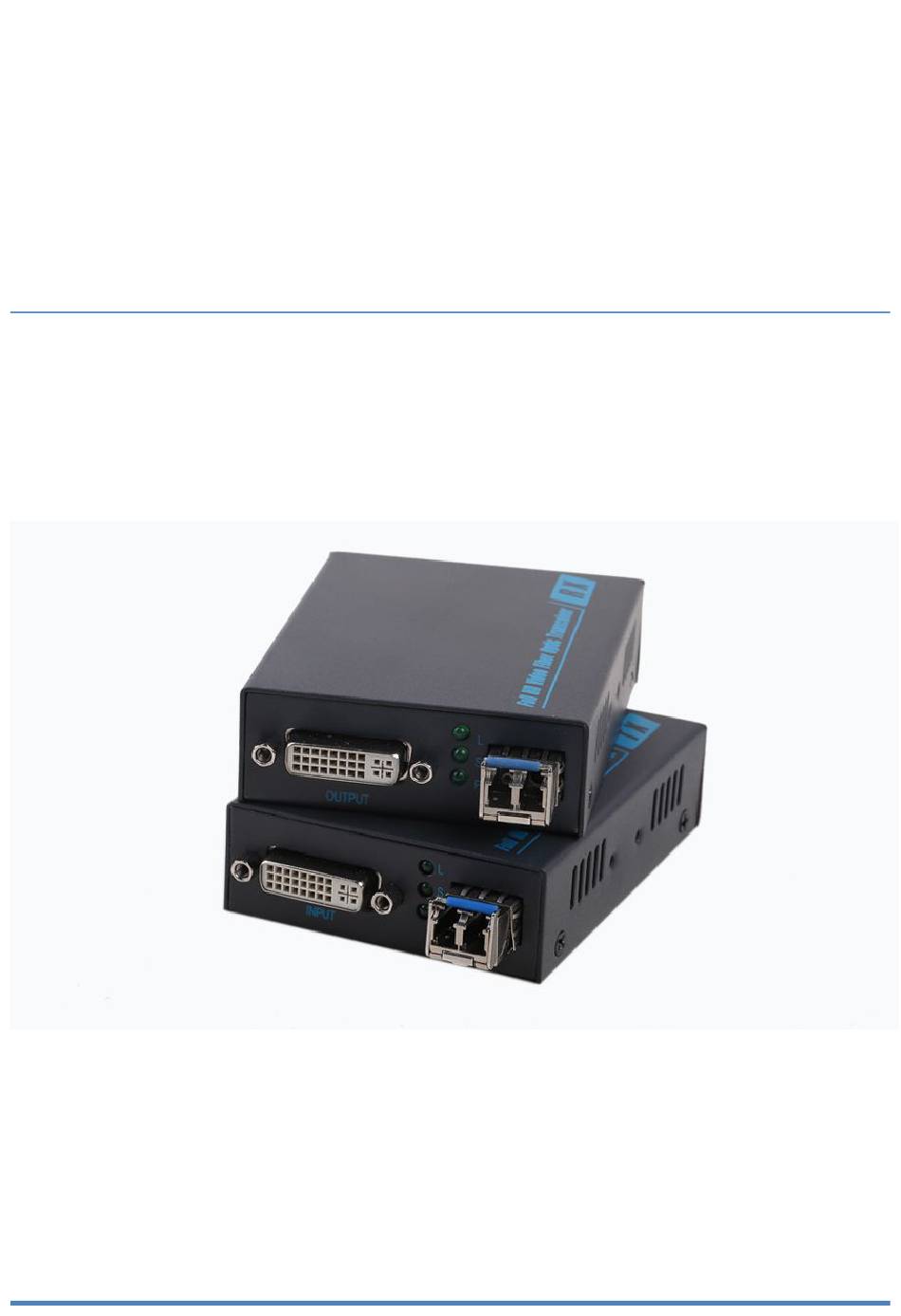

- Page 1 EODD-00201 DVI Fiber Optic Extender User Manual VER: V2.0...
- Page 2 1. Description The EODD-00201 Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, EDID copy function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
- Page 3 3. Specifications Parameter Description Standards DVI 1.0; HDCP 1.2 Maximum pixel clock 165MHz Maximum data rate 6.75Gbps Video Resolution range Up to 1920X1200@60Hz Connector DVI-D Impedance 100Ω Interface SFP model – LC connector Fiber type Single-mode Wavelength Single-mode 1310nm(optional) Optical Interface bandwidth 10Gbps fiber Single-mode fiber: standard 2km；...
- Page 4 4. Panel Transmitter: Receiver: Port name Description DVI IN/OUT DVI signal input/output EDID button, press 3 second to copy EDID EDID of display device DC/5V Power adapter socket FIBER SFP model --- LC connector LED indicator Description Optical fiber signal connection indicator Video signal connection indicator System power indicator...
- Page 5 5. Package list DVI optical fiber transmitter ………. 1 pc DVI optical fiber receiver ……………. 1 pc Fiber optic module TX/RX ………….. 1 set Power adapter …………………………….2 pcs User manual ………………………………. 1 pc 6. Installation 1.
- Page 6 8. Warranty Thank you very much for using our products. The warranty time is one year and life-long maintenance. During this period, any belongs to under normal usage circumstance cause because of the product quality’s problem of breakdown, our company will be responsible for giving free maintain.
