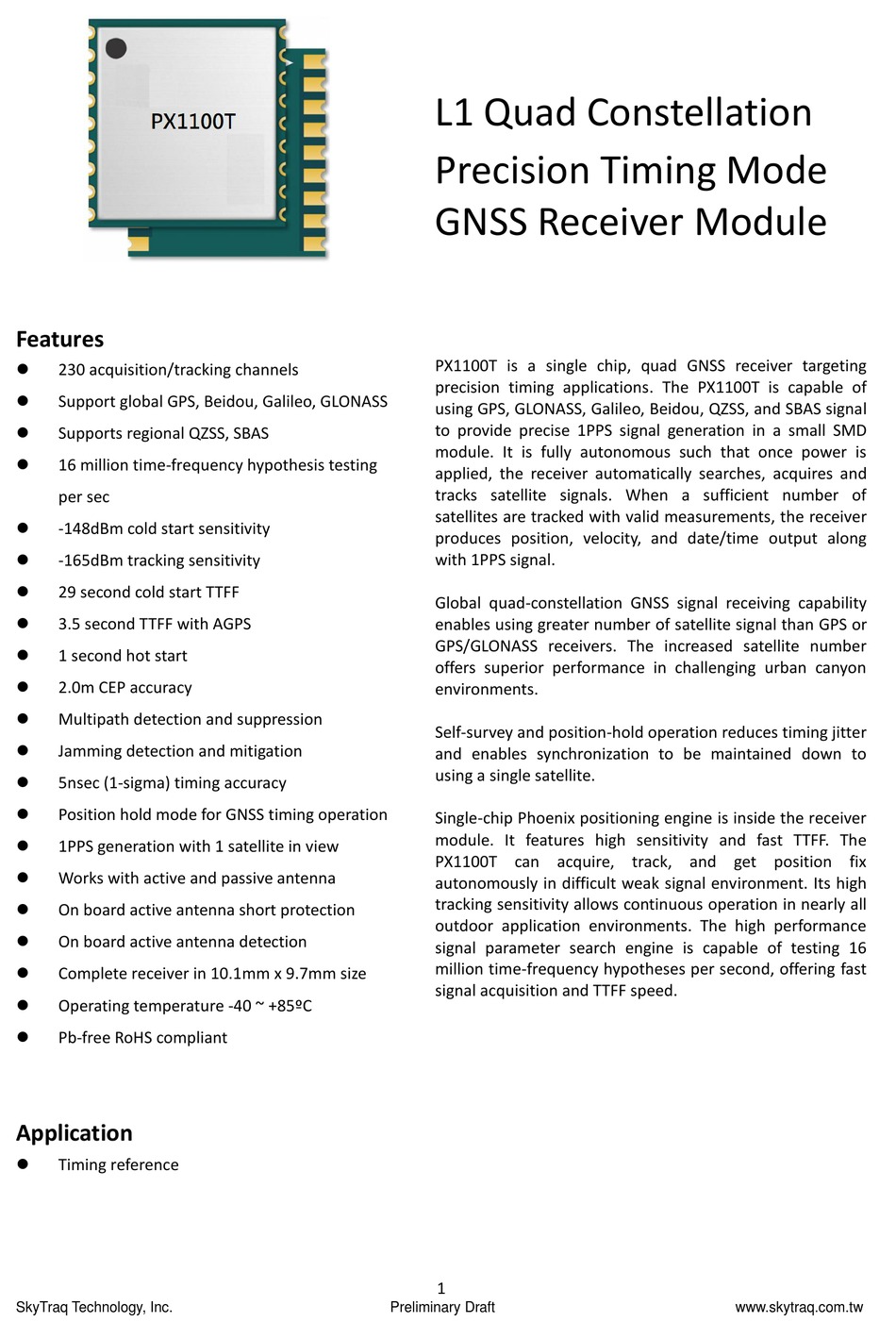

SkyTraq PX1100T Manual

Features
⚫
230 acquisition/tracking channels
⚫
Support global GPS, Beidou, Galileo, GLONASS
⚫
Supports regional QZSS, SBAS
⚫
16 million time-frequency hypothesis testing
per sec
⚫
-148dBm cold start sensitivity
⚫
-165dBm tracking sensitivity
⚫
29 second cold start TTFF
⚫
3.5 second TTFF with AGPS
⚫
1 second hot start
⚫
2.0m CEP accuracy
⚫
Multipath detection and suppression
⚫
Jamming detection and mitigation
⚫
5nsec (1-sigma) timing accuracy
⚫
Position hold mode for GNSS timing operation
⚫
1PPS generation with 1 satellite in view
⚫
Works with active and passive antenna
⚫
On board active antenna short protection
⚫
On board active antenna detection
⚫
Complete receiver in 10.1mm x 9.7mm size
⚫
Operating temperature -40 ~ +85ºC
⚫
Pb-free RoHS compliant
Application
⚫
Timing reference
SkyTraq Technology, Inc.
L1 Quad Constellation
Precision Timing Mode
GNSS Receiver Module

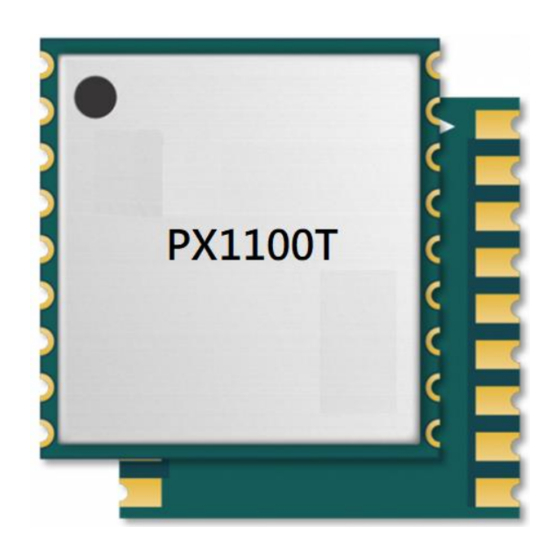

PX1100T is a single chip, quad GNSS receiver targeting
precision timing applications. The PX1100T is capable of
using GPS, GLONASS, Galileo, Beidou, QZSS, and SBAS signal
to provide precise 1PPS signal generation in a small SMD
module. It is fully autonomous such that once power is
applied, the receiver automatically searches, acquires and
tracks satellite signals. When a sufficient number of
satellites are tracked with valid measurements, the receiver
produces position, velocity, and date/time output along
with 1PPS signal.
Global quad-constellation GNSS signal receiving capability
enables using greater number of satellite signal than GPS or
GPS/GLONASS receivers. The increased satellite number
offers superior performance in challenging urban canyon
environments.
Self-survey and position-hold operation reduces timing jitter
and enables synchronization to be maintained down to
using a single satellite.
Single-chip Phoenix positioning engine is inside the receiver
module. It features high sensitivity and fast TTFF. The
PX1100T can acquire, track, and get position fix
autonomously in difficult weak signal environment. Its high
tracking sensitivity allows continuous operation in nearly all
outdoor application environments. The high performance
signal parameter search engine is capable of testing 16
million time-frequency hypotheses per second, offering fast
signal acquisition and TTFF speed.
1
Preliminary Draft www.skytraq.com.tw
