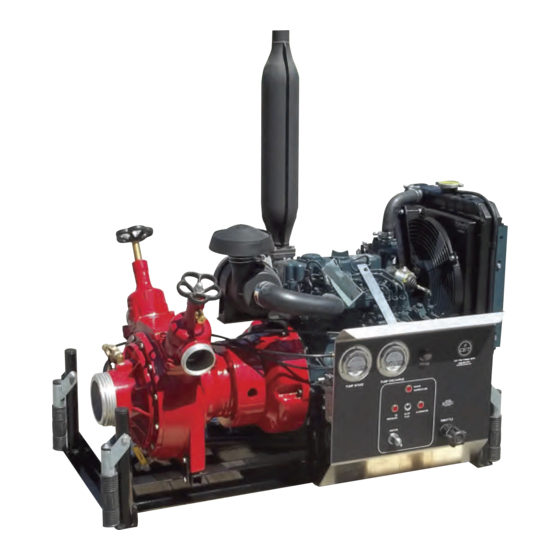

CET PFP-25hp-DSL Instruction Manual

PFP-25hp-DSL
Congratulation, you have just purchased a C.E.T. portable pump. If you follow the procedures in this
operation manual, it will give you years of use without any problems.
ENGINE SPECIFIC TIONS
• Kubota 25hp at 3600 RPM, water cooled engine.
• 3-cylinder diesel engine
• Electric start.
• 6 gallon (22 l) detachable fuel tank.
PUMP UNIT SPECIFIC TIONS
• C.E.T. two stage centrifugal pump.
• Pump body made from high resistant aluminum alloy.
• Bronze impellers.
• Mechanical shaft seal.
• Stainless steel pump shaft.
• Electric priming system, guaranteed up to 20' (6 meter) lift.
• Two 2 ½" (65 mm) delivery outlets.
• One 4 " (100 mm) suction inlet.
• Dimensions : Length : 40 ¼ " (1022 mm);
Width : 26 " (660 mm); Height : 34 ¼ " (870 mm).
• Weight : 350 lbs (134 kg).
CONTROL P NEL
• Engine start/stop switch.
• Throttle control lever.
• Operating panel light.
• Pilot lights.
• Pressure gauge.
• Vacuum pressure gauge.
PERFORM NCE
465 GPM (1760 LPM) @ 10 PSI (0.7 bar)
425 GPM (1608 LPM) @ 25 PSI (1.7 bar)
325 GPM (1230 LPM) @ 50 PSI (3.5 bar)
200 GPM (757 LPM) @ 100 PSI (6.9 bar)
100 GPM (378 LPM) @ 125 PSI (8.6 bar)
30 GPM (113 LPM) @ 150 PSI (10.3 bar)
Your pump comes with a full year warranty on all mechanical components.
ACCEPT ONLY THE BEST 75 Hector St., P.O. Box 90, Pierreville (Québec) Canada J0G 1J0
