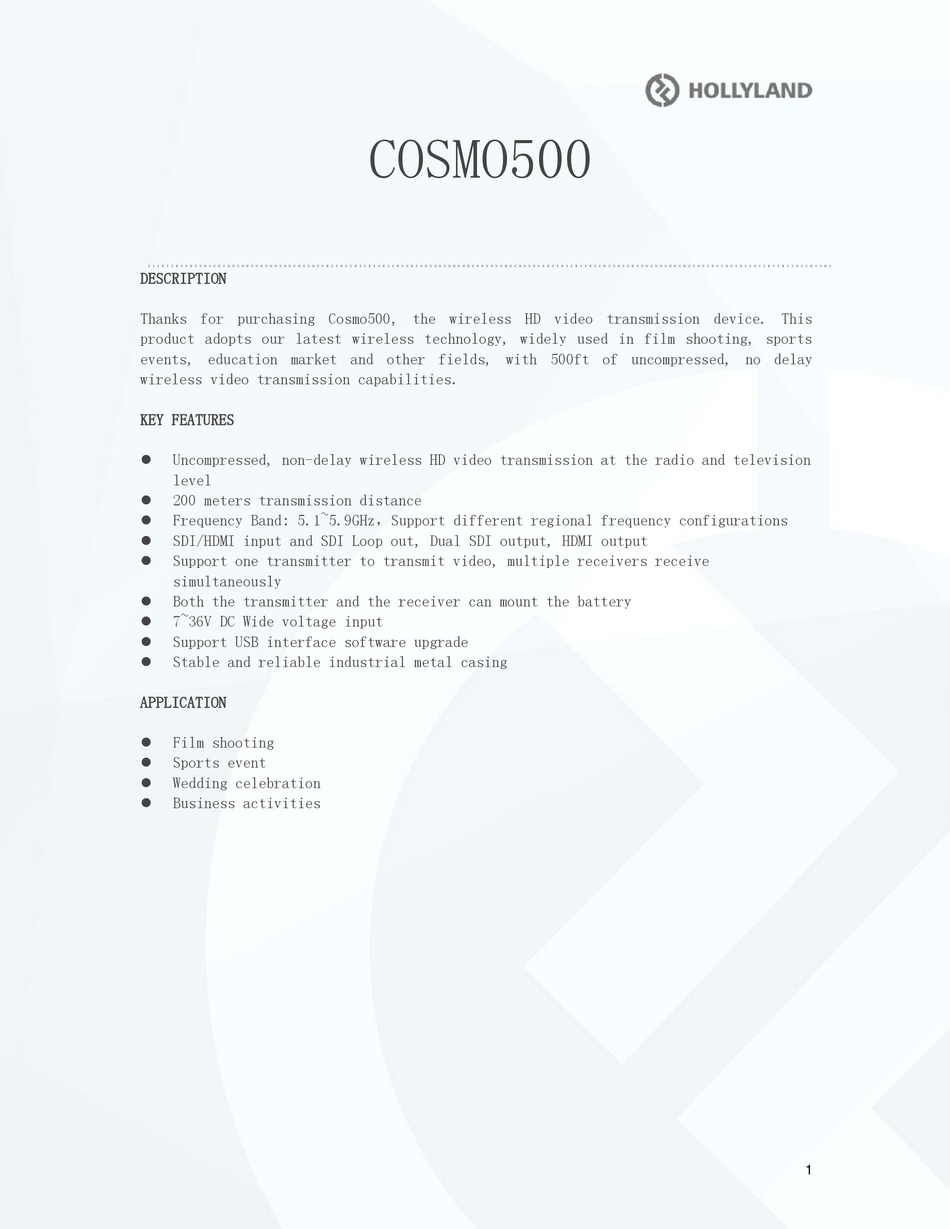

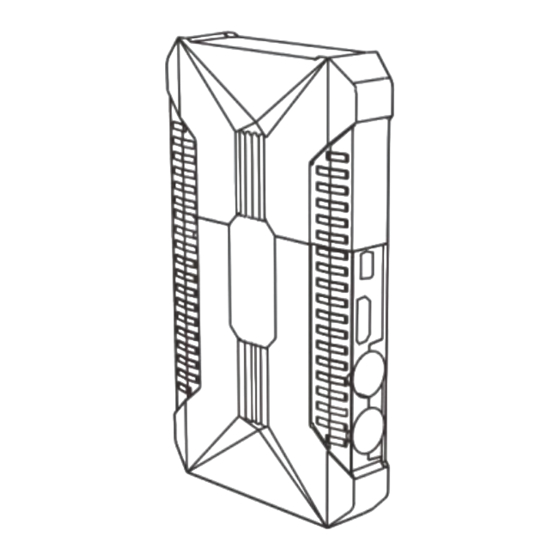

COSMO500 DESCRIPTION Thanks for purchasing Cosmo500, the wireless HD video transmission device. This product adopts our latest wireless technology, widely used in film shooting, sports events, education market and other fields, with 500ft of uncompressed, no delay wireless video transmission capabilities.
PACKING LIST 1.Receiver 2.Transmitter 3.User manual 4.7-inch magic arm 5.Crab Clamp 6.5GHz Antenna 7.Mushroom Antenna 8.DC/Lemo Conversion Cable 9.USB cable...
Page 3
STANDARD SETUP The wireless high-definition video transmission device adopts the latest wireless communication technology, and can realize uncompressed and delay-free high-definition wireless video transmission at the radio and television level. The transmitter supports SDI, HDMI input, and SDI loop out. The receiver supports dual SDI output and HDMI output.
Page 4
This product has mushroom antenna accessories. When the height difference between the transmitter and the receiver is large, it is recommended to use a mushroom antenna to improve the stability of wireless transmission.
Page 5
PRODUCT INTERFACES (1) TRANSMITTER 1.Mini USB interface 2.HDMI input interface 3.3G-SDI Loop out interface 4.3G-SDI input interface 5.Video indicator 6.Link indicator 7.Digital tube 8.CH Button 9.Enter Button 10.3.5mm Analog audio input interface 11.DC Power Switch 12.DC Power interface 13.3/8-16 Screw hole 14.1/4-20 Screw hole 15.RP-SMA Antenna male interface (2) RECEIVER...
4.Signal strength indicator 5.CH Button 6.Enter Button 7.DC power switch 8.DC power input interface 9.Mini USB interface 10.HDMI output interface 11.3G-SDI output interface 1 12.3G-SDI output interface 2 13.1/4-20 Screw holes 14.3/8-16 Screw holes INSTALLATION Product detailed installation steps and precautions 1.Install the antenna as shown below;...
Page 7
PARAMETERS Transmitter Receiver Interface SDI Input (BNC female); SDI 1 Output (BNC female) ; SDI Loop Out (BNC female); SDI 2 Output (BNC female); HDMI Input (Type A female); HDMI Output (Type A female); Antenna Interfaces (RP-SMA DC Power Input, Mini USB; male);...
Page 8
.9/30/50/59.94/60; SDI:3G,HD,and SD-SDI (auto- selected),SMPTE- 259/274/292/296/372/424/425; Output Video HDMI: Format 480p60,576p50,720p50/59.94/60,108 0i50/59.94/60,1080p23.98/24/25/29 .9/30/50/59.94/60; SDI: 3G,HD,and SD-SDI(auto- selected),SMPTE- 259/274/292/296/372/424/425; Input Audio SDI/HDMI embedded 2 channel 24 Format bit/48KHZ Output Audio SDI/HDMI embedded 2 channel 24 Format bit/48KHZ Frequency Band 5.1-5.9GHz, 5.1-5.9GHz, Configurable with China,...
Page 9
only 1 RSSI LED or no LED light, that means the received wireless signal is too weak. Please change to other frequency channels in case some exist interference, or decrease the transmission distance.
