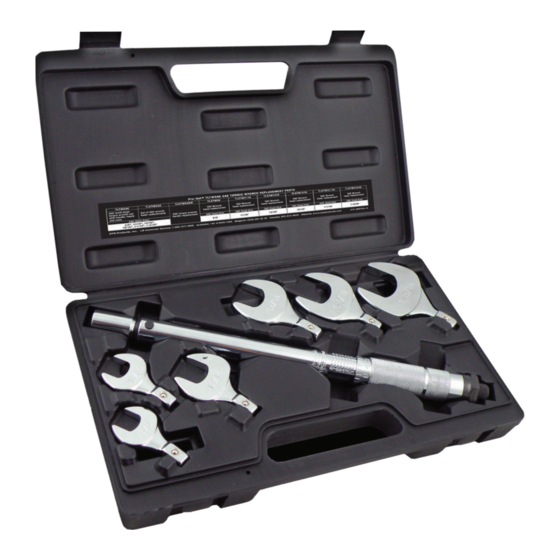

Torque Wrench Kit #TLTWSAE Imperial Instructions for Use Français, Español, Deutsch and latest updates: www.cpsproducts.com cpsproducts.com...
Page 2
BEFORE USE Fig. 1 • To retain wrench accuracy, DO NOT LOOSEN nuts, bolts, etc. USE ONLY Removable FOR TIGHTENING. Wrench End • Apply a small amount of oil between handle and wrench body. Note: If wrench is not used for an extended Wrench Size Socket time, turn handle to lowest torque setting...
Page 3
Foot/Pound Scale (5-80) Inch/Pound Scale (60-960) Fig. 2 Fig. 3 Shown is 30 Center-line ft/lbs. Torque Values Handle Edge Each mark on handle = ½ ft/lb Each mark on handle = 6 in/lb DOWN HANDLE Example 1: Set Wrench to 7 ft/lb a) Position wrench handle so Foot/Pound scale is Torque Handle Scale...
Page 4
Remove Wrench End and place all components back in Storage Case. Store kit in dry location. LOCATIONS REPLACEMENT PARTS CPS PRODUCTS, INC. U.S.A. (Headquarters) 1010 East 31st Street, SAE Multi-Head Torque Hialeah, Florida 33013, USA Wrench Set with handle, heads...
