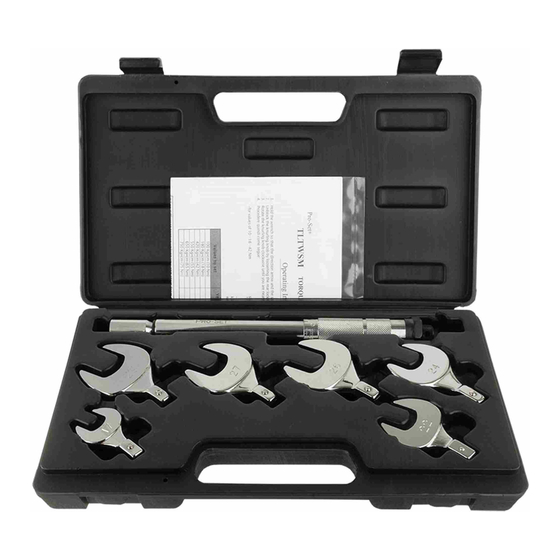

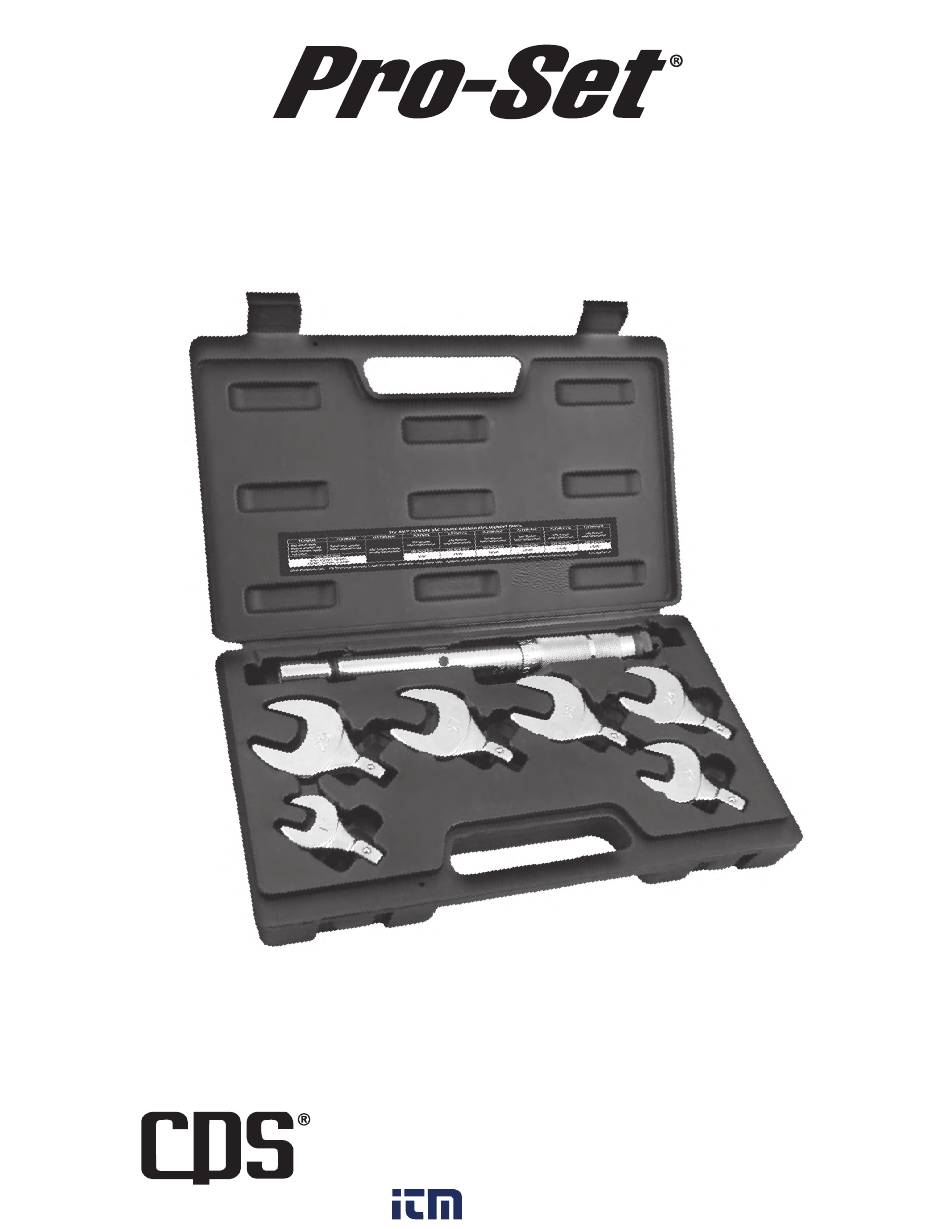

- Page 1 Torque Wrench Kit #TLTWSM Metric (17, 22, 24, 26, 27, 29mm) Instructions for Use 1.800.561.8187 information@itm.com www. .com...
- Page 2 BEFORE USE Fig. 1 • To retain wrench accuracy, DO NOT LOOSEN nuts, bolts, etc. USE ONLY FOR TIGHTENING. • Apply a small amount of oil between Removable handle and wrench body. Wrench Note: If wrench is not used for an extended Wrench Size time, turn handle to lowest torque setting and Arrow...
- Page 3 Newton-Meter Scale (10-75) Fig. 2 Shown is setting Center-line for 10 Nm Torque Values Handle Edge Each mark on handle = DOWN HANDLE Example 1: Set Torque Wrench to 14 Nm a) Twist handle until “10” mark aligns with Center-line and 10 Nm torque value. b) Twist handle RIGHT 4 detents (1 detent = 1 Nm) stopping at the “4 ”...
- Page 4 Fig. 3 Standard Newton/Meter Torque Settings On #TLTWSM ORQUE ETTINGS ANDLE ETTING RENCH CALE 75 Nm (100 Kg x cm) 65 Nm (100 Kg x cm) 55 Nm (100 Kg x cm) 42 Nm (100 Kg x cm) 18 Nm (100 Kg x cm) 10 Nm (100 Kg x cm) STORAGE Loosen Locking Knob.
