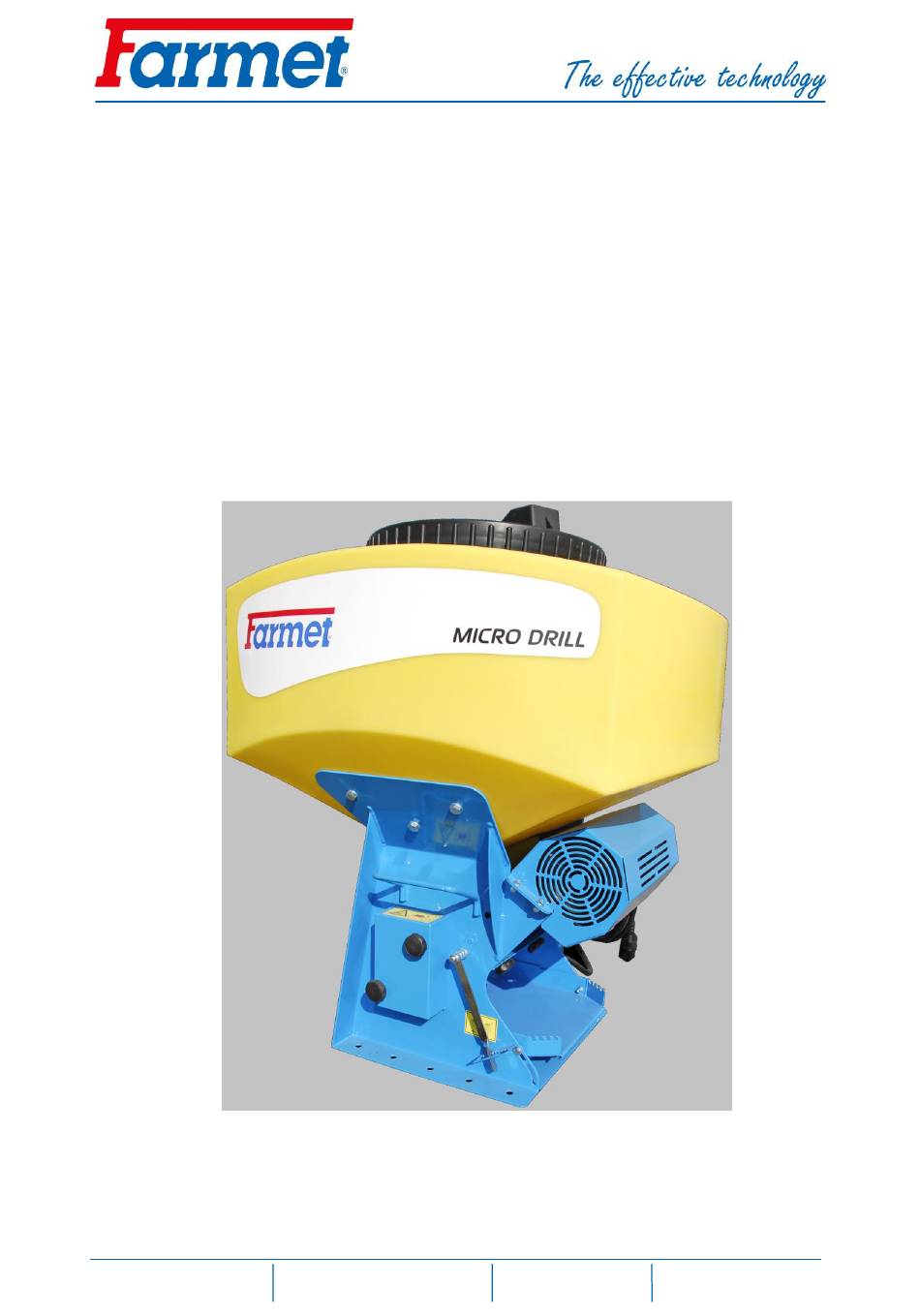

- Page 1 OPERATING INSTRUCTIONS MICRO DRILL Issue: 1 | Applicable as of: 30. 11. 2,015 Farmet a. s. telephone: Company Reg. web: www.farmet.cz Jiřinková 276 +420,491,450,111 No.: 46504931 e-mail: farmet@farmet.cz CZ 552 03 Česká Skalice fax: +420,491,450,136 VAT Payer ID: GSM: +420,774,715,738...
- Page 2 Operating Instructions MICRO DRILL Dear Customer, We are very pleased and congratulate you to you decision to purchase and we wish you much success in work with the device! Before start of the device all instructions in the Operating Instructions must be carefully read!
-
Page 3: Table Of Contents
Operating Instructions MICRO DRILL CONTENTS CONTENTS ..........................3 Protection equipment ........................4 A. MACHINE TRANSPORT WITH TRANSPORT EQUIPMENT ........4 B. FOR YOUR SAFETY ......................4 Intended use ..........................4 General safety technical regulations and occupational health and safety regulations ... 4 Extension devices ........................ -
Page 4: Protection Equipment
Operating Instructions MICRO DRILL PROTECTION EQUIPMENT The operation and maintenance requires: Close fit clothes Safety goggles and gloves as protection against dust and machine sharp parts A. MACHINE TRANSPORT WITH TRANSPORT EQUIPMENT The transport equipment intended to transport of the machine must feature the load capacity minimum equal to the weight of the transported machine. -
Page 5: Extension Devices
Operating Instructions MICRO DRILL 9) Passengers in the machine and on the working tool are prohibited during the work! 10) Connect the device acc. to the regulations and fix it only to specified equipments! 11) During connection and disconnection of the device to/from the tractor keep special attention! -
Page 6: Design And Function Principles
Operating Instructions MICRO DRILL WARNING WARNING SAFETY LABEL TEXT SAFETY LABEL TEXT LABEL LABEL Before operation carefully Do not stand on the driving read and adhere to the machine!!! Operating Instructions!!! Before maintenance, the Never access the motor must be... -
Page 7: Machine Installation At The Client's Site
Operating Instructions MICRO DRILL 1. MACHINE INSTALLATION AT THE CLIENT'S SITE The operator must install the machine acc. to instructions of the manufacturer, optimally in cooperation with the professional service technician authorized by the manufacturer. On completion of the machine installation, the operator must ensure functional test of all installed parts. -
Page 8: Electric Connections
Operating Instructions MICRO DRILL 1.3 ELECTRIC CONNECTIONS Standardly delivered cables can be connected directly to the 3-pole standard plug of the trailer in the cabin. Attach the other end to the control module. The fuse (30 A) is located at the control module right-hand side. -
Page 9: Blower For Auxiliary Shaft
Operating Instructions MICRO DRILL - Return line (marked yellow) must lead to the trailer oil tank without any pressure!!! - Pressure line (marked red, BG3) can be easily connected to the tractor control unit. - During connection of the hydraulic hoses to the tractor hydraulics it is necessary to ensure, that the hydraulics... -
Page 10: Setting Values Hd)
Operating Instructions MICRO DRILL 3.3. SETTING VALUES HD): The blower creates air flow, which transport the seed through hoses to the diverting plates. Required air pressure and air amount heavily depend on the seed (type and weight), amount, working width and speed. -
Page 11: Diagram (Hd)
Operating Instructions MICRO DRILL Adjusting table of the control valve: WORKING WIDTH WORKING WIDTH WORKING WIDTH SEED SETTING SETTING SETTING ROUGH 2000-2600 2600-3400 MAX. 3400-500 SEED 1200-2000 2000-2600 2600-3400 FINE SEED TIP: A measuring ring is fitted to the hydraulic motor. If the temperature increases to the scale range (from 71 °to 110 °C), the ring turns black. -
Page 12: Hydraulics (Hg)
Operating Instructions MICRO DRILL 3.6. HYDRAULICS (HG) CAUTION: Hydraulic equipment is under high pressure! With confused connection there is i risk of damage of the hydraulic motor! (e.g. lifting/lowering) – danger of injury! switchover function and During connection of the hydraulic motors it is necessary to pay attention to specified connection of the hydraulic hoses! ... - Page 13 Operating Instructions MICRO DRILL TYPES OF SOWING SHAFT - AUXILIARY OPTIONS Red clover Oilseed Buckwheat Mustard Poppy Types of sowing shaft - auxiliary options Grass Granule fertilizers Phacelia Peas, beans The standard supply scope includes 2 completely assembled sowing shafts.
-
Page 14: Sowing Shaft Disassembly And Replacing
Operating Instructions MICRO DRILL CAUTION: The combination of the sowing wheels must be selected to set of the sowing shaft in the control module in ideal case between 20 % and 80 %. Thus also during spreading dependent on the speed at very low, resp. -
Page 15: Soddy Flap (Broom Adjustment)
Operating Instructions MICRO DRILL 4.3 SODDY FLAP (BROOM ADJUSTMENT) The broom is installed above the sowing shaft. This broom can be adjusted by means of the lever on the frame with the scale from + 4 to - 5. If the lever presses the broom to the sowing shaft (scale values - 1 to - 5), the spread amount is slightly decreased. -
Page 16: Working Widths / Sowing Tables
MICRO DRILL 4.5 WORKING WIDTHS / SOWING TABLES The Micro Drill with the electric blower is usable for maximum working width of 6 m and with the hydraulic blower up to 12 m. The spread amount depends on speed of the sowing shaft and travel speed with the sensor installed. The trimming test should be performed to determined the required spread amount before the work. -
Page 17: Use On The Field
Operating Instructions MICRO DRILL 4.7 USE ON THE FIELD To start the sowing proceed as follows: Start the tractor. Turn the control module ON by the „On/Off“ button. Start the blower by the „Blower“ button. ... -
Page 18: Machine Technical Data
Operating Instructions MICRO DRILL On replacing of the working tools with blades use only the suitable tool and gloves! Before works on the electric equipment always disconnect the power supply! During electric welding on the tractor and installed devices always disconnect the cable from the generator and the battery! ... -
Page 19: Cable Extension 5 M
Use of the spreader during winter service Elaborated by: Technical Dept., Farmet a.s., Jiřinková 276, Česká Skalice CZ 552 03, 30th November 2015, All changes and modifications reserved Print errors are reserved, all data and information without any guarantee. - Page 20 Operating Instructions MICRO DRILL 1 EC Declaration on Conformity In compliance with the directive no. 2006/42/EC Manufacturer, APV Technische Produkte Ges m.b H. Dailen 15, A-3753 Hötzelsdorf declares that the product Pneumatic sowing device Machine type identification / product no. (see accepting declaration and title...
