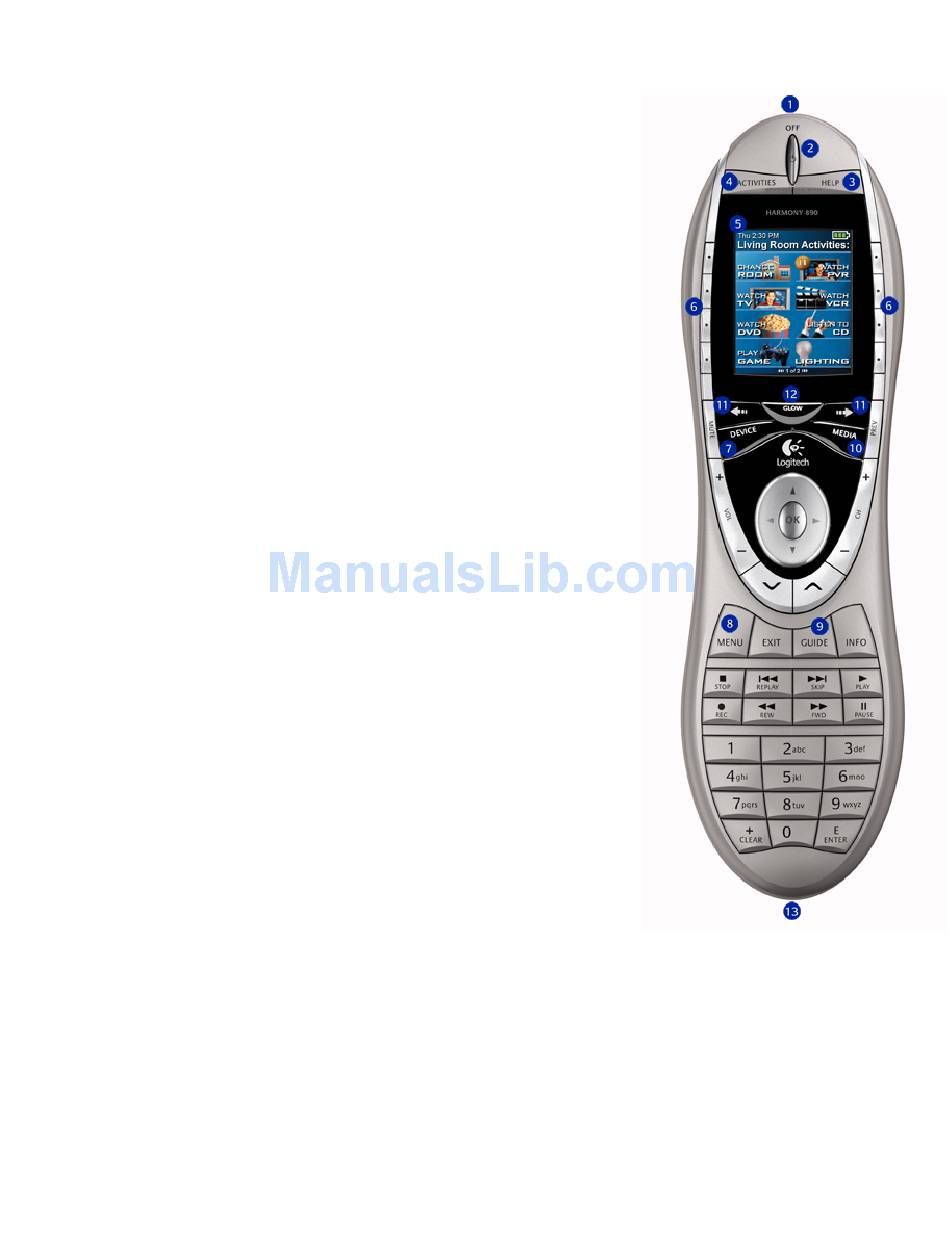

4.2 Logitech Harmony 890 Remote Layout

1) USB CONNECTOR: Information downloaded from
Harmony database through this port.
2) OFF: Turns all devices off with one button press.
3) HELP: Asks simple questions so that the Harmony remote
can troubleshoot when a component is not in the correct state.
4) ACTIVITIES: Pressing the Activities button tells the LCD
screen to display the activities that have been programmed on
the remote.
5) COLOR DISPLAY: Shows activities, devices, features and
settings, as well as on-screen help and TV listings.
6) ON-SCREEN BUTTONS: The buttons on the left and right
side of the screen can select the corresponding commands
and activities listed on the screen.
7) DEVICE: Lists all devices in the entertainment system on
the remote's LCD screen, and allows you to select and fully
control any feature from any device.
8) MENU BUTTONS: For most cable or satellite TV services,
this opens the main menu from which to choose themes or
search for program information.
9) GUIDE: Provides television program listings on TV screen
for services with that feature.
10) MEDIA: In the Watch TV activity, press this button to view
a selection of favorite channels on the LCD screen.
11) LEFT/RIGHT Arrows: Navigates among Harmony LCD
screen pages when there are more than eight choices for a
given menu.
12) GLOW: Produces backlighted glow for instant illumination.
13) INFRARED LEARNING PORT: Includes infrared receiver so the remote can learn
commands from other remotes that are not in the Harmony database.
