HARDWARE CONNECTIONS

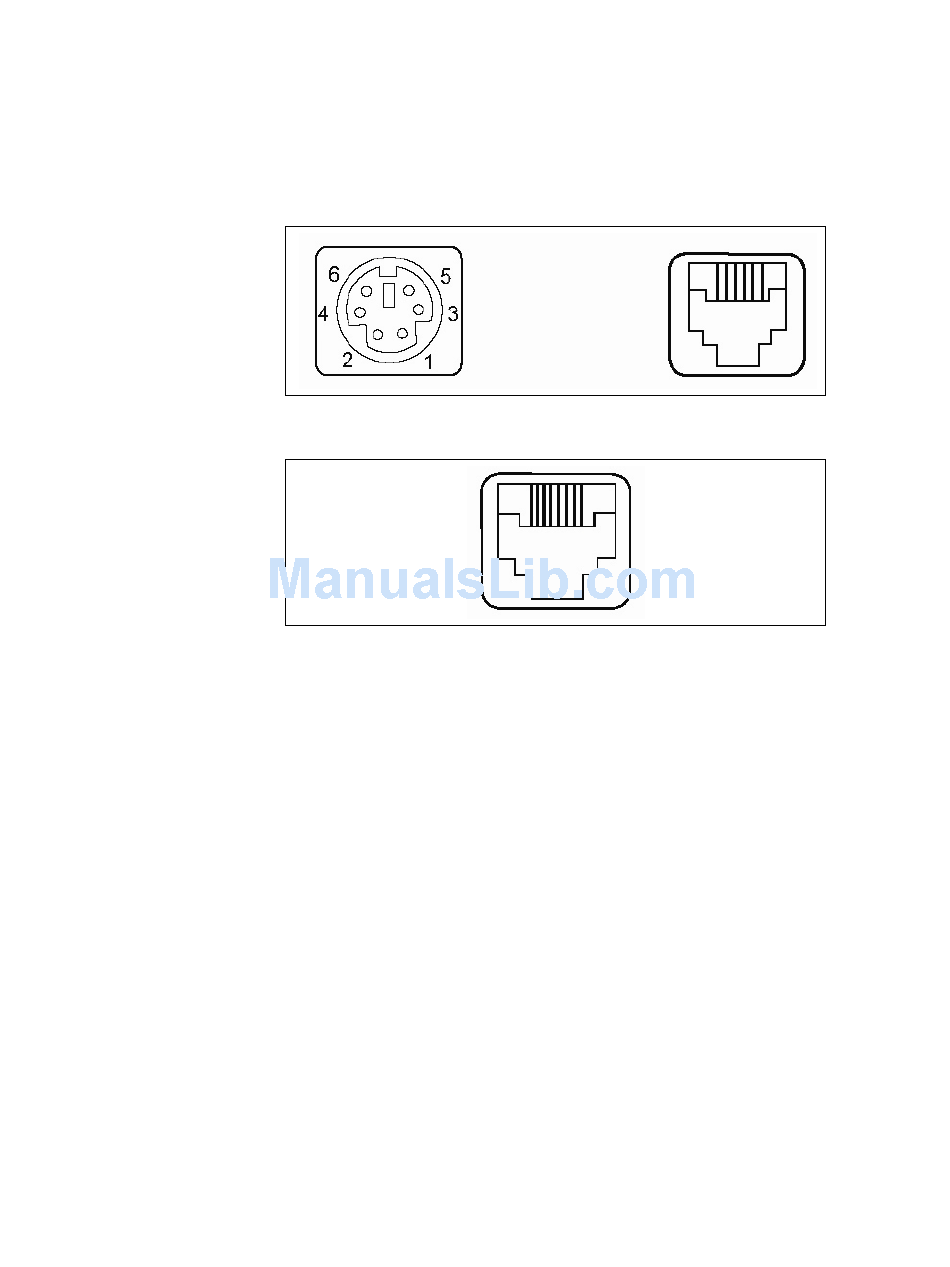

The LK8000 can be connected to a PS/2 computer, or computer terminal. The following diagram
shows how the keyboard connects to the computer and standard keyboard or other keyboard
peripheral (magnetic stripe reader, scanner, etc.).
LK8000/LK8000M
back panel
LK8000U/LK8000MU
back panel
NOTE: Before making any connections it is always advisable to turn off the computer.
A. Connecting the LK8000 to a PC keyboard port:
1. Use the computer interface cable. Plug the PS/2 Male connectors for the keyboard and
mouse into the computer. Connect the RJ11 connector into the "To Computer"
connector on the LK8000. (For LK8000U and LK8000MU models connect the USB Type
A connector to the computer and then the RJ45 into the "To Computer" connector on the
LK8000U.)
2. You may connect your original standard keyboard to the "To Peripheral" connector on
the LK8000. This port can also be used for peripherals that use a PS/2 interface.
LK8000 User Manual Rev. 1
To peripheral
6
To Computer
To Computer
