Summary of Contents for inDESIGN iD-SM30
-
Page 2: Table Of Contents

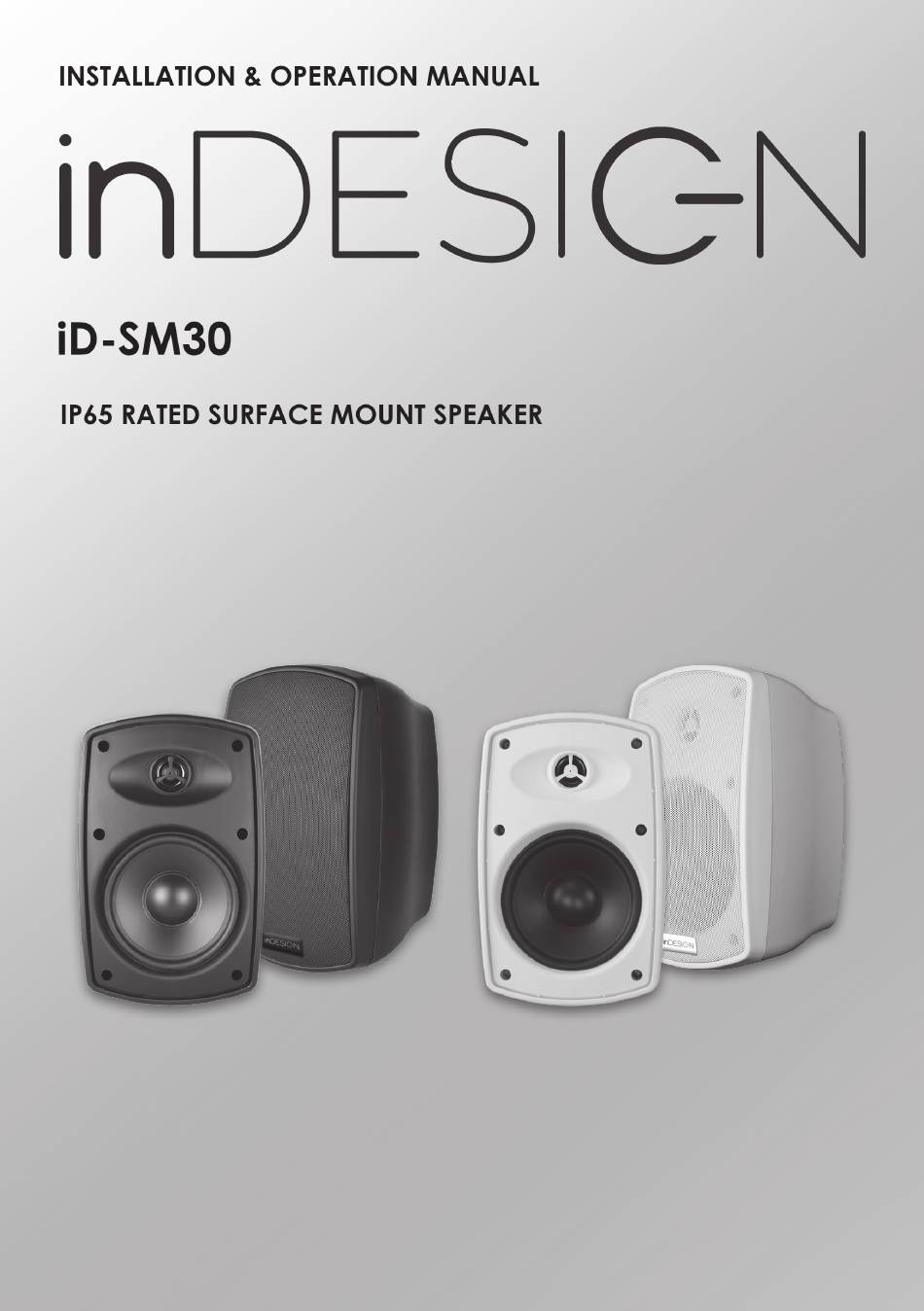

MOUNTING The sonic performance, mounting versatility and IP65 weather SPECIFICATIONS rating make the iD-SM30 speaker the right choice for all your PLOT DIAGRAMS background music needs. The iD-SM30 is available in white (iD-SM30-W) and black WARRANTY INFO (iD-SM30-B) variants. -
Page 3: Important Safety Instructions
They can take this product for environmental-safe recycling. WARNING: There are no user serviceable parts inside. Refer all servicing to qualified service personnel. iD-SM30: INSTALLATION & OPERATION MANUAL PAGE 3... -
Page 4: Front Panel
FRONT PANEL GRILL REMOVED 1. 1.0” (25mm) Piezo Tweeter 2. 5.25” (133mm) Bass Driver PAGE 4 iD-SM30: INSTALLATION & OPERATION MANUAL... -
Page 5: Rear Panel
Terminate your speaker cable to the colour coded spring terminals. Take care when connecting multiple speakers on the same circuit that they are all connected in the same polarity. Red Terminal = positive (+) Black Terminal = negative (-) iD-SM30: INSTALLATION & OPERATION MANUAL PAGE 5... -
Page 6: Mounting
All fixings must be installed in accordance with the manufacturer’s instructions and specifications. Mounting Brackets The iD-SM30 speakers are supplied with vertical wall mount U-brackets. The brackets allow users both pan and tilt to position the speaker correctly. Slots for mounting the brackets are spaced 60mm apart. The design of the slots allows for the bracket to be easily mounted and removed. -
Page 7: Specifications
Product Dimensions (W x D x H) 159 x 152 x 252 mm Shipping Dimensions (W x D x H) 420 x 195 x 274 mm (shipped in pairs) Shipping Weight 5.5kg * Disclaimer: Instructions and specifications are correct at time of printing. Information within may be subject to change without notice. iD-SM30: INSTALLATION & OPERATION MANUAL PAGE 7... -
Page 8: Plot Diagrams
PAGE 8 iD-SM30: INSTALLATION & OPERATION MANUAL... - Page 9 NOTES iD-SM30: INSTALLATION & OPERATION MANUAL PAGE 9...
- Page 10 NOTES PAGE 10 iD-SM30: INSTALLATION & OPERATION MANUAL...
-
Page 11: Warranty Info
The Warranty offered by NAS is not transferable. The Warranty will only apply if your NAS product has been installed and used in accordance with NAS’s recommendations as noted in the operating instructions. iD-SM30: INSTALLATION & OPERATION MANUAL PAGE 11... - Page 12 The Warranty excludes accessories and consumable goods which have ceased working through normal wear and tear such as, but not limited to, batteries, lamps and other parts classifiable as a consumable part. This includes the CD mechanism and laser fitted to the inDESIGN iDCDP-110. These parts carry a 3 month warranty.
