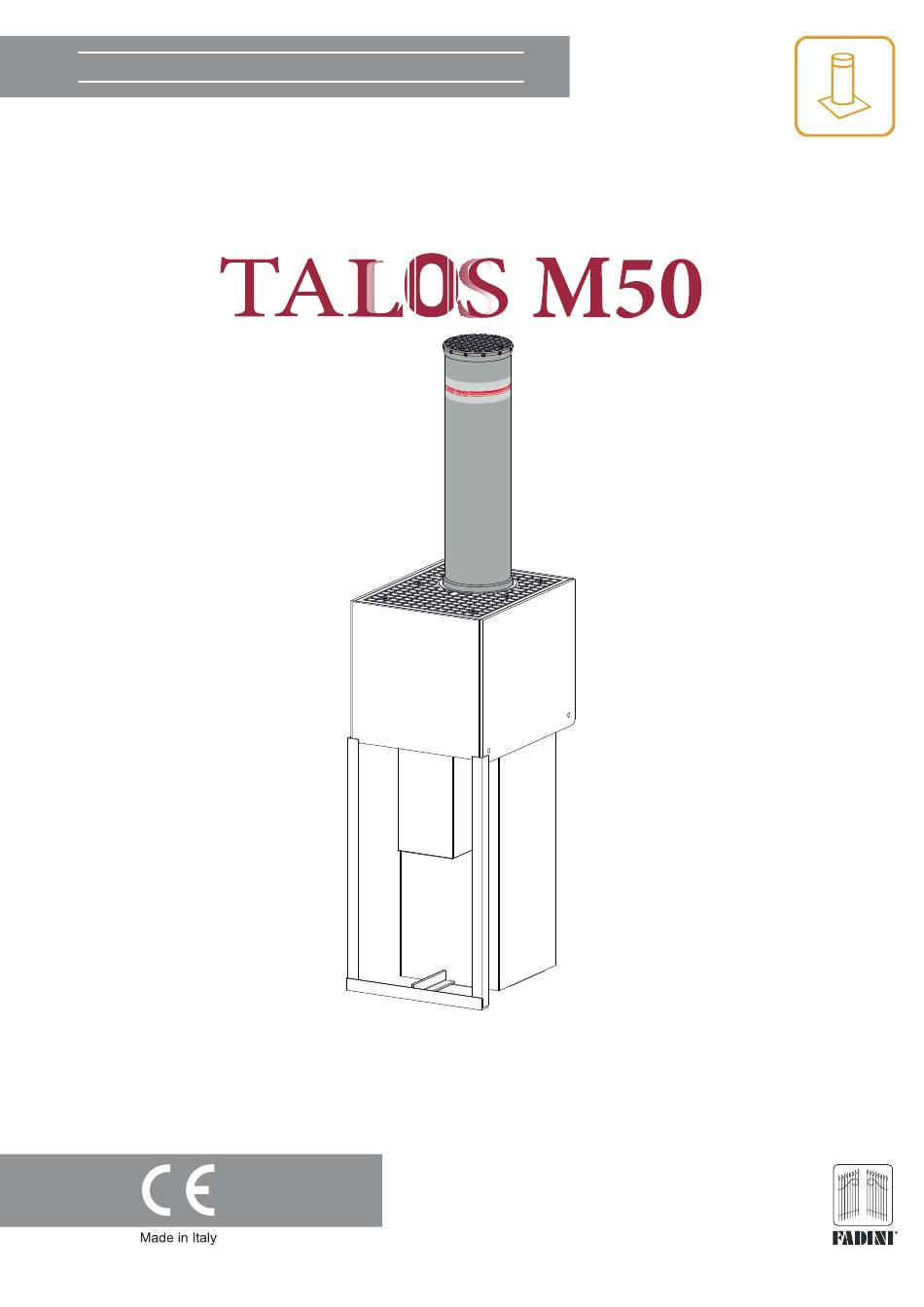

GB Instructions manual
Security bollard with fully retractable post. Certified and tested in compliance with:
- ASTM F2656-15 C750 (former K12)
- PAS 68:2013 V/7500 (N3)/80
- IWA 14-1:2013 V/7200 [N3C]/80
EN 13241
EN 12453
EN 12445
1 - 20
pages
the gate opener

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TALOS M50 and is the answer not in the manual?

Questions and answers

Related Manuals for fadini TALOS M50

Summary of Contents for fadini TALOS M50

  • Page 1 GB Instructions manual 1 - 20 pages Security bollard with fully retractable post. Certified and tested in compliance with: - ASTM F2656-15 C750 (former K12) - PAS 68:2013 V/7500 (N3)/80 - IWA 14-1:2013 V/7200 [N3C]/80 EN 13241 EN 12453 EN 12445 the gate opener...

  • Page 2: Installation

    CE DECLARATION OF CONFORMITY of the manufacturer: Meccanica Fadini snc (Via Mantova, 177/A - 37053 Cerea - VR - Italy) declares under its own responsibility that Talos M50 is in compliance with the Machinery Directive 2006/42/CE, moreover: it is to be sold and installed as a comprehensive “Automatic System”, including the accessories and components as recommended by the Manufacturing Company.

  • Page 3: General Description

    Anti-terrorism retractable oil-hydraulic bollard GENERAL DESCRIPTION Security bollard fitted with a post, that retracts completely flat with the road level, and an incorporated oil-hydraulic motor-pump. Suitable for heavy duty applications being certified and tested in compliance with: - ASTM F2656-15 C750 - PAS 68:2013 V/7500 (N3)/80 - IWA 14-1:2013 V/7200 [N3C]/80 The bollard is designed and constructed to be able to stop vehicles weighing 7.500 kg, running at a speed of 80 km/h and to...

  • Page 4: Sectional View

    Anti-terrorism retractable oil-hydraulic bollard EXCAVATION FOR POSITIONING OF THE CASING IN A CONCRETE FOUNDATION Dig a pit in the soil of about 4x3 m (157,8x118,1 in) and about 1,8 m (70,8 in) deep from the finished road level , as indicated in pic.
  • Page 5 Anti-terrorism retractable oil-hydraulic bollard POSSIBLE FUNCTIONING TEST (non mandatory for the installation) Talos M50 is factory-tested in all normal conditions of functioning, junction box before being sent out to customer. with connector Nevertheless, to allow that a few running tests to assess functioning are...
  • Page 6 Anti-terrorism retractable oil-hydraulic bollard CONSTRUCTION OF THE FOUNDATION CAGE TO CEMENT (not provided by the manufacturer) The foundation cage is to be made on the installation site. dimensions in millimeters (margin of tolerance of ± 0,5 cm - (1,9 in)) 3.000 (118,1 in) 1650 (64,9 in) 610 (24 in)
  • Page 7 Anti-terrorism retractable oil-hydraulic bollard - Fix the roll-over bars into the holes in the ground casing with screws . 300 (11,8 in) M18x35 TE n°4 pcs. Ø 50 mm (1,18 in) n°4 pcs. (supplied) pic. 7 Joining of the cages and of the entire steel framework can be made by steel wire or welding n°2 lateral cages 250 (9,8 in) (7,8 in)
  • Page 8 Anti-terrorism retractable oil-hydraulic bollard Joining of the cages and of the entire steel framework can be made by steel wire or welding nos. 8 Longitudinal rectangular rebar rings (5,9 in) (24 in) 3.000 (118,1 in) Ø 16 (0,62 in) n°8 pcs. pic.
  • Page 9 Anti-terrorism retractable oil-hydraulic bollard Joining of the cages and of the entire steel framework can be made by steel wire or welding nos. 3 Longitudinal rebars Ø 16 (0,62 in) n°6 pcs. n°3 pcs. 900 (35,4 in) 1.600 (62,9 in) 160 (6,3 in) n°3 pcs.
  • Page 10 Anti-terrorism retractable oil-hydraulic bollard Joining of the cages and of the entire steel framework can be made by steel wire or welding n°3 Reinforcing bars for the external side Ø 16 (0,62 in) n°3 pcs. n°6 pcs. n°3 pcs. (11,8 in) n°3 pcs (23,6 in) 160 (6,3 in)
  • Page 11 Anti-terrorism retractable oil-hydraulic bollard dimensions in millimeters (margin of tolerance of ± 0,5 cm - (1,9 in)) Concrete features: A - Class C25/30, 10-30 aggregates and Rck value ≥ 30 N/mm² according to UNI EN 12620 Concrete Volume: 6 m³ Soil: 90% compaction index, with “Proctor”...
  • Page 12 Anti-terrorism retractable oil-hydraulic bollard OPENING THE PROTECTION COVER PLATE Remove all the screws to be able to pull away the plate and then access the bollard inside for the electrical connections. pic. 15 A watertight box is factory-fitted inside the bollard and pre-wired with all the required electrical connections to the bollard (electric motor, limit switches, LED lights).
  • Page 13 Anti-terrorism retractable oil-hydraulic bollard FIRST RUNNING TESTS ATTENTION: power supply the installation only after all the electrical connections have been completed. Once satisfied that all the safety (all NC contact to Elpro S50 controller must be closed) and command accessories have been connected, and the respective connections to the Elpro S50 controller made, the first running tests can be 230 V performed.
  • Page 14 Anti-terrorism retractable oil-hydraulic bollard FIXING THE BOLLARD TOP PLATES The protection plate must seat perfectly onto the NOTE WELL: THE BOLLARD POST AND THE PROTECTION entire surface, and adhere also to the circular PLATE MUST BE PERFECTLY CENTERED, SO THAT THE GAP BETWEEN THE POST AND PLATE IS UNIFORM ALL flange all around the post AROUND...
  • Page 15 Anti-terrorism retractable oil-hydraulic bollard RELEASE OPERATIONS FOR THE MANUAL LOWERING OF THE POST (IN CASE OF AN EMERGENCY) In case of power failure or disconnection the bollard is designed to keep the post in the up position. It is possible, in particular situations of danger and/or emergency, to lower the post manually. The following operations are to be carried out: Pull away the aluminium cover plate, after having removed all the fixing screws.

  • Page 16: Maintenance Record

    NOTE WELL: this document must record any ordinary and extraordinary services including installation, maintenance, repairs and replacements to be made only by using Fadini original spare parts. This document, for the data included in it, must be made available to authorized inspectors/officers, and a copy of it must be handed over the end user/s.
  • Page 17 Anti-terrorism retractable oil-hydraulic bollard...
  • Page 18 Anti-terrorism retractable oil-hydraulic bollard OPERATIONS FOR ORDINARY ROUTINE MAINTENANCE OF FADINI AUTOMATIC BOLLARDS (EVERY SIX MONTHS) The standard maintenance routine sequence is as follows: • Clean the ground cylinder and suck all material settlements. • Clean water drains located at the bottom of the ground cylinder and/or excavation pit.

  • Page 19: Product Specifications

    As far as con guration and execution of the system are concerned, these are to comply with the laws in the country of installation. Meccanica Fadini is not liable for any possible damages derived from incorrect use or from any use not indicated in this manual, furthermore it is not answerable for malfunctioning caused by the use of materials or accessories not approved by the company itself.

  • Page 20: Technical Data

    Impact resistance 700.000 J Working temperature -20 °C +80 °C Crash resistance 2.000.000 J Oil type Fadini Oil - code 708L Maximun static load 20.000 kg Oil reservoir 4,5 liters + 4,5 liters Weight complete with casing 770 kg Protection grade IP 67 Environment working temperature -20 °C +80 °C...
