LEDS:

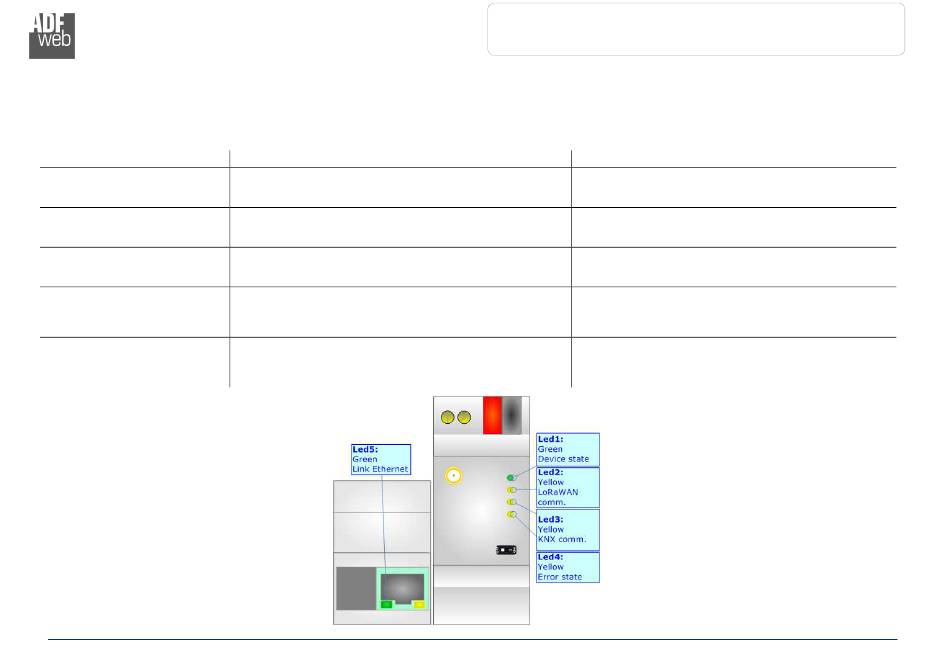

The device has got five LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: Device State (green)
2: LoRaWAN communication
(yellow)
3: KNX communication
(yellow)
4: Error state (yellow)
5: Link Ethernet (Green)
ADFweb.com S.r.l.
Normal Mode
Blinks slowly (~1Hz)
Blinks when a LoRaWAN message is received
Blinks when a KNX message is received
ON: An error in the communication busses occurs
OFF: No errors are present
ON: Ethernet cable inserted
OFF: Ethernet cable not inserted
User Manual KNX / LoRaWAN Gateway
Document code: MN67F27_ENG Revision 1.000
Boot Mode
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
ON: Ethernet cable inserted
OFF: Ethernet cable not inserted
