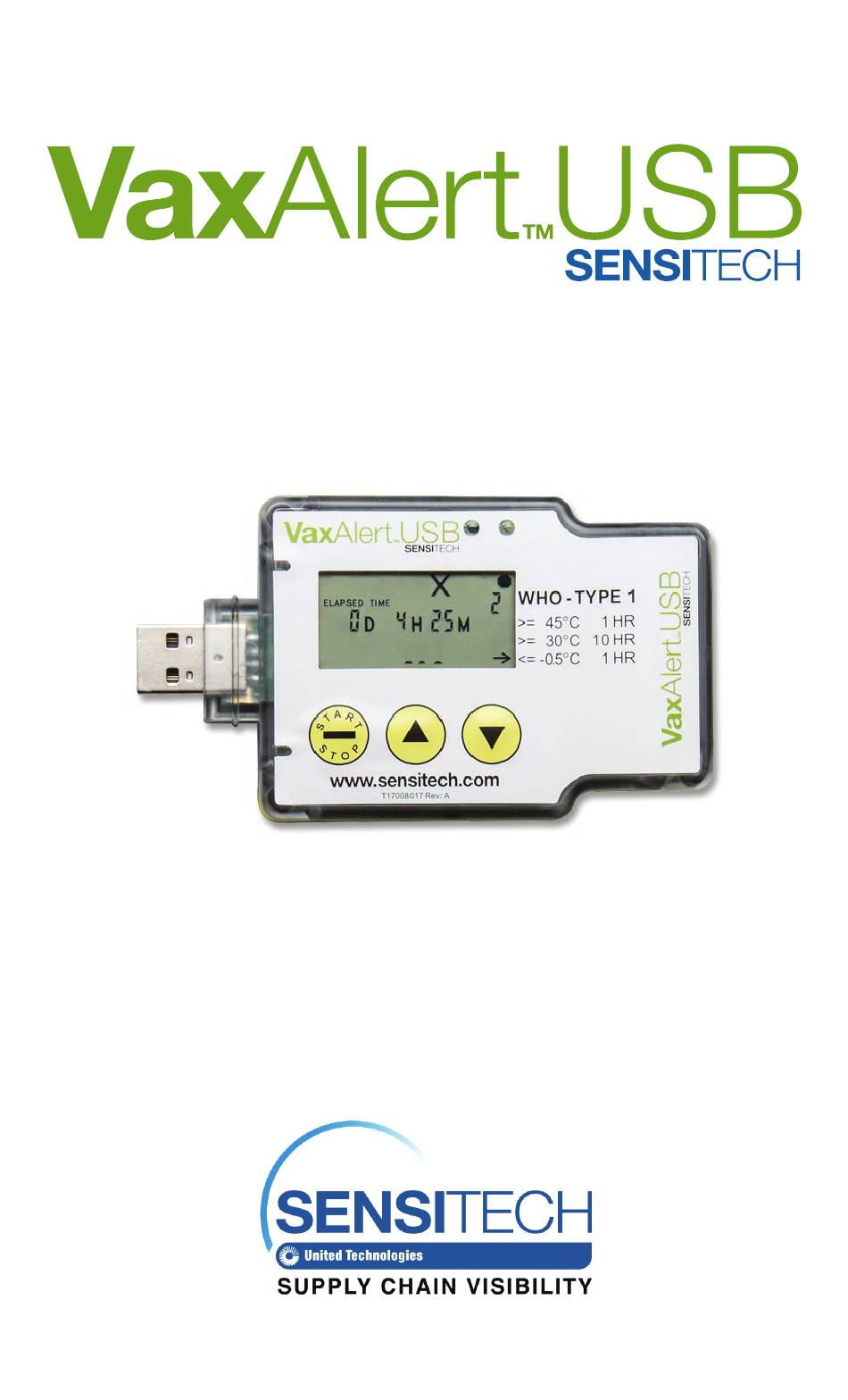

- Page 1 Instructions for Use Sensitech Inc. • 800 Cummings Center, Suite 258X • Beverly, MA 01915 1-800-843-8367 • +1-978-927-7033 • Fax 978-921-2112 • www.sensitech.com...
- Page 2 VaxAlert™ Display and Operation Features The figure below illustrates the VaxAlert™ indicator with all screen icons simultaneously displayed, along with supporting and navigational information on the product label. This display image is not representative of the device in the use environment. (See following sections for additional information) Heart icon Alarm excursion event counter Product logo...
- Page 3 Starting the VaxAlert 1. Prior to starting the VaxAlert, the display will present a blinking heart icon ( ), to indicate the device is powered and ready to start Heart icon 2. Press and hold the Start/Stop button for 3 seconds. The device will display the start delay screen as shown below (run icon ( ) and start delay icon ( ) are displayed).
- Page 4 3. In measurement mode, the VaxAlert display will present elapsed trip time, last measured temperature, and alarm condition/excursion event information (if alarm activity is recorded). VaxAlert in Measurement Mode With Alarms Alarm excursion event counter Device alarm status X = alarm(s) Run Icon Elapsed time display (D, H, M)
- Page 5 Stopping the VaxAlert 1. Press and hold the Start/Stop button for 3 seconds. The VaxAlert will display the stop mode screen as shown below (stop icon ( ) is displayed). NOTE: The VaxAlert is programmed to automatically stop after 20 days of elapsed trip time.
- Page 6 Retrieving alarm event information from the VaxAlert (HISTORY mode): 1. If the VaxAlert experiences alarm events (excursions), the device will record detailed information for up to nine total alarm events (three for each of the alarm settings). The alarm history information will be retained in the VaxAlert and can be viewed for a minimum of six months after stopping the device.
- Page 7 VaxAlert In History Mode, Low Alarm Event Device alarm status Excursion event Stop Icon X = no alarm(s) indicator (1 thru 9) Elapsed time for the excursion event (alarm) Minimum temperature recorded during the Alarm indicator(s) excursion event to the triggered alarm for the event Note: In the example above, the first alarm event for this trip is a <= -0.5ºC, 1 HR alarm at 0 day, 1 hr and 6 minute elapsed time.
-
Page 8: Battery Notes
2. To stop monitor, press and hold stop button for 3 seconds and verify the “stop” icon ( ) on LCD. 3. Remove the protective cap and plug VaxAlert USB into USB port on PC. 4. After blinking LEDs light to solid green, double-click the PDF icon to view PDF report.
