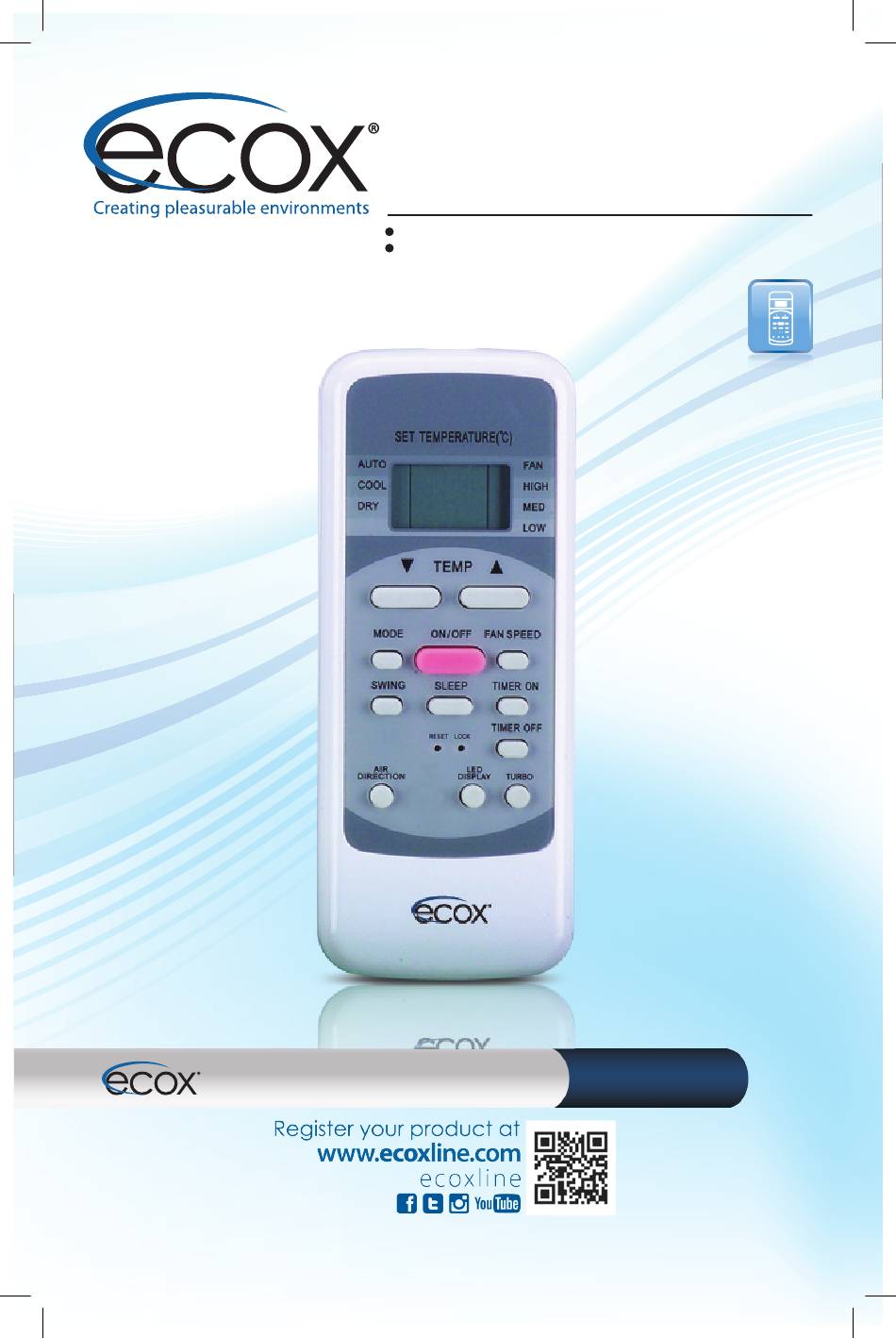

- Page 1 OWNER´S MANUAL Thank you for purchasing this ecox product Before using this machine, please read this manual and retain it for future reference. EADM REMOTE CONTROLLER EADM SPLIT AIR CONDITIONER...
-
Page 2: Table Of Contents
CONTENTS REMOTE CONTROLLER SPECIFICATION PERFORMANCE FEATURES FEATURES OF THE REMOTE CONTROLLER BUTTONS INDICATORS ON DISPLAY PANEL OPERATING THE REMOTE CONTROLLER WARNING REMOTE CONTROLLER EADM SPLIT AIR CONDITIONER... -
Page 3: Remote Controller Specification
REMOTE CONTROLLER SPECIFICATIONS MODELO R51M/(C)E, R51M/BG(C)E, RG51M2/(C)E, RG51A/(C)E, RG51M3/(C)E, RG51M3/BG(C)E, RG51M8/(C)E, RG51M9/(C)E, RG51M/BGE-IN Rated Voltage 3.0V (Dry batteries LR03 X 2) Transmission Distance Environment -5º C~ 60º C / 23º F ~ 140º F. PERFORMANCE FEATURES Operating Mode: AUTO, COOL, DRY, HEAT and FAN. -
Page 4: Features Of The Remote Controller Buttons
FEATURES OF REMOTE CONTROLLER BUTTONS Note: *: Indicates optional buttons. 14 * and 15* buttons are not available for models RG51M2/ (C)E. 7*, 14* and 15* buttons are not available for models RG51M3/(C)E and RG51M3/ BG(C)E. 15* button is not available for models R51M/(C)E, R51M/ BGE, R51M/BGE-IN. - Page 5 NOTE Please do not select HEAT mode lithe machine you purchased is cooling only type. Heat mode is not supported by the cooling only appliance. SWING Button: Push this switch button to activate auto swing feature of the horizontal louver. Push it again to stop. RESET Button: When you press the recessed RESET button, all current settings are cancelled and the control will return to the initial settings.
-
Page 6: Indicators On Display Panel
TURBO Button: Push this button to activate/cancel the Turbo function which enables the unit to reach the preset temperature in the shortest time. On cooling mode, the unit will be low strong cooling air with super high fan speed. On heating mode (applicable to the unit adopts PTC only), the PTC will bring fast heating operation. -
Page 7: Operating The Remote Controller
OPERATION MODE Indicator: When press the MODE button, it shows the current operating mode - “AUTO", "COOL”, "DRY" "HEAT"(Cooling only model without) or "FAN" mode. LOCK Indicator: LOCK display is displayed by pushing the LOCK button Push the LOCK button to clear display. TIMER DISPLAY Indicator: This display area shows the settings of the TIMER. - Page 8 NOTE When replacing batteries, do not use old batteries or a different type battery. This may cause the remote control to malfunction. If you do not use the remote controller for several weeks remove the batteries. Otherwise battery leakage may damage the remote controller. The average battery life under normal use is about 6 months.
- Page 9 COOL / HEAT (COOLING ONLY MODEL WITHOUT) AND FAN OPERATION If the AUTO mode is not comfortable, you may manually over-ride the settings by using COOL, HEAT or FAN modes. Push the TEMP button to set the desired room temperature. When in COOLING mode, the most comfortable settings are 21º...
- Page 10 DISPLAY PANEL DIGITAL DISPLAY ON / OFF INDICATOR TRANSMITION INDICATOR OPERATION MODE INDICATOR OPERATION MODE INDICATOR FAN SPEED INDICATOR LOCK INDICATOR TIMER DISPLAY FIG. 3 INDICATOR TIMER OPERATION Push TIMER ON button to set the auto-on tome and TIMER OFF button to set the auto-off time.
-
Page 11: Warning
Push the TIMER ON button, the remote controller will show TIMER ON, the last set time for START operation and the signal "h" will be shown on the DIGITAL display area. You are now ready to readjust the TIMER ON to start the operation. Push the TIMER ON button again to set the time you want to start the operation.
