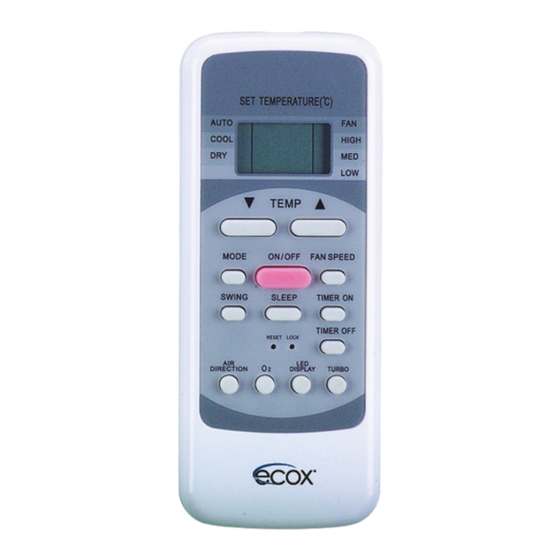

Ecox RG51B14/(C)E Owner's Manual

Remote control portable air conditioner
Hide thumbs
Table of Contents

Advertisement

Quick Links

OWNER´S MANUAL
Models:
RG51B1/(C)EU
RG51B14/(C)E
RG51B31/(C)E
RG51B/(C)EU
RG51B16/(C)E
REMOTE CONTROL
PORTABLE AIR CONDITIONER
Thank you for purchasing this ecox product.
Before using this machine, please read this manual and
retain it for future reference.
RG51B31/(C)EU
RG51B19/(C)E-M
RG51B17/(C)EU
RG51B20/(C)E
RG51B18/(C)E
RG51B30/(C)EU
RG51B32/(C)E
RG51B25/(C)E
RG51B26/(C)
EU RG51B27/(C)
E RG51B30/(C)E
RG51B30/(C)EF
EPOR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RG51B14/(C)E and is the answer not in the manual?

Questions and answers

Related Manuals for Ecox RG51B14/(C)E

Summary of Contents for Ecox RG51B14/(C)E

  • Page 1 OWNER´S MANUAL Thank you for purchasing this ecox product. Before using this machine, please read this manual and retain it for future reference. Models: RG51B31/(C)EU RG51B19/(C)E-M RG51B1/(C)EU RG51B26/(C) RG51B14/(C)E RG51B17/(C)EU RG51B20/(C)E EU RG51B27/(C) RG51B18/(C)E RG51B30/(C)EU RG51B31/(C)E E RG51B30/(C)E RG51B/(C)EU RG51B32/(C)E...

  • Page 2: Table Of Contents

    CONTENTS HANDLING THE REMOTE CONTROL REMOTE CONTROL SPECIFICATIONS FUNCTION BUTTONS INDICATORS ON LCD HOW TO USE THE BUTTONS AUTO OPERATION COOLING/HEATING/FAN OPERATION DEHUMIDIFYING OPERATION SWING OPERATION TIMER OPERATION ECONOMY OPERATION REMOTE CONTROL EPOR PORTABLE AIR CONDITIONER...

  • Page 3: Handling The Remote Control

    HANDLING THE REMOTE CONTROL 8 mts. 26 ft. LOCATION OF THE REMOTE CONTROL Use the remote control within a distance of 8 meters / 26 Feet from the appliance, pointing it towards the receiver. Reception is confirmed by a beep. CAUTIONS The air conditioner will not operate if curtains, doors or the materials block the signal from the remote control to the indoor unit.

  • Page 4: Remote Control Specifications

    -5 º C~60 º C(-41 º F~140 º F) Environment NOTE Temperature setting display: Celsius scale(ºC): RG51B14/(C)E, RG51B16/(C)E, RG51B18/(C)E, RG51B31/(C)E, RG51B19/(C)E-M, RG51B20/(C)E, RG51B25/(C)E, RG51B27/(C)E, RG51B30/(C)E, RG51B32/(C)E, RG51B30/(C)EF. Fahrenheit scale( F): RG51B/(C)EU, RG51B1/(C)EU, RG51B17/(C)EU, RG51B26/(C)EU, RG51B30/(C)EU, RG51B31/(C)EU. PERFORMANCE FEATURE Operating Mode: AUTO, COOL, DRY, HEAT (Cooling & heating models only) and FAN.

  • Page 5: Function Buttons

    HEAT AUTO COOL MODELS: RG51B14/(C)E, RG51B16/(C)E, NOTE: Do not select HEAT mode if the machine you purchased RG51B18/(C)E, RG51B19/(C)E-M, is cooling only type. Heat mode is not supported by the cooling RG51B20/(C)E, RG51B31/(C)E only appliance.
  • Page 6 TIMER OFF Button SET TEMPERATURE( F) Press this button to activate the Auto-off time setting. AUTO COOL HIGH Each press will increase the time setting in 30 minutes HEAT increments, up to 10 hours, then at 1 hour increments up to 24 hours. To cancel the Auto-off time setting, just TEMP press the button until the time setting is 0.0.

  • Page 7: Indicators On Lcd

    INDICATORS ON LCD MODE display Displays the current selected mode. Including AUTO, COOL, DRY, HEAT (cooling & heating models only) and FAN. Transmission Indicator This transmission indicator will light when remote control transmits signals to the indoor unit. Temp./Timer display The temperature setting (from 17ºC (62,6 ºF) to 30ºC (86ºF) ) or timer setting (0~24h) will be displayed.

  • Page 8: How To Use The Buttons

    HOW TO USE THE BUTTONS AUTO OPERATION Ensure the unit is plugged in and power is available. The OPERATION indicator on the display panel of the indoor unit illuminates. SET TEMPERATURE( C) AUTO COOL HIGH Press the MODE button to select Auto. HEAT TEMP Press the TEMP button to set the desired temperature.

  • Page 9: Dehumidifying Operation

    DEHUMIDIFYING OPERATION Ensure the unit is plugged in and power is available. The OPERATION indicator on the display panel of the indoor unit illuminates. SET TEMPERATURE( C) AUTO COOL HIGH Press the MODE button to select DRY mode. HEAT TEMP Press the TEMP button to set the desired temperature.

  • Page 10: Timer Operation

    TIMER OPERATION Press the TIMER ON button to set the auto-on time of the unit. And press the TIMER OFF button to set the auto-off time of the unit. To set the Auto-on time. Press the TIMER ON button. The remote controller shows TIMER ON, the last Auto-on setting time and the signal "h"...
  • Page 11 IMPORTANT The effective operation time set by the remote control for the timer function is limited to the following settings: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10, 11, 12, 13, 14, 15,16,17, 18, 19, 20, 21, 22, 23 and 24. EXAMPLE OF TIMER SETTING TIMER ON Start...
  • Page 12 EXAMPLE OF TIMER SETTING TIMER OFF (Auto-off Operation) TIMER OFF The TIMER OFF feature is useful when you want the unit to turn off automatically after you go to bed. The Stop air conditioner will stop automatically at the set time. 10 hours later Example: To stop the air conditioner in 10 hours.
  • Page 13 TIMER ON TIMER OFF (Off Start Stop operation) TIMER ON OFF This feature is useful when you want to start the air conditioner before you wake up and stop it after you Start leave the house. Stop Example: 2 hours later 5 hours later after settings after settings...
