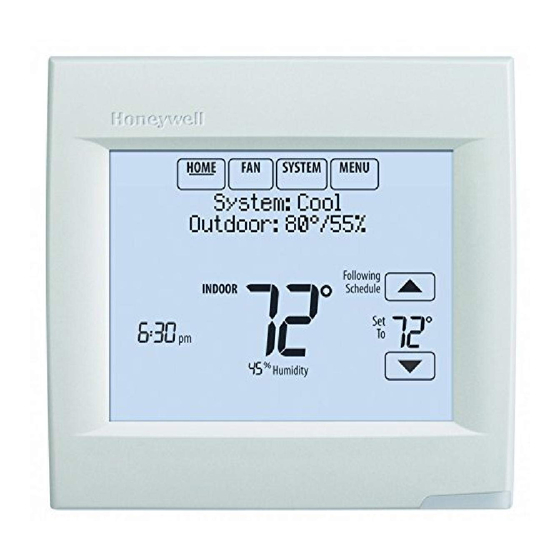

VisionPRO® 8000 Smart
Thermostat
APPLICATION
The VisionPRO® 8000 Smart thermostat features an
effortless, 7-Day programmable touchscreen thermostat
that provides control of temperature and one of the
following: humidification, dehumidification, or ventilation.
Up to 3 Heat/2 Cool heat pump systems or up to
2 Heat/2 Cool conventional systems are supported in
residential and commercial applications.
FEATURES
• Thermostat acquires weather data through either a
wired sensor or an Internet connection
• U1 Terminals
One set of dry contacts (U1) that are configurable for
one IAQ product, such as a Humidifier, Dehumidifier or
Ventilator.
• Thermostat S1, S1
Configurable S1 Terminals can be configured for a
wired indoor, wired outdoor, or discharge air sensor.
• On-board Humidity sensor
• Customizable Service Reminders
Set up to 10 service reminders. Choose from the pre-set
options or customize your own. Reminders can be
based on date or the outdoor temperature.
• Selectable for Residential and Light Commercial
Applications
One thermostat does it all to meet the needs of Resi-
dential and Light Commercial applications. Simply
select Residential or Commercial during the installer
setup. If Commercial is selected, the thermostat will use
commercial language, meet building codes and offer
365 day holiday scheduling.
PRODUCT DATA
33-00096-05
Advertisement
Related Manuals for Honeywell Home VisionPRO 8000 Smart
Summary of Contents for Honeywell Home VisionPRO 8000 Smart
- Page 1 VisionPRO® 8000 Smart Thermostat PRODUCT DATA FEATURES • Thermostat acquires weather data through either a wired sensor or an Internet connection • U1 Terminals One set of dry contacts (U1) that are configurable for one IAQ product, such as a Humidifier, Dehumidifier or Ventilator.
-
Page 2: Specifications
VISIONPRO® 8000 SMART THERMOSTAT SPECIFICATIONS Cool Indication: VisionPRO® 8000 Smart thermostat displays “Cool On” when the thermostat turns the cooling on. Thermostat Description: Heat Indication: Feature Description VisionPRO® 8000 Smart thermostat displays “Heat On” Powering method • Common wire when the thermostat turns the heating on. System types (up •... -
Page 3: System Installation
VISIONPRO® 8000 SMART THERMOSTAT SYSTEM INSTALLATION When Installing this Product... 1. Read these instructions carefully. Failure to follow the instructions can damage the product or cause a haz- ardous condition. 2. Check the ratings given in the instructions to make sure the product is suitable for your application. -
Page 4: Finding Your Password (Date Code) To Access Installer Options
VISIONPRO® 8000 SMART THERMOSTAT Finding Your Password (Date Code) CONVENTIONAL to Access Installer Options You need a password (Date Code) to access Installer Options. Installer Options allow you to: • Make changes to the Installer Setup. • Perform an Installer Test. •... -
Page 5: Make Changes To Installer Setup
VISIONPRO® 8000 SMART THERMOSTAT Thermostat Password (Date Code) Table 1. Installer Options. Menu Item Description Installer Setup Select INSTALLER SETUP to set system settings one by one. Installer Test Select INSTALLER TEST to quickly determine if the heat, cool, fan and RoHs Compliant Conformité...
