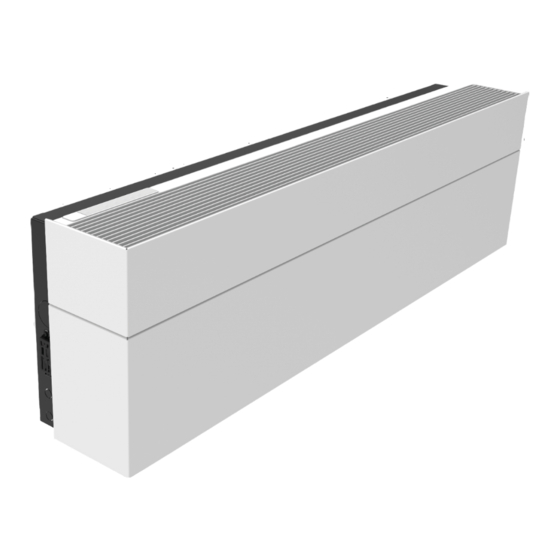

ClimaRad Vita H1C-S Maintenance Instruction

Maintenance instructions ClimaRad Vita H1C-S
Maintenance frequency for filters
When should you replace the filters?
• With normal use, every 2 years or earlier if the message 'Filter vervuild' appears
on the display (for example in homes and offices).
• In the case of intensive use, after 1 year or earlier if the message 'Filter
vervuild' appears on the display (e.g. for care homes and schools).
Go to www.climaRad.nl/filtervervanging
Replacing air supply filters
1.First switch the device off by
pulling the plug out of the socket.
left
4. Open both valves by pulling
them towards you.
left
7. Put the two black filter caps
(left and right) back in position
and close both valves again.
Important: Only reset the filter hour counter if you have replaced the filters.
to view the instruction video.
2. Unscrew the locking screws
from the housing. The lower
housing now moves forward.
1 right
left
5. Remove the black caps.
right
2
3
8. Reinstall the air distributor (1),
tilt the lower housing back in
position (2), and tighten the
screws again (3).
www.climarad.nl/filters
1
1
2 2
3. Loosen the screws and remove the upper
housing from the unit (1). Tilt the lower
housing forwards (n.b.: this is held in place
with magnets.) Position it in the brackets
provided for this purpose (2).
Slide 3 new filters in
right
6. Slide three new filter elements
into the device on the left side.
The old filter elements are
automatically ejected from the
right side.
1
9. Put the plug back into the
socket and reset the filter hour
counter (Press + and –
simultaneously for 6 seconds). The
'filter vervuild' message will now
disappear.
Ordering filters
Order new filters at
3 old filters will
slide out
Press
and
for 6 seconds
