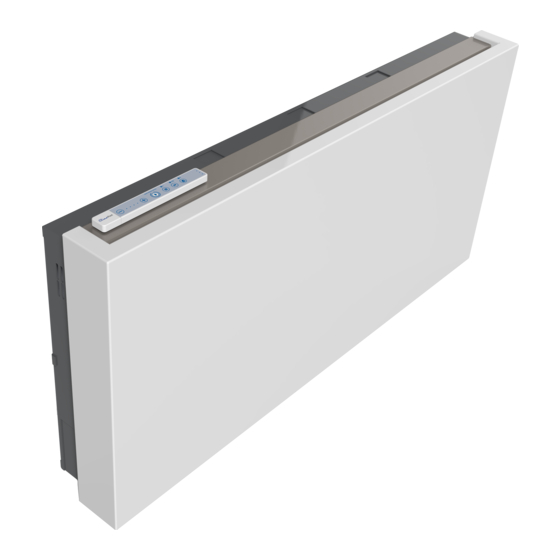

ClimaRad Sensa Horizontal 2015 Maintenance Instruction

Maintenance Instructions ClimaRad Sensa Horizontal 2015
Maintenance frequency for filters Onderhoudsfrequentie filters
When should you replace the filters? Wanneer vervangt u de filters?
• With normal use, every 2 years or earlier if the message 'Filter vervuild' appears on Bij normaal gebruik: om de 2 jaar of eerder als de melding 'filter vervuild' op het
display verschijnt (bijvoorbeeld bij woningen en kantoren). the display (for example in homes and offices).
• In the case of intensive use, after 1 year or earlier if the message 'Filter vervuild' Bij intensief gebruik: na 1 jaar of eerder als de melding 'filter vervuild' op het
appears on the display (e.g. for care homes and schools). display verschijnt (bijvoorbeeld bij zorgcomplexen en scholen).
Maintenance ClimaRad Sensa Horizontal: replacing the air supply filters
1. Switch off the device first by
removing the plug from the
socket.
4. Slide the two contaminated
filters to the sides out of the fiter
housing.
7. Put the cover back on the
ClimaRad Sensa V2X.
2. Remove the cover of the Sensa
by lifting it upwards.
5. Slide the two new filters fully
into the filter housing so that they
do not project.
and
press for 6 seconds
8. Push the plug back into the
socket and reset the filter hour
counter by simultaneously pressing
on the + and - on the display for 6
seconds. The message 'Filter
vervuild' will disappear.
Filters bestellen Ordering filters
Order new filters at
Bestel nieuwe filters via
www.climarad.nl/filters
www.climarad.nl/filters
3. Open the three clips on the top
and tilt the filter housing
forwards.
6. Tilt the filter housing upwards
and secure with the three clips.
Important: Reset the filter hour
counter only if you have
replaced the filters.
Caution: Make sure the filters do
not protrude from the filter
housing or that tools are trapped
between
the filter housing and the
radiator housing. This can
damage the filter housing and
cause air leaks along the edges.
