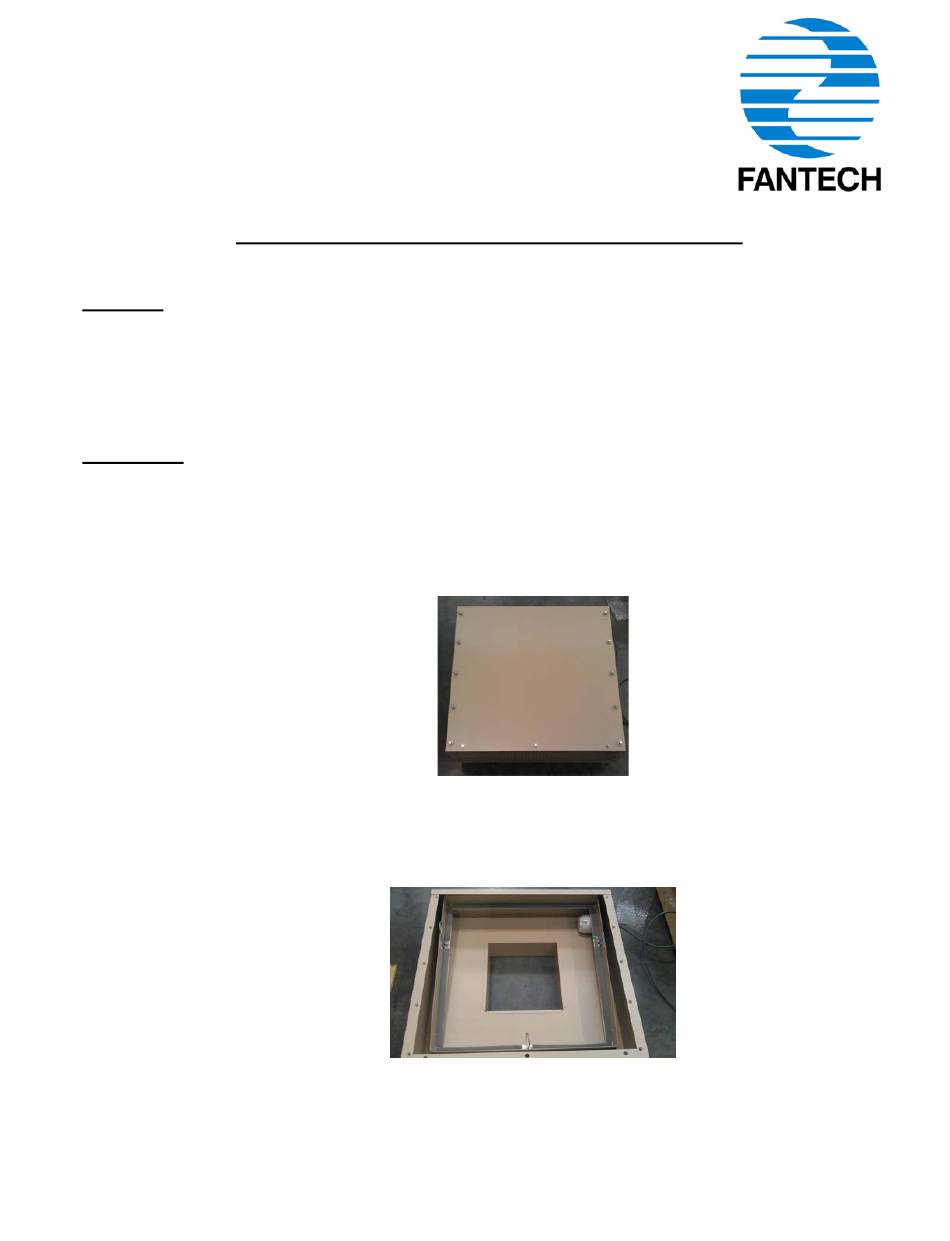

FSW154 - Filtered Supply Air
Wall Unit
CONTENTS & INSTALLATION INSTRUCTIONS
Contents:
EIE150 Fan
PureV G4 Panel Filter (495x495x45)
Powder coated Steel Filter Box
Installation Instruction
Installation:
1. Installation of this product should be carried out by appropriately qualified persons.
2. Ensure the unit has arrived in good condition and that the impeller is free to rotate.
3. Cut a hole in the wall to the square spigot dimensions (240mm Width X 265mm Height).
4. Remove the backing plate from the filter box by undoing the 13 screws.
5. Install the filter box on the outside wall by inserting the square spigot into the cut out hole,
then drilling and screwing the filter box onto the wall. Ensure that the filter box grille is at
the bottom.
6. Remove the grille from the EIE150 Fan and insert fan on the inside wall. Mount fan with
through the holes provided. Reinstall the grille.
Part No. INST- FSW
08/12
1 off.
1 off.
1 off.
1 off.
Page 1 of 3
Advertisement
Table of Contents
Related Manuals for Fantech FSW154
Summary of Contents for Fantech FSW154
- Page 1 FSW154 - Filtered Supply Air Wall Unit CONTENTS & INSTALLATION INSTRUCTIONS Contents: EIE150 Fan 1 off. PureV G4 Panel Filter (495x495x45) 1 off. Powder coated Steel Filter Box 1 off. Installation Instruction 1 off. Installation: 1. Installation of this product should be carried out by appropriately qualified persons.
- Page 2 7. From the outside wall, plug the EIE150 Fan into the socket inside the filter box. 8. Install the filter ensuring the filter lines run vertically and twist the P-clips 90 degrees to lock it in place. 9. Reinstall the backing plate. 10.
- Page 3 Part No. INST- FSW 08/12 Page 3 of 3...
