Instruction Manual

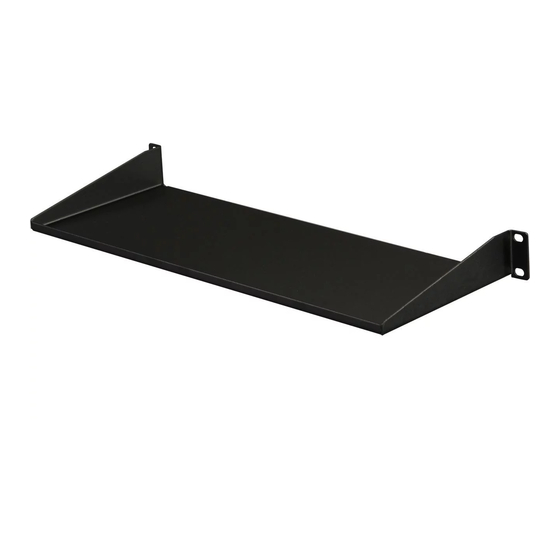

19" 1U Universal Fixed Shelf for Server Rack/Cabinet
CABSHELF1U
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com

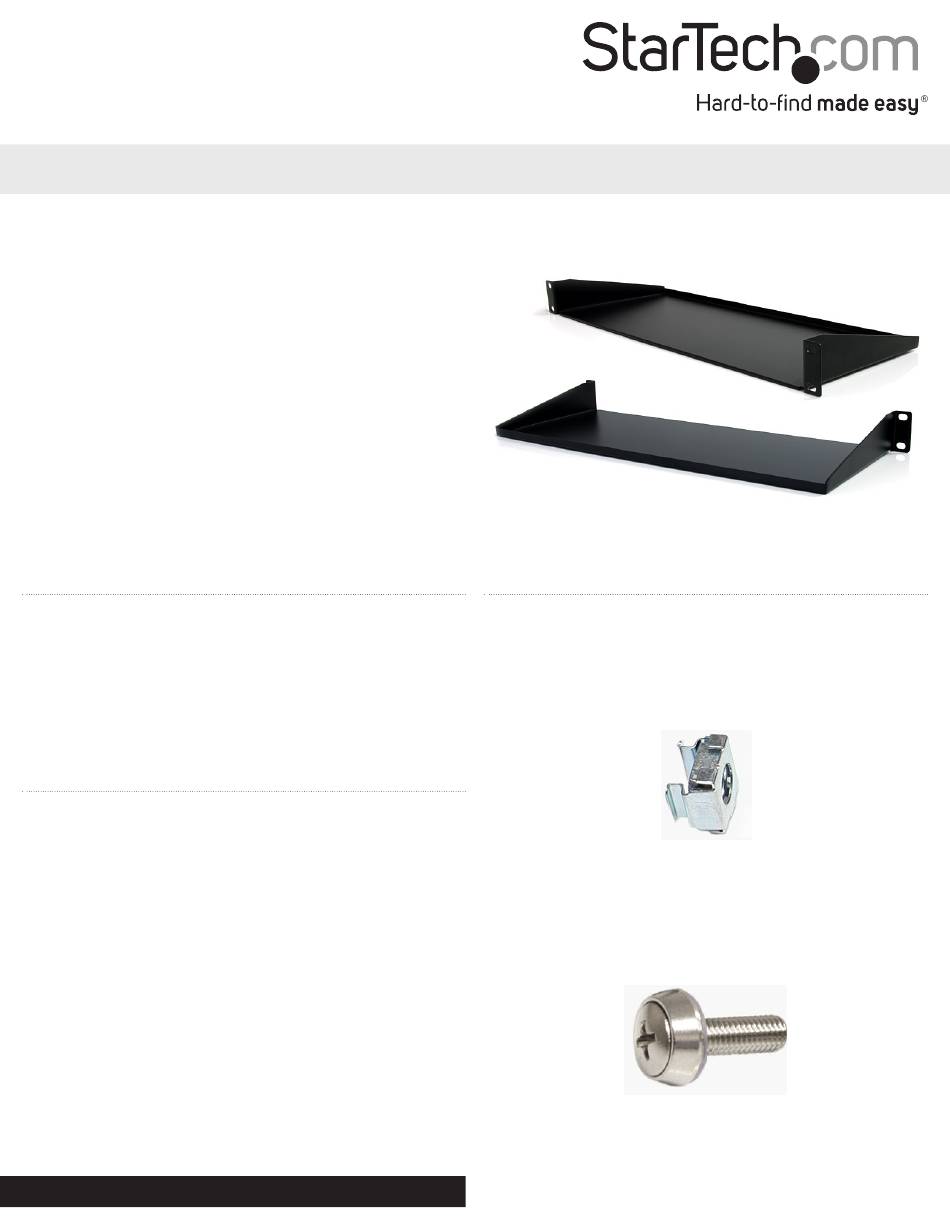

Packaging Contents
• 1 x Fixed Shelf
• 4 x M6 Cage Nut
• 4 x M6 Cabinet Screw
System Requirements
• EIA-310C compliant 19in server rack/cabinet
• At least 1U of available space in rack/cabinet to mount shelf
• If using a rack/cabinet that does not use square mounting
points along the posts, the appropriate mounting hardware
for the rack will be required (consult documentation for the
rack or contact the manufacturer)
For the most up-to-date information, please visit: www.startech.com
Installation
1. L ocate a suitable location in the rack/cabinet to mount the
shelf. The shelf itself requires 1U of space within the rack/
cabinet.
2. I f the rack uses square mounting holes, install the included
cage nuts into the square mounting holes on the front posts
of the rack.
3. P lace the shelf into the rack and align the mounting points
on the front brackets of the shelf with the mounting points
on the rack (e.g. the cage nuts, if used).
4. U se the provided cabinet screws to secure the shelf to the
rack. If not using the included cage nuts or M6 threaded
rack posts, the appropriate mounting hardware for the rack
should be used.
5. M ake sure the screws are properly tightened and the shelf
has no movement before attempting to place anything on
the shelf. Be sure to observe the maximum weight capacity
of the shelf.
*actual product may vary from photos
Manual Revision: 05/18/2011
