Summary of Contents for Subal SA7MK3

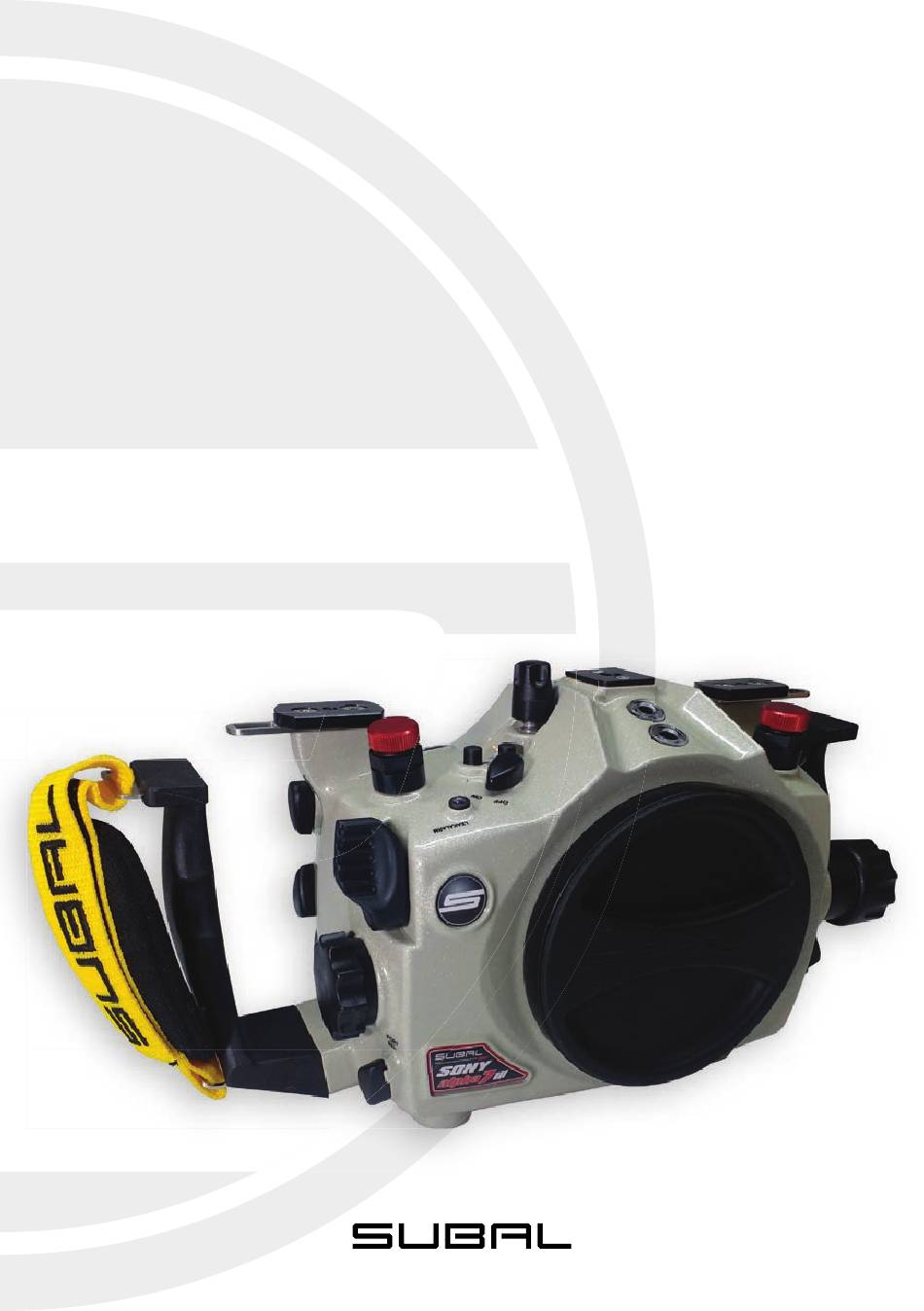

- Page 1 USER MANUAL SONY SA7MK3 housing...
- Page 2 The result is that a large number of world-renowned underwater photogra- phers uses SUBAL equipment. hope that you will take some of the memorable moments with your SUBAL!
-
Page 3: Table Of Contents
We congratulate you on your choice of the SUBAL SA7MK3 underwater housing for the Sony Alpha 7 III. During the conception and design of the housing, considerable attention was directed towards the application of advantages and unique features of the state-of-the art Sony camera technology, making them available to the under- water photographer. -
Page 4: Use And Maintainance Of O-Rings
The O-ring of the lid and especially also the front port O-ring should be regularly. removed. Please note that the especially soft quality of the original SUBAL O-ring ma- Only use original SUBAL-spare parts and SUBAL-accessories. terial looses elasticity prematurely if it is permanently compressed. So, if you... -
Page 5: Mounting The Camera Support Saddle
Mounting the Camera Support Saddle The SUBAL New locking system levers are equipped with buttons (Fig.3) that should be pressed before rotating them. Attach the camera support saddle to the camera base with the locking lever pointing to the camera backside. Tighten the camera screw by using a coin or Fig. -
Page 6: Closing The Housing
THE INTERCHANGEABLE PORT SYSTEM In order to facilitate the fitting of the camera into the housing, please take For your SUBAL housing, there is a wide range of front ports available, the note for the following hints. largest of all manufacturers. This allows you the use of a multitude of regular... -
Page 7: Changing A Lens
When pushed in, turn the port 90° clockwise until it stops. If properly in- type of the domeport. Without these correcting lenses you may not even stalled, the white dot or the SUBAL-logo is aligned with the middle of the housing. be able to get your subject in focus! •... -
Page 8: Mounting And Connecting A Flash Unit
A wide range of perfected strobearms are available for the combination of a SUBAL SA7MK3 housing and strobes on the market (Sea & Sea, INON, etc.). The arms are fastened by pushing them onto an adapter plate on the up- per part of the housing. -
Page 9: Check-List
In order to check for transport damage, we recommend that newly deliv- ered units be water tested without the camera or flash unit fitted. Repairs: The unit must be returned freight prepaid to SUBAL Austria or any other SUBAL partner. -
Page 10: Front Housing Part Explode View
FRONT HOUSING PART EXPLODE VIEW material Thermal treatment Mass ratio 1:10 Goran Limić Part name Engin. 9/4/2018 Date 1 - Ass-Sony Alpha 7MK3-VT Aprov Stand. Kneginje Zorke 73/5 Sheet size Sheet num. Part number 11000 Beograd Changes Date Name... -
Page 11: Back Housing Part Explode View
BACK HOUSING PART EXPLODE VIEW material Thermal treatment Mass ratio Goran Limić Part name Engin. 9/4/2018 Date 2 - Ass-Sony Alpha 7MK3-RT Aprov Stand. Kneginje Zorke 73/5 Sheet size Sheet num. Part number 11000 Beograd Changes Date Name... -
Page 12: Front Parts List
FRONT PARTS LIST BACK PARTS LIST ITEM ITEM PART NUMBER QTY. PART NUMBER QTY. Sony Alpha 9-VT V1(EK-SA9-VTV1) Sony Alpha 9-RT V1 (EK-SA9-RTV1) Ass-Sony Alpha 9 - On-Off Ass-Sony Alpha 9 - Exposure Compensation Dial Ass-Sony Alpha 9 - Triger Ass-Sony Alpha 9 - Rear Dial Wheel Ass-Sony Alpha 9 - Preview Button Ass-Sony Alpha 9 - AEL... - Page 13 Subal GmbH Schulgasse 2 1180 Wien Tel: +43 1409 5897 E-Mail: austria@subal.com Construction & Engineering - Steyr Palais-Werndl Schönauerstr 7 4400 Steyr Tel: +43 7252 464 24 © 2018.
