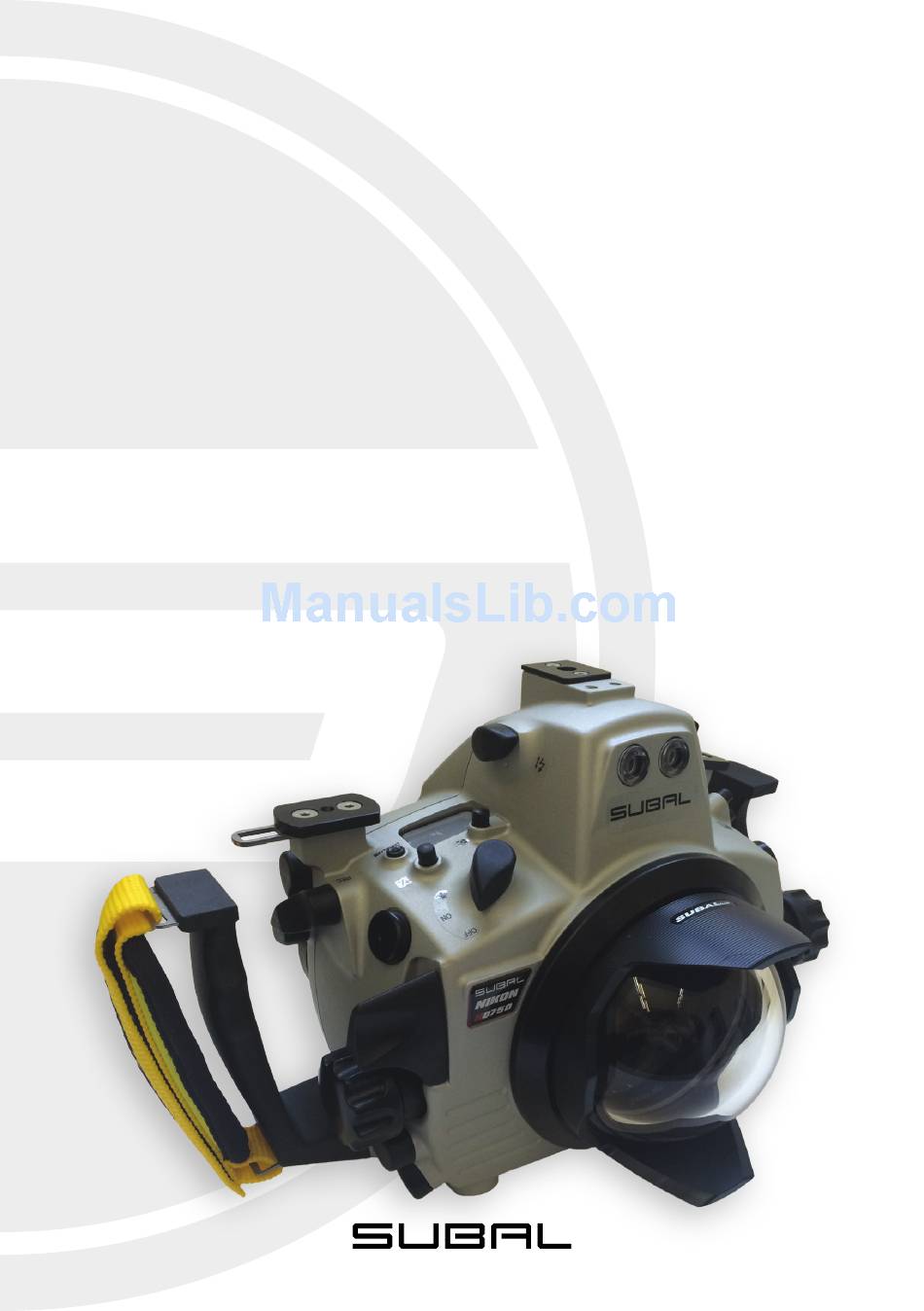

  • Page 1 USER MANUAL NIKON ND750 housing...
  • Page 2 The result is that a large number of world-re- nowned underwater photographers uses SUBAL equipment. hope that you will take some of the memorable moments with your SUBAL!

  • Page 3: Table Of Contents

    We congratulate you on your choice of the SUBAL ND750 underwater housing for the Nikon D750. During the conception and design of the housing, considerable attention was directed towards the application of advantages and unique features of the state-of-the art D750 camera technology, making them available to the under- water photographer for the first time.

  • Page 4: Use And Maintainance Of O-Rings

    - it is worthwhile. PREPARING THE CAMERA USE AND MAINTAINANCE OF O-RINGS There is nothing to change on your Nikon D750 for the use with SUBAL SUBAL housings are designed to use specially formulated O-rings. Replace- ND750.

  • Page 5: Preparing The Lens

    NIKON AF-Macro Objektive 60/2.8D and 105/2.8D These lenses can be used in manual focus mode with special SUBAL focus- ports only. With this ports the lenses can be switched between AF and MF! Fig.

  • Page 6: Closing The Housing

    Some big lenses have to be removed before the camera can be pulled out Fig. 6 Fig. 7 of the housing. CLOSING THE HOUSING After checking the body O-ring is clean, lubricated and properly seat- ed in the groove, and the lid sealing surface is also clean and free from any scratches or damage, the hot- shoe connector –...

  • Page 7: The Interchangeable Port System

    Insert the synch cord connector in the direction indicated by the arrow on the top of the connector into the camera hot shoe (the cable pointing into the For your SUBAL housing, there is a wide range of front ports available, the housing) (Fig. 12 & 13).

  • Page 8: Changing A Lens

    • Choose the point of autofocusing with the Focus Area Selector. CHANGING A LENS SUBAL ND750 allows changing the lens without camera removal. Manual focusing operation • Unlock the Port Lock (if fitted). To adjust focus manually (not possible with all lens ports) a focus gear ring •...

  • Page 9: Mounting And Connecting A Flash Unit

    • The plug should be pushed in a few millimeters into the socket by hand MF even under water by the use of the special SUBAL Focus Control Ports. and only then the knurled screw screwed into the socket and slightly tightened.

  • Page 10: Check-List

    • After ensuring that the main O-ring has been installed and the housing Repairs: closed properly, please check carefully ONCE AGAIN, whether: The unit must be returned freight prepaid to SUBAL Austria or any other • The gap between the housing front and the lid seems equally spaced SUBAL partner.

  • Page 11: Front Housing Part Explode View

    FRONT HOUSING PART EXPLODE VIEW...

  • Page 12: Front Parts List

    Ass-ND750-Video-Start Senkschraube mit ISK M3x6 DIN 7991 A4 (EK-1019147) Ass-ND800-Einstellrad vorne Z-Auflage Ass-ND800-Auslöser ZylSchraube M3x5 DIN85 A4 (EK-1246267) Ass-ND7100-BA-Mode Ass-ND750-Fn-Wippe ASS-ND7100-Programm Blechschraube 2,9x9,5 (EK-3061520) Ass-Schlossplattenkomponente ND750 O-ring 198-4 or Like on ND600 ND800-Führungsstab Ass-ND750-AF-M Schalter 2 Ass-ND800-Objektiventriegelung Ass-ND750-AF-M Schalter Exploded...

  • Page 13: Back Housing Part Explode View

    BACK HOUSING PART EXPLODE VIEW...

  • Page 14: Back Parts List

    Ass KK Drucktaste Schlitzbuchse mit Ausleger 12.5 Ass-ND750-Einstellradhinten Ass- GK Drucktaste mit Kappe 11.7 Ass-ND750-Hohlwellehinten Ass- KK Drucktaste mit Kappe 14 ND750-POM For Back Zoom (EK-ND750-PFBZ) Ass GK Al Drucktaste (ADRT2) ND800-Ausleger-links-2 Gear 12-14-4 Senkschraube mit ISK M4x8 DIN 7991 A4 (EK-1100173) ZylSchraube M3x8-DIN85 A4 (EK-1246011)
  • Page 15 Subal GmbH Schulgasse 2 1180 Wien Tel: +43 1409 5897 E-Mail: austria@subal.com Construction & Engineering - Steyr Palais-Werndl Schönauerstr 7 4400 Steyr Tel: +43 7252 464 24 © 2015.
