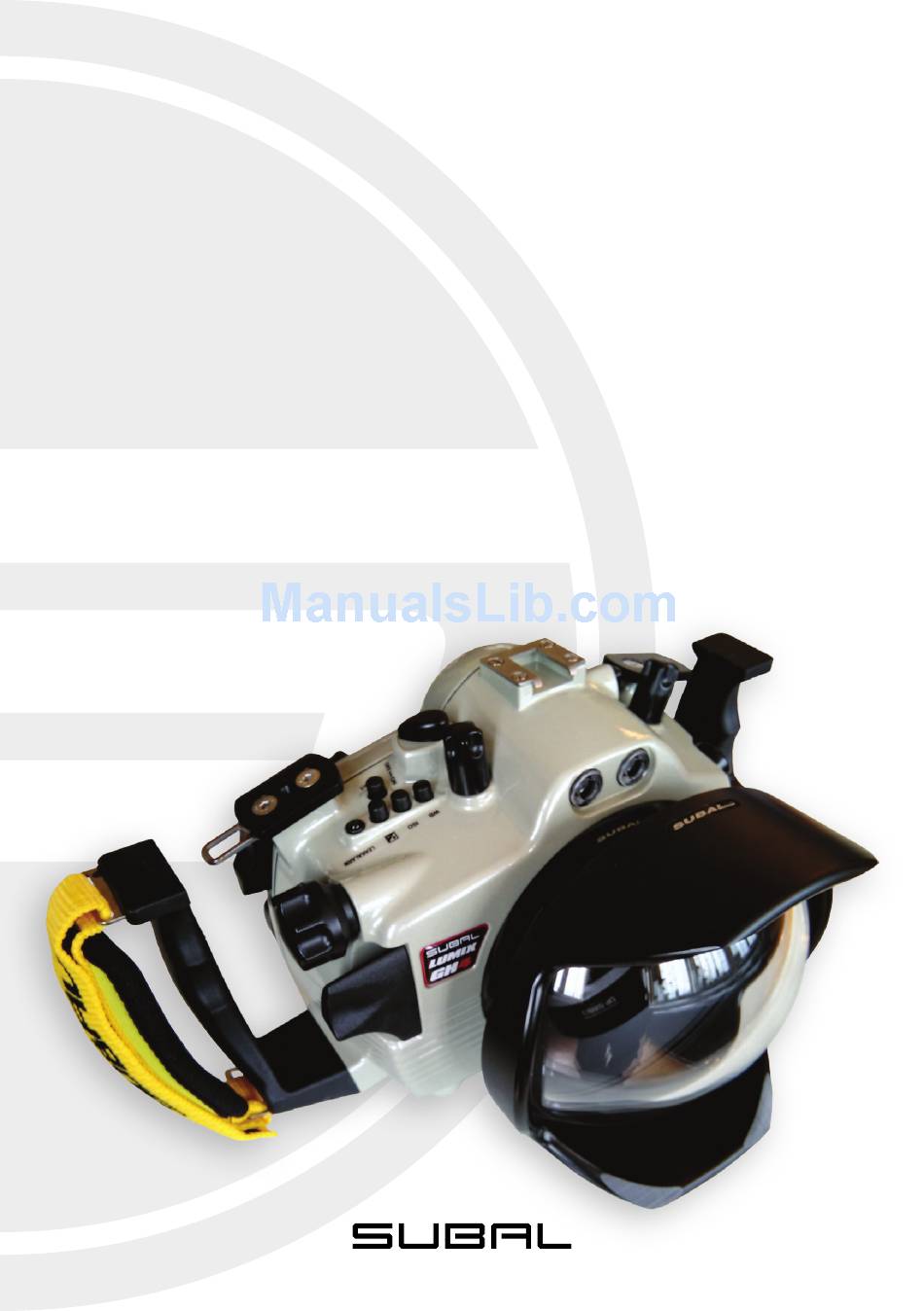

- Page 1 USER MANUAL PANASONIC SGH4 housing...
- Page 2 The result is that a large number of world-re- nowned underwater photographers uses SUBAL equipment. hope that you will take some of the memorable moments with your SUBAL!
-
Page 3: Table Of Contents
We congratulate you on your choice of the SUBAL SGH4 underwater housing for the Panasonic Lumix GH4. During the conception and design of the housing, considerable attention was directed towards the application of advantages and unique features of the state-of-the art Lumix camera technology, making them available to the underwater photographer. -
Page 4: Use And Maintainance Of O-Rings
The O-ring of the lid and especially also the front port O-ring should be regularly. removed. Please note that the especially soft quality of the original SUBAL O-ring ma- Only use original SUBAL-spare parts and SUBAL-accessories. terial looses elasticity prematurely if it is permanently compressed. So, if you... -
Page 5: Preparing The Lens
When rinsing the housing make sure the port is attached properly and flash sockets are sealed with plugs if no strobes are fitted. Remove the plastic protection foil of the camera’s monitor! The SUBAL Quicklock System locking levers are spring-loaded and require that they be depressed before rotating. PREPARING THE LENS To change the focal length on zoom lenses, or for manual focusing with fixed Do not forcefully turn the lever otherwise damage could occur. -
Page 6: Inserting The Camera
Fig. 10 Check now whether the lid fits Fig. 8 Fig. 9 correctly and whether the gap between the lid and the front part seems equally spaced all around! If the lid is lifted again after it was put on, the O-ring might be stuck on the lid and slide out of the groove. -
Page 7: The Interchangeable Port System
When using domeports for wide angle lenses, please note the following: The SUBAL SGH4 with port size 2 provides a port locking system. Press the port lock button to release the port lock. After mounting the port, it will lock •... -
Page 8: Changing A Lens
A wide range of perfected strobearms are available for the combination of a If illumination of the subject is insufficient to guarantee proper autofocus SUBAL SGH4 housing and strobes on the market (Sea & Sea, INON, etc.). operation, additional lighting has to be used (pilot light of flash unit, etc.) or the camera has to be switched over to manual focus. -
Page 9: Check-List
CHECK-LIST Repairs: • After ensuring that the main O-ring has been installed and the housing The unit must be returned freight prepaid to SUBAL Austria or any other closed properly, please check carefully ONCE AGAIN, whether: SUBAL partner. • The gap between the housing front and the lid seems equally spaced all around. -
Page 10: Front Housing Part Explode View
FRONT HOUSING PART EXPLODE VIEW... -
Page 11: Back Housing Part Explode View
BACK HOUSING PART EXPLODE VIEW... -
Page 12: Front Parts List
Ass GK Port Relise Button Ass SGH4 Wheel for AF-EF lock Aass-SGH4-Focus Mechanism SGH4 Monitor window (EK-SGH4-MW) ZylSchraube M3x5 DIN85 A4 (EK-1246267) SGH4 O ring for Monitor window 69,52 x 2,62 Ass - SGH4-On Off (EK-OR69,52 x 2,62) Ass - SGH4 Flash Off Ass-Standard-Sucheroptik... - Page 13 Subal GmbH Schulgasse 2 1180 Wien Tel: +43 1409 5897 E-Mail: austria@subal.com Construction & Engineering - Steyr Palais-Werndl Schönauerstr 7 4400 Steyr Tel: +43 7252 464 24 © 2015.
