Summary of Contents for Aspire Porto Zero Gravity

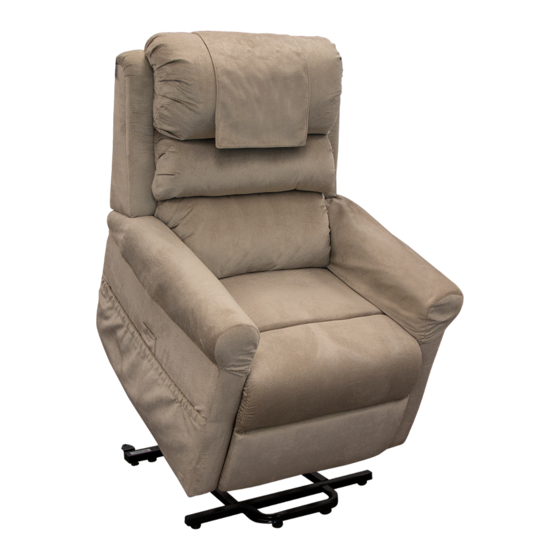

- Page 1 LIFT RECLINE CHAIRS Por to Zero Gravit y | Raphael | Verona | Maui | Montana | Oregon | Idaho | Signature | Matis se USER MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Lift Recline Series ______________________________ 4 Label Information ______________________________ 5 1. Introduction _________________________________ 6 • Safety • Purchaser’s Agreement • Information Agreement 2. General Guidelines __________________________ 7 • Modifications • Weight Limitations • Pinch / Crush Hazards • Degree of Protection / Mode of Operation •... -
Page 3: Label Information
ASPIRE ELECTRIC LIFT & RECLINE CHAIRS LABEL INFORMATION The symbols below are used throughout this owner’s manual and on the product to identify warnings PRODUCT SAFETY SYMBOLS and important information. It is very important for you to read them and understand them completely. -
Page 4: Introduction
By accepting delivery of this product, you promise that you will not change, alter or modify this product or remove or render inoperable or unsafe any guards, shields or other safety features of this product; fail, refuse or neglect to install any retrofit kits from time to time provided by Aspire to enhance or preserve MODIFICATIONS the safe use of this product. -
Page 5: Storage And Operation Temperatures
3. YOUR LIFT CHAIR STORAGE AND OPERATION TEMPERATURES BODY COMPONENTS This section describes the features of your lift chair. Carefully review the function and location of each • Transportation or storage: -75°C/-104°F to 70°C/158°F item described, and note that the illustrations and option locations shown in this manual may not reflect •... -
Page 6: Electrical Components
Figure 3.2 Scissor Mechanism ELECTRICAL COMPONENTS Your Aspire Lift Chair is equipped with a low voltage DC motor system that reduces the standard Scissor Mechanisms: Extend or retract to take the chair through the various stages of recline. household alternating current of 90V AC - 264V AC to direct current (24/39V DC). The electrical components include the external transformer, batteries and hand control. -
Page 7: Lift Chair Set-Up
4.1.1 Remove the packaging from the 4.1.2 Slide the left and right KD sleeves of the stop and contact your authorised Aspire Dealer immediately. To avoid personal injury and/or back portion of the chair and check that chair-back onto the KD connections on the arms product damage, do not plug the unit into the electrical outlet until the problem is corrected and the locking clip is in the vertical position. -
Page 8: Battery Installation
INSTALLING EXTERNAL LITHIUM-ION BATTERY PACK BATTERY INSTALLATION If your chair is equipped with an external transformer with a lithium-ion battery pack, your chair may be Your lift chair may be equipped with a battery backup system that will activate during a power failure. operated without being plugged into an electrical outlet for up to 48 hours. -
Page 9: Lift Chair Disassembly
SAFE OPERATING PRECAUTIONS The back rest of Aspire Lift Chairs can be removed to make service and transport of the chair more convenient. There are certain precautions that should be taken during the operation of your lift chair. Read and follow these precautions carefully in order to ensure safe lift chair operation and to prevent injury and/or product damage. -
Page 10: Single Action Chair Model
RF237E( HAND CONTROL OPERATION MULTI-ACTION - CHAIR MODEL Hand Control SINGLE ACTION - CHAIR MODEL PRESS & HOLD to initiate symbol for Oregon Lift Recliner RELEASE button to stop PRESS & HOLD to initiate symbol All functions RELEASE button to stop are the same however handset is different in... -
Page 11: Correct And Incorrect Use Guide
MULTI-ACTION - CHAIR MODEL CORRECT AND INCORRECT USE GUIDE DOS AND DO NOTS PRESS & HOLD to initiate symbol RELEASE button to stop SITTING Headrest (Backwards + Forwards) Lumbar Support (Extends + Retracts) Ascend & Retract ( Lifts + Retracts Leg/Backrest) Backrest (Backwards + Forwards) -
Page 12: Troubleshooting
DO NOTS 6. TROUBLESHOOTING Your Aspire Lift Chair is a state-of-the-art product designed to enhance your mobility. Your lift chair Misuse may injure the user, cause pressure and/or skin tear related issues, as well as should bring you years of trouble-free service, however, it may require occasional troubleshooting. The damage the product. -
Page 13: Care & Maintenance
7. CARE AND MAINTENANCE Your Aspire Lift Chair will require routine maintenance checks. You can perform some of these checks, but FABRIC AND UPHOLSTERY CARE CONTINUED... others may require assistance from an authorised Aspire Dealer. By following the maintenance checks in WARNING! Fabric should not be allowed to come in direct contact with any type of this section as scheduled, you can help ensure your lift chair gives you years of trouble-free operation. -
Page 14: Warranty
Maui 1130 130kg TWO-YEAR FABRIC WARRANTY “Fabric and Upholstery Care” instructions specific to your Aspire Recliner are located in the “Care and Montana Maintenance” section of this user manual. Failure to follow, protect and/or care for the upholstery/textile 1160 220kg in the intended way (refer to “Care and Maintenance”... - Page 15 Raphael (Small, Medium and Large) 130kg Raphael (Maxi) 180kg Montana 220kg Oregon/Idaho 150kg Signature Space Saver 145kg Signature Dual Action 155kg Matisse 159kg MANDATORY! Stay within the specified weight capacity of your lift chair. Exceeding the weight capacity voids Aspire Lift Chair warranty. aspirecare.com.au...
- Page 16 aspirecare.com.au...
- Page 17 AIDACARE PTY LTD Building 3A, 1 Moorebank Avenue, Moorebank NSW Australia 2170 1300 133 120 | aspirecare.com.au MADE IN PRC ASUM39.43 200722...
