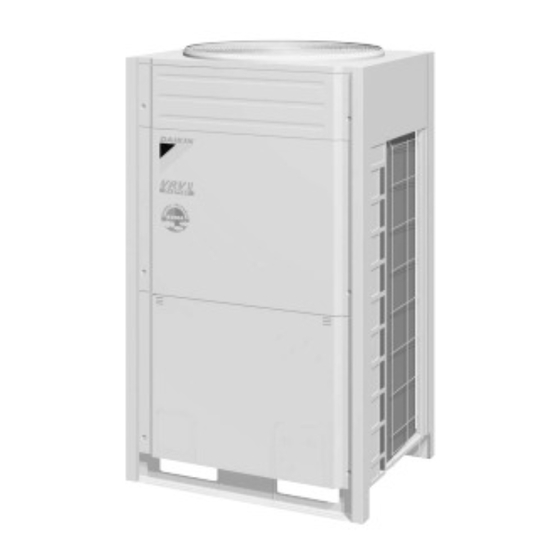

Daikin VRV Series Technical Data Manual

Outdoor units
Hide thumbs Also See for VRV Series:
Table of Contents

Advertisement

Quick Links

See also: Operation & Installation Manual , Installation Manual
• Outdoor Units • VRV HEAT PUMP • RXYHQ12-36P(8)

TABLE OF CONTENTS

RXYHQ12-36P(8)
