- Page 1 OCI625 Optical Fiber Identifier User Guide _ Version 1.0 Ascentac Inc. www.ascentac.com +886-7-398-1000 +886-7-398-3965 sales@ascentac.com...
- Page 2 Ascentac. Disclaimer Ascentac shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this user guide.
- Page 3 The label with S/N has been altered or damaged. Notice: Ascentac makes no warranty of any kind with regard to the content in this document, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
- Page 4 Service & Support If you have any questions or need any assistance, please contact our service center. Kaohsiung Office TEL: +886-7-398-1000 FAX: +886-7-398-3965 Address: 11F.-1, No.80, Minzu 1st Rd., Sanmin Dist., Kaohsiung City 80761, Taiwan (R.O.C.) Please prepare below information before you contact us and describe the problems.
-
Page 5: Table Of Contents
Content 1. Safety Information ........................1 2. Introduction ..........................2 Features ..........................3 Application ........................3 3. Layout ............................4 Appearance ........................4 Instruction .......................... 5 LED Indicator ........................5 4. Operation ........................... 6 Optical Fiber Identifier ..................... 6 Visual Fault Locator (VFL) ....................7... -
Page 6: Safety Information
Read all safety information carefully before using this product to ensure personal safety and proper use. Use batteries that meet the specifications of this product. Make sure the product is operated on the permitted ambient conditions. Never directly look into the optical outputs interface. 1 | OCI625... -
Page 7: Introduction
Its reliable and safe macro–bending technique does not disrupt service. Nor does it overstress or damage fibers. Ascentac OCI625 can identify a specific fiber from the route by transmitting a light source at wavelength 1310nm or 1550nm with signal 270Hz, 1KHz or 2KHz into one end of optical fiber during installation, maintenance, rerouting or restoration. -
Page 8: Features
Detecting a variety of optical tones (270Hz, 1kHz or 2kHz) Digital display of relative optical power Built-in 10mW VFL function Easy-to-use with one-touch operation 2.2 Application Telecom maintenance CATV maintenance Fiber-optic lab testing Other Fiber-optic measurements 3 | OCI625... -
Page 9: Layout

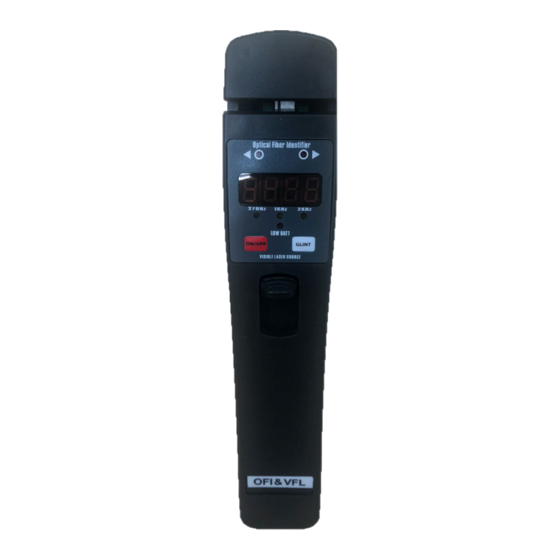

3. Layout 3.1 Appearance 4 | OCI625... -
Page 10: Instruction
Keys for turning on/off VFL & switching its modulation output Clamping button Optical interface for VFL 2 AA-size dry batteries 3.3 LED Indicator Item Description Signal direction (Left / Right) Signal type (270Hz, 1kHz or 2kHz) Low battery 5 | OCI625... -
Page 11: Operation
Insert the fiber-optic patch cord with traffic into the clamp groove and push the clamping button, and then the identifier will recognize the signal direction (Left / Right), modulation output (270Hz, 1kHz, 2kHz) and its relative value of optical power. 6 | OCI625... -
Page 12: Visual Fault Locator (Vfl)
4.2 Visual Fault Locator (VFL) Long press [ ] key to turn on or off Visual Fault Locator. Short press [ ] key to switch its modulation output. 7 | OCI625...
