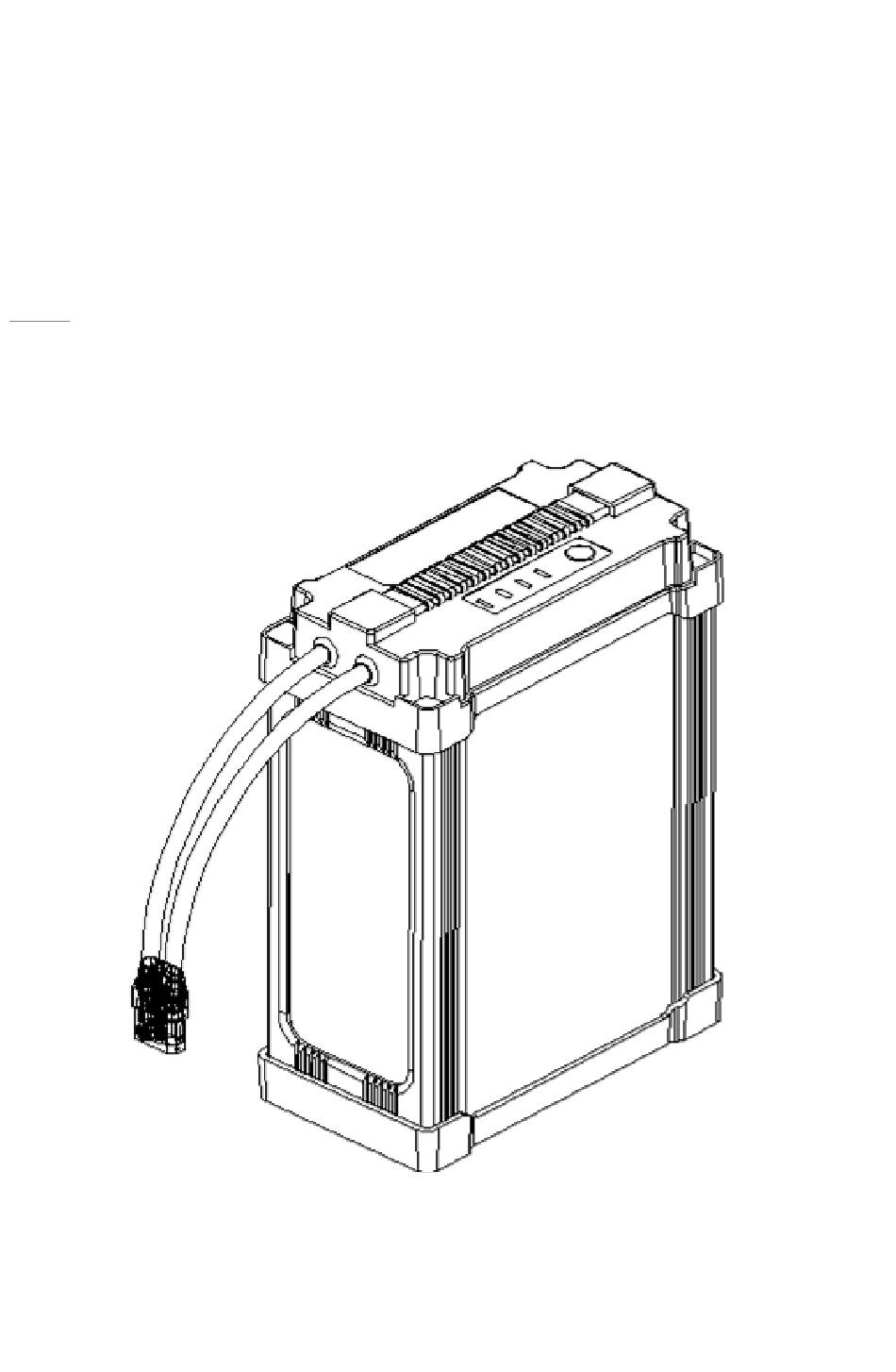

- Page 1 HY-12S16 电池 用户手册 UserManual V0.02017.09...
- Page 2 HY-12S16 UAV battery : 44.4V 16000mAh with monitoring function on charge and discharge . Adopting large capacity li-polymer cell and advanced battery management system , HY-12S16 is capable to supply abundant electricity to your UAV . 电池功能：Battery Functions : 1.电量显示：电池自带指示灯，可以显示电池当前电池电量。...
- Page 3 使用飞行电池 Using instruction 开启/关闭飞行电池 开启飞行电池：首先连接供电通信接口，然后连接 XT90 或 AS150 接口，电池将自动开 机供电。 Turn on the battery : 1 step – connect the power supply telecom port , 2 step – connect XT90 or AS150 port , the battery will start to supply the power automatically 关闭飞行电池：首先断开...
- Page 4 表示 LED 灯在指示过程中常亮 LED keeps on 表示 LED 灯在指示过程中有规律地闪亮 LED light is on a regular flash 表示 LED 灯熄灭 LED off 查看电池使用寿命 Rest lifespan check 电池寿命表示电池剩余的使用期限。开机状态，长按按键约 5S，4 个 LED 闪 3 次后指示 电量 2S，全灭 1S 后 LED 显示电池当前寿命。 It means the rest lifespan of the battery . Turn on the battery , press the button about 5 seconds , 4 LED lights flash 3 times and indicate battery power 2 seconds , wait and after all lights turned off for 1 seconds the LED will indicate the rest lifespan of the battery .
- Page 5 建议使用 1C（12A）充电（请勿超过 2C 充电）。 Suggest to charge the battery at 1C(12A)( no more than 2C ) 充电状态下轻触电池按键，电量指示灯将会循环闪烁，并指示当前电量。 Touch the battery button in the charge state slightly ,the battery indicator will be flashed and then indicate the current power. 飞行结束后电池温度较高，须待飞行电池降至 40℃再对飞行电池进行充电。 The battery temperature will be high after using, recharge the battery only if battery temperature dropped down to 40 degree 飞行电池最佳充电温度范围为...
- Page 6 电压高于 4.15V，继续报警，直到电压小于 4.15V 解除报警。 Over-voltage alarm when charging : in the charging process, when it detects any single voltage over 4.25V, buzzer alarm, LED2 flash; when the voltage is lower than 4.15V, the alarm is cleared, the LED is normal to indicate the power state. The alarm can be stopped by hand ;After turn on the battery if the voltage is still higher than 4.15V, the alarm will continue until the voltage is lower than 4.15V.
- Page 7 3.9V/cell) , warning will be released when all the cells voltage are higher than 3.72V . （2）LED 指示灯： LED1 闪烁 When LED1 flashes 短按按键查看电量或电池开机后，当检测到电芯压差过大或者电压过低时，LED1 闪 烁进行报警提醒； When short press the button to check the battery SOC or turn on the battery , if the voltage difference is too big or voltage is too low the LED1 will flash as a warning .
- Page 8 免电量过低导致过放或电量过高时导致电池组膨胀。 If the battery has to be stored for more than 10 days, make sure the battery power is between 50%~65 % to avoid over discharge under lower battery power and battery swelled under higher battery power. 技术参数 Technical Parameter 飞行电池组...
