Summary of Contents for Trion HERRMIDIFIER Herricane CS Series

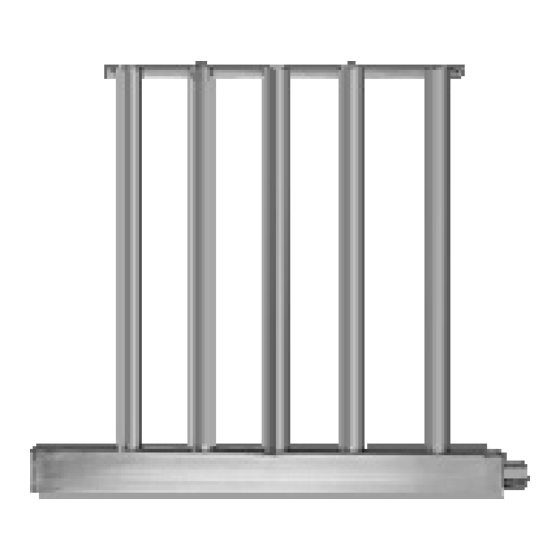

- Page 1 Herricane CS Series Application Guide Humidifiers T R I O N | w w w . t r i o n i a q . c o m ®...
-
Page 2: Table Of Contents
A p p l i c a t i o n G u i d e TABLE OF CONTENTS SECTION I GENERAL INFORMATION Table of Contents............................2 Warranty Information ............................3 SECTION II SYSTEM OVERVIEW Why choose the CS Series?........................... 4 Redefining Guaranteed Performance ...................... -
Page 3: Warranty Information
(MRA) number. Items tagged (on the outside of the box) is no visible steam and it is safe to install high-effeciency with this number may be returned to TRION/HERRMIDI- filters. TRION/HERRMIDIFIER has published evapora- FIER for replacement. Incidental expenses such as cost... -
Page 4: Section Ii System Overview
A p p l i c a t i o n G u i d e SECTION II SYSTEM OVERVIEW Why Choose the CS Series? The CS-Series offers a family of four different products custom sized to handle all of your steam distribution needs. The distribution system design has the following features that customers and engineers have told us they desire;... -
Page 5: Redefining Guaranteed Performance
A p p l i c a t i o n G u i d e SECTION II SYSTEM OVERVIEW Redefining Guaranteed Performance with the H.A.R.E. Using the proprietary H.A.R.E. (Humidified Air Research Environment) facility, HERRMIDIFIER engineers were able to accurately evaluate all potential humidification system variables - temperature, velocity, downstream relative humidity, and steam intensity. -
Page 6: Installation Guidelines
A p p l i c a t i o n G u i d e SECTION II SYSTEM OVERVIEW Installation Guidelines Steam absorption distance for a system is defined in terms of “bulk” and “last wisp”. “Bulk” evaporative distance is the distance beyond which condensation will not occur on objects at duct temperature. -
Page 7: Standard Parts Supplied With Humidifier
A p p l i c a t i o n G u i d e Parts Supplied with the Humidifier The HERRMIDIFIER CS Series steam distribution system is available in four basic configurations. As shown below, each of these systems include at a minimum a method of distributing steam, mounting provisions, a steam inlet connection, and a condensate drain(s) connection. - Page 8 A p p l i c a t i o n G u i d e CS-2105, CS-2106, CS-2107, CS-2108 Steam Distribution Systems Note: CS-2105 & CS-2106 are designed for Horizontal Airflow. CS-2107 & CS-2108 are designed for Vertical Airflow. CS-3110 Steam Distribution Systems Note: CS-3110 is designed for Horizontal Airflow.
- Page 9 A p p l i c a t i o n G u i d e CS-3113 Steam Distribution Systems Note: CS-3113 is designed for Horizontal Airflow. STEAM DISTRIBUTION TUBES STEAM NOZZLES SUPPORT BRACKET SUPPLY SEPARATOR/HEADER DUCT MOUNTING LUGS 1 1/2" FNPT STEAM INLET w w w.
- Page 10 A p p l i c a t i o n G u i d e CS-3115 Steam Distribution Systems Note: CS-3115 is designed for Horizontal Airflow. CS-3119 Steam Distribution Systems Note: CS-3119 is designed for Horizontal Airflow. H e r r i c a n e C S S e r i e s w w w.
- Page 11 A p p l i c a t i o n G u i d e CS-3112, CS-3117 Steam Distribution Systems Note: CS-3112 & CS-3117 is designed for Vertical Airflow. CS-4111, CS-4116 Steam Distribution Systems Note: CS-4111 & CS-4116 are designed for Vertical Installation in Horizontal Airflow. w w w.
-
Page 12: Optional Parts Supplied By Manufacturer Or Others
A p p l i c a t i o n G u i d e Optional Parts Supplied with Humidifier or Supplied by Others: Steam Valve Valve Actuator: Pneumatic, ON/OFF Electric, or Electric Modulating Actuators Inlet Strainer Supply Trap: F&T Trap or Inverted Bucket Trap Manifold Trap(s): Angle Thermostatic Trap, Vertical Thermostatic Trap, or F&T Trap Parts Supplied by Others (Unions and items shown in dashed lines) - Page 13 A p p l i c a t i o n G u i d e Optional Parts Supplied with Humidifier or Supplied by Others: Steam Valve Valve Actuator: Pneumatic, ON/OFF Electric, or Electric Modulating Actuators Inlet Strainer Supply Trap: F&T Trap or Inverted Bucket Trap Manifold Trap(s): Angle Thermostatic Trap, Vertical Thermostatic Trap, or F&T Trap Parts Supplied by Others (Unions and items shown in dashed lines)
- Page 14 A p p l i c a t i o n G u i d e CS-3110 Steam Distribution Systems H e r r i c a n e C S S e r i e s w w w. t r i o n i a q . c o m ®...
-
Page 15: Parts Supplied By The Installer
A p p l i c a t i o n G u i d e Parts Supplied by Others (Unions and items shown in dashed lines) CS-3115 Steam Distribution Systems CS-3119 Steam Distribution Systems w w w. t r i o n i a q . c o m H e r r i c a n e C S S e r i e s ®... - Page 16 A p p l i c a t i o n G u i d e Parts Supplied by Others (Unions and items shown in dashed lines) LPR vs Open Gravity Drain CS-3112, CS-3117 Steam Distribution Systems CS-4111, CS-4116 Steam Distribution Systems H e r r i c a n e C S S e r i e s w w w.
-
Page 17: Section Iii How To Select The Proper Cs Series
A p p l i c a t i o n G u i d e SECTION III HOW TO SELECT THE PROPER CS SERIES 1. Redefining Guaranteed Performance with the H.A.R.E. To properly select your new steam distribution system, some information is required initially. You will need to know the duct or air handler dimensions where the unit is to be installed, the capacity requirement, and what type of control and accessories will be used. -
Page 18: Determine The Correction Factor For Duct Temperature And Rh
A p p l i c a t i o n G u i d e SECTION III HOW TO SELECT THE PROPER CS SERIES We recommend a minimum of 6” downstream of an object for service and installation concerns. The only time 6” is insufficient would be on a VAV system which combines manifolds in the air handler and a very high steam intensity - which is a rare condition. -
Page 19: Determine The Steam Intensity
A p p l i c a t i o n G u i d e SECTION III HOW TO SELECT THE PROPER CS SERIES 4. “Correction Factor for Duct Temperature and Duct Relative Humidity The steam intensity is defined as the amount of steam in lb /hr to be distributed by a foot of evaporative tube. -
Page 20: Choosing The Proper Model And Accessories
25, the CS-3110 may be a possibility. It may be possible that the CS-3110 is more expensive than the CS-3115 or CS-3119 to achieve the save evaporative performance. Consult your TRION/ HERRMIDIFIER representative for a comparative analysis. -
Page 21: Steam Valve And Actuator
A p p l i c a t i o n G u i d e SECTION III HOW TO SELECT THE PROPER CS SERIES How to Select the Proper Accessories Steam Valve: Valves are available for all capacity requirements. At this time all valves are selected by the factory. To make the selection, we need to know capacity requirements, inlet steam pressure, and any special features required such as stainless steel construction. -
Page 22: Section Iv Performance Specifications
A p p l i c a t i o n G u i d e SECTION IV PERFORMANCE AND SPECIFICATIONS Central Steam Comparative Noise Levels Background: A standard HERRMIDIFIER single tube manifold (CS-1105) was compared to competitive units (one jacketed with steam nozzle, the other jacketed with silencing media and holes for steam discharge). -
Page 23: Size And Weight
A p p l i c a t i o n G u i d e SECTION IV PERFORMANCE AND SPECIFICATIONS 1. Size and Weight Model Number Weight Calculation Examples 1’ Wide 3’ Wide 6’ Wide CS-1100,1101,1102,1103 0.87 x distribution tube length (in feet) + 1.65 2.52 lb 4.26 lb 6.87 lb... -
Page 24: Heat Gain And Temperature Rise
A p p l i c a t i o n G u i d e SECTION IV PERFORMANCE AND SPECIFICATIONS Heat Gain and Temperature Rise Heat gain, and the resulting temperature rise, of the air flow is caused by two sources: Heat transfer from the steam distribution manifolds - considered Efficiency. - Page 25 A p p l i c a t i o n G u i d e SECTION IV PERFORMANCE AND SPECIFICATIONS HEAT GAIN FROM HUMIDIFIER PER FOOT OF MANIFOLD Btu/hr-ft (f) Upstream VELOCITY, fpm Duct Temp, F 1000 1250 1500 1750 2000 606.3...
- Page 26 A p p l i c a t i o n G u i d e SECTION IV PERFORMANCE AND SPECIFICATIONS Basic Formulas x = (f)(l) s = [m(OUT)](u) h = x + s n = [m(OUT)]/[m(IN)] m = (OUT) = m(IN) - m(LIQ) m(LIQ = x/966.2Btu/lbmH ∆T = [(h)(v)]/[(Q)(C EXAMPLE:...
-
Page 27: Section V Cs Distribution W/ Self-Generating Steam Source
A p p l i c a t i o n G u i d e SECTION V SELF-GENERATING STEAM AS THE SOURCE The use of a low pressure source of steam, such as a self-contained electrode boiler requires some special installation considerations with regard to duct air velocity, duct static pressure and interconnecting plumbing between the steam generating unit and the steam distribution system. -
Page 28: Section Vi Typical Specifications
A p p l i c a t i o n G u i d e SECTION VI TYPICAL SPECIFICATIONS Suggested Specifications for HERRMIDIFIER Herricane CS Series Central Steam Distribution System 15781 Humidifiers Part 1 General A. Scope Furnish a system of humidification indicated on the drawings complete with: •... - Page 29 It shall be the responsibility of the installing contractor to furnish necessary control provisions, wiring, and plumbing as indicated in the manufacturer’s specifications and the appropriate schedules. All wiring shall be done in accordance with the applicable sections of electrical specifications and local codes. Manufacturer: TRION/HERRMIDIFIER 101 McNeill Road Sanford, NC 27332 www.trioniaq.com w w w.
- Page 30 TRION ® 101 McNeill Rd. | Sanford, NC 27330 P: 800.884.0002 | F: 800.458.2379 | www.trioniaq.com | customerservice@trioniaq.com Form No. OM-215 Rev. 01/18 © 2018 TRION. All Rights Reserved.
